Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

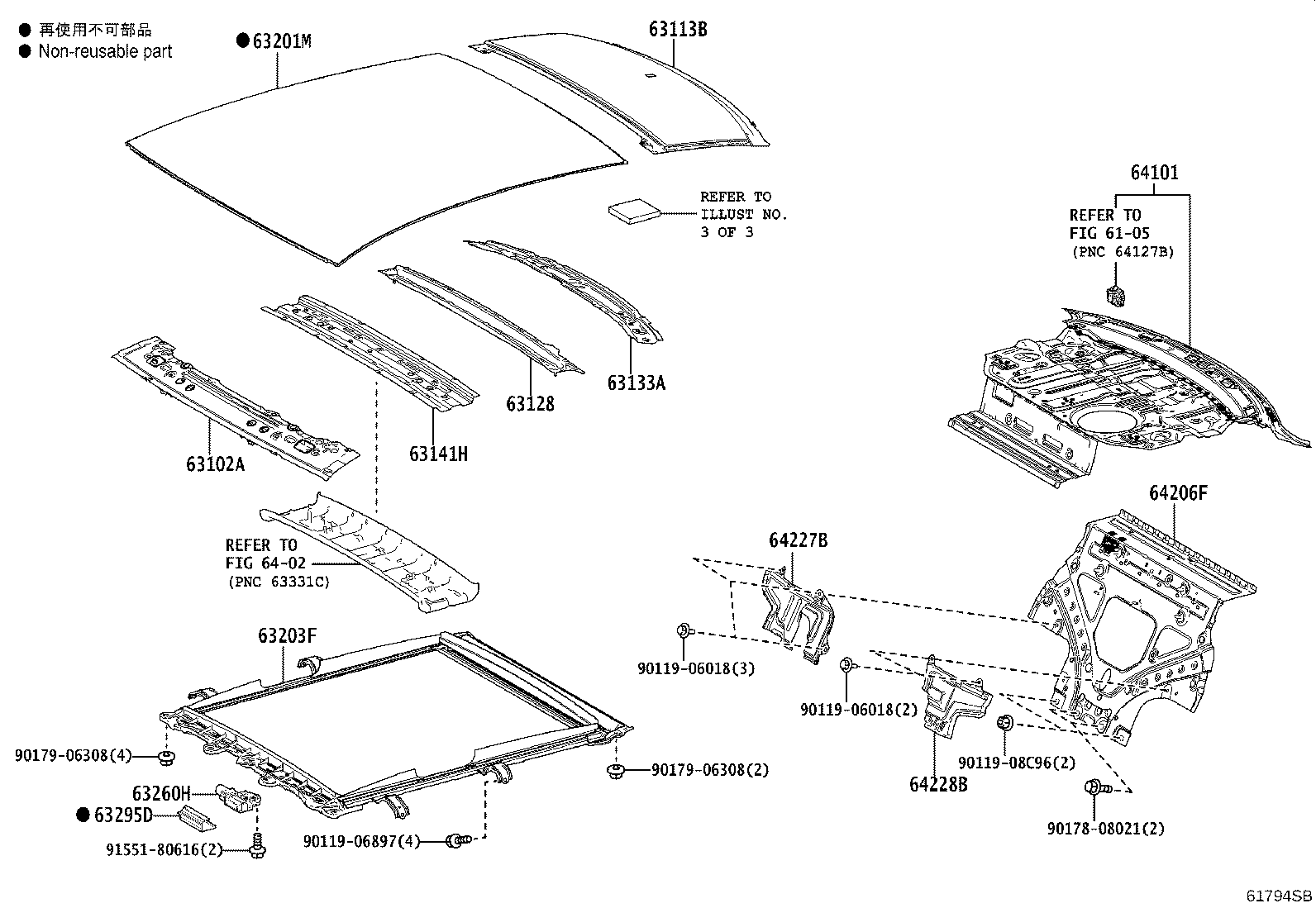

Exploded illustration 61794SB 63203F — HOUSING SUB-ASSY, SLIDING ROOF (1 parts) 9011908C96 — not listed in this catalogue 9017808021 — not listed in this catalogue 63133A — FRAME, BACK WINDOW, UPPER (1 parts) 63141H — REINFORCEMENT, ROOF PANEL, CENTER (1 parts) 64101 — PANEL SUB-ASSY, UPPER BACK (1 parts) 6105 — not listed in this catalogue 64206F — PANEL SUB-ASSY, ROOM PARTITION (1 parts) 9011906018 — not listed in this catalogue 9011906018 — not listed in this catalogue 64227B — EXTENSION, CENTER FLOOR TO BLACE, NO.1 (1 parts) 64228B — EXTENSION, CENTER FLOOR TO BRACE, NO.2 (1 parts) 63113B — PANEL, ROOF, REAR (1 parts) 63128 — REINFORCEMENT, ROOF PANEL, NO.6 (1 parts) 63201M — GLASS SUB-ASSY, ROOF WINDOW, NO.1 (1 parts) 6402 — not listed in this catalogue 63260H — GEAR ASSY, SLIDING ROOF DRIVE (1 parts) 63295D — PAD, SLIDING ROOF HOUSING (1 parts) 9017906308 — not listed in this catalogue 9017906308 — not listed in this catalogue 9011906897 — not listed in this catalogue 9155180616 — not listed in this catalogue 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (2 parts)
61794SB · 13 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
14 parts on this figure
Part number Description Fitment Price
63102A — Panel Sub-assy, Windshield Header
63102-62030 note Panel Sub-assy, Windshield Header
2023-11 → —
AZSH32,KZSM30 Z ¥7,800
63102-62901 Panel Sub-assy, Windshield Header
2023-11 → —
AZSH32,KZSM30 ¥7,100
63113B — Panel, Roof, Rear
63113-30030 note Panel, Roof, Rear
2023-11 → —
AZSH32,KZSM30 Z ¥15,200
63128 — Reinforcement, Roof Panel, NO.6
63128-30180 note Reinforcement, Roof Panel, NO.6
2023-11 → —
AZSH32,KZSM30 Z ¥3,070
63133A — Frame, Back Window, Upper
63133-30360 Frame, Back Window, Upper
2023-11 → —
AZSH32,KZSM30 ¥3,240
63141H — Reinforcement, Roof Panel, Center
63141-62020 Reinforcement, Roof Panel, Center
2023-11 → —
AZSH32,KZSM30 ¥7,300
63201M — Glass Sub-assy, Roof Window, NO.1
63201-30260 note Glass Sub-assy, Roof Window, NO.1
2023-11 → —
AZSH32,KZSM30 Z —
63203F — Housing Sub-assy, Sliding Roof
63203-30271-C1 note Housing Sub-assy, Sliding Roof
2023-11 → —
AZSH32,KZSM30 Z ¥61,500
63260H — Gear Assy, Sliding Roof Drive
63260-30270 note Gear Assy, Sliding Roof Drive
2023-11 → —
AZSH32,KZSM30 Z ¥29,500
63295D — Pad, Sliding Roof Housing
63295-50010 note Pad, Sliding Roof Housing
2023-11 → —
AZSH32,KZSM30 Z ¥2,100
64101 — Panel Sub-assy, Upper Back
64101-30B60 Panel Sub-assy, Upper Back
2023-11 → —
AZSH32,KZSM30 ¥17,600
64206F — Panel Sub-assy, Room Partition
64206-30190 Panel Sub-assy, Room Partition
2023-11 → —
AZSH32,KZSM30 ¥7,900
64227B — Extension, Center Floor TO Blace, NO.1
64227-62010 Extension, Center Floor TO Blace, NO.1
2023-11 → —
AZSH32,KZSM30 ¥1,430
64228B — Extension, Center Floor TO Brace, NO.2
64228-62010 Extension, Center Floor TO Brace, NO.2
2023-11 → —
AZSH32,KZSM30 ¥1,150
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
