Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

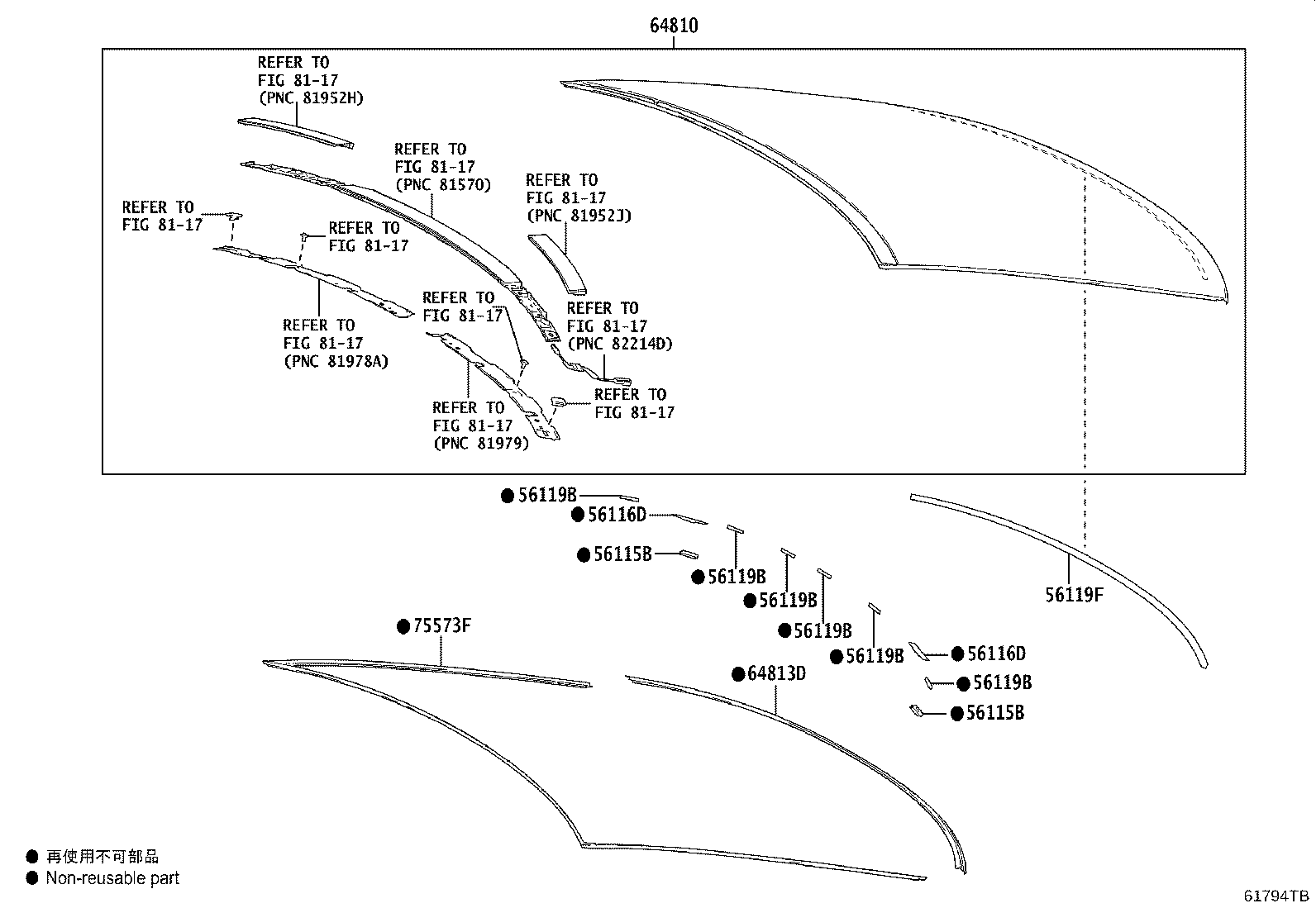

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 56115B — Stopper, Back Window Glass, NO.1 | ||||
| 56115-30120 |
Stopper, Back Window Glass, NO.1
2023-11 → —
|
AZSH32,KZSM30 | ¥130 | |
| 56116D — Stopper, Back Window Glass, NO.2 | ||||
| 56116-22050 |
Stopper, Back Window Glass, NO.2
2023-11 → —
|
AZSH32,KZSM30 | ¥120 | |
| 56119B — Dam, Back Window Glass Adhesive | ||||
| 56117-24070 |
Dam, Back Window Glass Adhesive
2023-11 → —
|
AZSH32,KZSM30 | ¥130 | |
| 56119F — Seal, Windshield Glass | ||||
| 56119-30090 |
Seal, Windshield Glass
2023-11 → —
|
AZSH32,KZSM30 | ¥680 | |
| 64810 — Window Assy, Back | ||||
| 64810-30900 |
Window Assy, Back
2023-11 → —
|
AZSH32,KZSM30 | — | |
| 64813D — Dam, Back Window Glass Adhesive | ||||
| 64813-30270 |
Dam, Back Window Glass Adhesive
2023-11 → —
|
AZSH32,KZSM30 | ¥1,030 | |
| 75573F — Moulding, Back Window, Outside | ||||
| 75573-30430 |
Moulding, Back Window, Outside
2023-11 → —
|
AZSH32,KZSM30 | ¥1,660 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
