Exploded illustration 64589K 9046710161 — not listed in this catalogue 9046710161 — not listed in this catalogue 6104 — not listed in this catalogue 6104 — not listed in this catalogue 6104 — not listed in this catalogue 8401 — not listed in this catalogue 6104 — not listed in this catalogue 6104 — not listed in this catalogue 6104 — not listed in this catalogue 6104 — not listed in this catalogue 8401 — not listed in this catalogue 42680 — CASE ASSY, TIRE REPAIR KIT (1 parts) 58387 — PLATE, REAR FLOOR FINISH (2 parts) 64075B — COVER, LUGGAGE COMPARTMENT TRIM, FRONT (3 parts) 64271E — PANEL, ROOM PARTITION (1 parts) 64273B — CLIP (1 parts) 64273B — CLIP (1 parts) 64273D — PAD, ROOM PARTITION, NO.1 (1 parts) 64350A — SHADE ASSY, REAR WINDOW (1 parts) 75201E — CLIP, TOOL BOX SUB-ASSY, NO.2 (2 parts) 75201D — CLIP, TOOL BOX SUB-ASSY, NO.1 (3 parts) 64701 — MAT SUB-ASSY, LUGGAGE COMPARTMENT (3 parts) 64721H — CLIP(LUGGAGE COMPARTMENT) (2 parts) 64721H — CLIP(LUGGAGE COMPARTMENT) (2 parts) 64721H — CLIP(LUGGAGE COMPARTMENT) (2 parts) 64721H — CLIP(LUGGAGE COMPARTMENT) (2 parts) 64075C — CLIP, LUGGAGE COMPARTMENT TRIM COVER (2 parts) 64715D — COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH (3 parts) 64717B — CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) (1 parts) 64713K — COVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER (2 parts) 64718B — COVER, LUGGAGE TRIM SERVICE HOLE (1 parts) 64719A — COVER, LUGGAGE COMPARTMENT DOOR (2 parts) 64721 — COVER, LUGGAGE COMPARTMENT TRIM, INNER RH (3 parts) 64722 — COVER, LUGGAGE COMPARTMENT TRIM, INNER LH (3 parts) 64725D — HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 (1 parts) 64727A — PAD, LUGGAGE COMPARTMENT TRIM, INNER (1 parts) 74649 — GRIP, LUGGAGE COMPARTMENT DOOR ASSIST (2 parts) 75201A — BOX, TOOL (2 parts) 85536C — BEZEL, POWER OUTLET SOCKET (2 parts) 9010506344 — not listed in this catalogue 9011906767 — not listed in this catalogue 9015960350 — not listed in this catalogue 9017806018 — not listed in this catalogue 9046706211 — not listed in this catalogue 9046705145 — not listed in this catalogue 64330 — PANEL ASSY, PACKAGE TRAY TRIM (2 parts) 64342C — CLIP(FOR COVER, PACKAGE TRAY TRIM, UNDER) (1 parts) 64340B — PANEL ASSY, PACKAGE TRAY TRIM, NO.2 (1 parts) 64719B — CLIP(FOR LUGGAGE COMPARTMENT DOOR) (2 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue 64330A — CLIP(FOR PACKAGE TRAY TRIM PANEL) (1 parts)

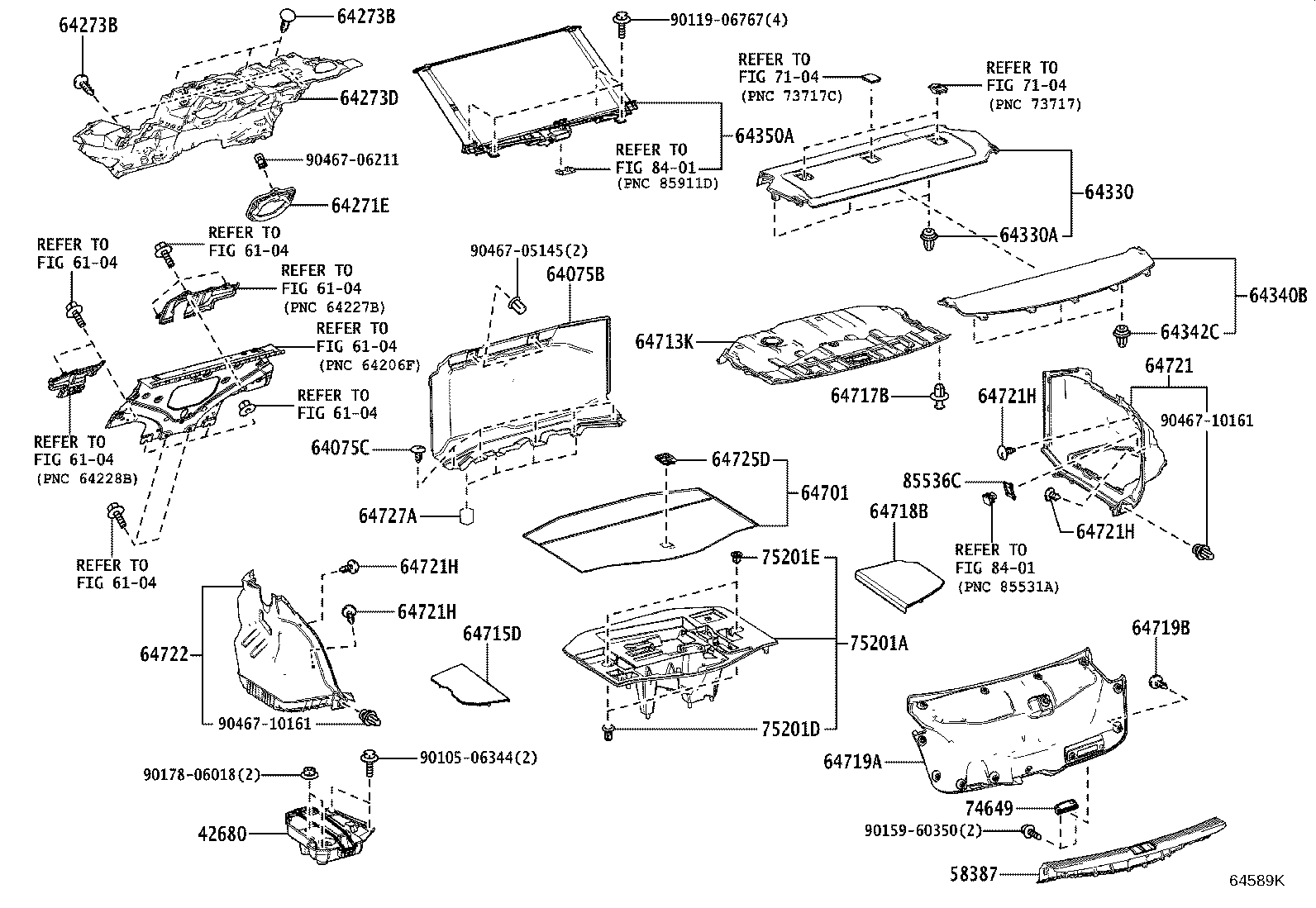

64589K · 33 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
42680 — Case Assy, Tire Repair Kit
42680-62010 Case Assy, Tire Repair Kit
2023-11 → —
KZSM30 ¥5,400
58387 — Plate, Rear Floor Finish
58387-30280-C0 note Plate, Rear Floor Finish
2023-11 → —
AZSH32,KZSM30 Z ¥5,500
58387-30280-C0 note Plate, Rear Floor Finish
2023-11 → —
AZSH32 G ¥5,500
64075B — Cover, Luggage Compartment Trim, Front
64075-30460-C0 note Cover, Luggage Compartment Trim, Front
2023-11 → —
KZSM30 ¥9,200
64075-30470-C0 note Cover, Luggage Compartment Trim, Front
2023-11 → —
AZSH32 G ¥9,200
64075-30470-C0 note Cover, Luggage Compartment Trim, Front
2023-11 → —
AZSH32 Z ¥9,200
64075C — Clip, Luggage Compartment Trim Cover
90467-08186-C3 note Clip, Luggage Compartment Trim Cover
2023-11 → —
AZSH32,KZSM30 Z ¥70
90467-08186-C3 note Clip, Luggage Compartment Trim Cover
2023-11 → —
AZSH32 G ¥70
64271E — Panel, Room Partition
64298-62010 Panel, Room Partition
2023-11 → —
AZSH32,KZSM30 ¥1,980
64273B — Clip
90467-05164-B8 note Clip
2023-11 → —
AZSH32,KZSM30 ¥60
64273D — Pad, Room Partition, NO.1
64273-30270 Pad, Room Partition, NO.1
2023-11 → —
AZSH32,KZSM30 ¥6,000
64330 — Panel Assy, Package Tray Trim
64330-30K40-C0 note Panel Assy, Package Tray Trim
2023-11 → —
AZSH32 G ¥15,700
64330-30K70-C0 note Panel Assy, Package Tray Trim
2023-11 → —
AZSH32,KZSM30 Z ¥14,000
64330A — Clip(FOR PACKAGE TRAY TRIM PANEL)
90467-10161 Clip(FOR PACKAGE TRAY TRIM PANEL)
2023-11 → —
AZSH32,KZSM30 ¥90
64340B — Panel Assy, Package Tray Trim, NO.2
64340-30210-C0 note Panel Assy, Package Tray Trim, NO.2
2023-11 → —
AZSH32,KZSM30 Z ¥5,800
64342C — Clip(FOR COVER, PACKAGE TRAY TRIM, UNDER)
90467-10161 Clip(FOR COVER, PACKAGE TRAY TRIM, UNDER)
2023-11 → —
AZSH32,KZSM30 Z ¥90
64350A — Shade Assy, Rear Window
64350-62010 Shade Assy, Rear Window
2023-11 → —
AZSH32,KZSM30 Z ¥58,900
64701 — Mat Sub-assy, Luggage Compartment
64701-30220-C0 note Mat Sub-assy, Luggage Compartment
2023-11 → —
KZSM30 ¥8,400
64701-30230-C0 note Mat Sub-assy, Luggage Compartment
2023-11 → —
AZSH32 G ¥8,700
64701-30230-C0 note Mat Sub-assy, Luggage Compartment
2023-11 → —
AZSH32 Z ¥8,700
64713K — Cover, Luggage Compartment Trim, Front Upper
64713-30250-C0 note Cover, Luggage Compartment Trim, Front Upper
2023-11 → —
AZSH32,KZSM30 Z ¥10,300
64713-30250-C0 note Cover, Luggage Compartment Trim, Front Upper
2023-11 → —
AZSH32 G ¥10,300
64715D — Cover, Luggage Compartment Trim, Side, LH
64715-30410-C0 note Cover, Luggage Compartment Trim, Side, LH
2023-11 → —
AZSH32 G ¥3,720
64715-30410-C0 note Cover, Luggage Compartment Trim, Side, LH
2023-11 → —
AZSH32 Z ¥3,720
64715-62010-C0 note Cover, Luggage Compartment Trim, Side, LH
2023-11 → —
KZSM30 ¥3,720
64717B — Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
90467-07214 Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
2023-11 → —
AZSH32,KZSM30 ¥70
64718B — Cover, Luggage Trim Service Hole
64718-62020-C0 note Cover, Luggage Trim Service Hole
2023-11 → —
KZSM30 ¥6,000
64719A — Cover, Luggage Compartment Door
64719-30530-C0 note Cover, Luggage Compartment Door
2023-11 → —
AZSH32 G ¥7,300
64719-30530-C0 note Cover, Luggage Compartment Door
2023-11 → —
AZSH32,KZSM30 Z ¥7,300
64719B — Clip(FOR LUGGAGE COMPARTMENT DOOR)
90467-08186-C3 note Clip(FOR LUGGAGE COMPARTMENT DOOR)
2023-11 → —
AZSH32,KZSM30 Z ¥70
90467-08186-C3 note Clip(FOR LUGGAGE COMPARTMENT DOOR)
2023-11 → —
AZSH32 G ¥70
64721 — Cover, Luggage Compartment Trim, Inner RH
64721-30370-C0 note Cover, Luggage Compartment Trim, Inner RH
2023-11 → —
KZSM30 ¥9,300
64721-30380-C0 note Cover, Luggage Compartment Trim, Inner RH
2023-11 → —
AZSH32 G ¥12,500
64721-30380-C0 note Cover, Luggage Compartment Trim, Inner RH
2023-11 → —
AZSH32 Z ¥12,500
64721H — Clip(LUGGAGE COMPARTMENT)
90467-08186-C3 note Clip(LUGGAGE COMPARTMENT)
2023-11 → —
AZSH32,KZSM30 Z ¥70
90467-08186-C3 note Clip(LUGGAGE COMPARTMENT)
2023-11 → —
AZSH32 G ¥70
64722 — Cover, Luggage Compartment Trim, Inner LH
64722-30340-C0 note Cover, Luggage Compartment Trim, Inner LH
2023-11 → —
KZSM30 ¥10,300
64722-30350-C0 note Cover, Luggage Compartment Trim, Inner LH
2023-11 → —
AZSH32 G ¥10,300
64722-30350-C0 note Cover, Luggage Compartment Trim, Inner LH
2023-11 → —
AZSH32 Z ¥10,300
64725D — Hook, Luggage Compartment Trim, NO.1
64725-33100 Hook, Luggage Compartment Trim, NO.1
2023-11 → —
AZSH32,KZSM30 ¥770
64727A — Pad, Luggage Compartment Trim, Inner
64727-62010 Pad, Luggage Compartment Trim, Inner
2023-11 → —
KZSM30 ¥730
74649 — Grip, Luggage Compartment Door Assist
74649-51010-C3 note Grip, Luggage Compartment Door Assist
2023-11 → —
AZSH32,KZSM30 Z ¥880
74649-51010-C3 note Grip, Luggage Compartment Door Assist
2023-11 → —
AZSH32 G ¥880
75201A — Box, Tool
75201-30190 Box, Tool
2023-11 → —
KZSM30 ¥14,600
75201-30200 Box, Tool
2023-11 → —
AZSH32 ¥14,600
75201D — Clip, Tool Box Sub-assy, NO.1
90467-08186-C3 note Clip, Tool Box Sub-assy, NO.1
2023-11 → —
AZSH32 G ¥70
90467-08186-C3 note Clip, Tool Box Sub-assy, NO.1
2023-11 → —
AZSH32 Z ¥70
90467-17026-A0 note Clip, Tool Box Sub-assy, NO.1
2023-11 → —
KZSM30 ¥100
75201E — Clip, Tool Box Sub-assy, NO.2
90467-05171 Clip, Tool Box Sub-assy, NO.2
2023-11 → —
AZSH32 ¥60
90467-17027-C0 note Clip, Tool Box Sub-assy, NO.2
2023-11 → —
KZSM30 ¥120
85536C — Bezel, Power Outlet Socket
85536-30010-C0 note Bezel, Power Outlet Socket
2023-11 → —
AZSH32,KZSM30 Z ¥490
85536-30010-C0 note Bezel, Power Outlet Socket
2023-11 → —
AZSH32 G ¥490
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
