Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11

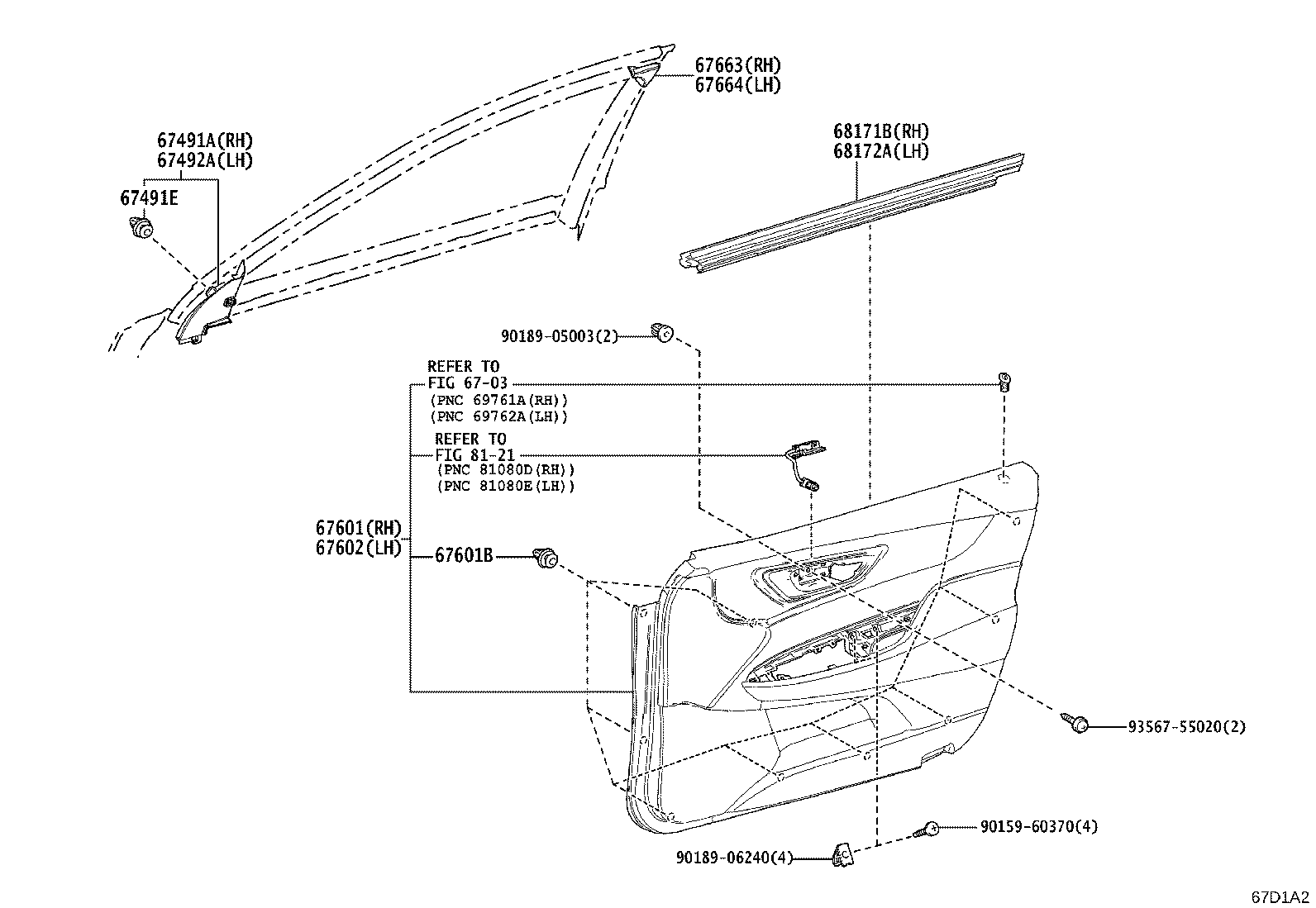

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

12 parts on this figure

Part number	Description	Fitment	Price
67491A — Garnish, Front Door Lower Frame Bracket, RH
67491-30180	Garnish, Front Door Lower Frame Bracket, RH 2023-11 → —	AZSH32,KZSM30	¥1,020
67491E — Retainer, Door Trim
67771-26240	Retainer, Door Trim 2023-11 → —	AZSH32,KZSM30	¥120
67492A — Garnish, Front Door Lower Frame Bracket, LH
67492-30180	Garnish, Front Door Lower Frame Bracket, LH 2023-11 → —	AZSH32,KZSM30	¥1,020
67601 — Board Sub-assy, Front Door Trim, RH
67610-30M40-C6 note	Board Sub-assy, Front Door Trim, RH 2023-11 → —	AZSH32,KZSM30	¥57,100
67610-30M40-C7 note	Board Sub-assy, Front Door Trim, RH 2023-11 → —	AZSH32,KZSM30 Z	¥57,100
67601B — Clip(FOR FRONT DOOR TRIM BOARD)
90467-09206	Clip(FOR FRONT DOOR TRIM BOARD) 2023-11 → —	AZSH32,KZSM30	¥80
67602 — Board Sub-assy, Front Door Trim, LH
67620-30S20-C6 note	Board Sub-assy, Front Door Trim, LH 2023-11 → —	AZSH32,KZSM30	¥53,800
67620-30S20-C7 note	Board Sub-assy, Front Door Trim, LH 2023-11 → —	AZSH32,KZSM30 Z	¥53,800
67663 — Garnish, Door Frame, Upper RH
67663-62030	Garnish, Door Frame, Upper RH 2023-11 → —	AZSH32,KZSM30	¥330
67664 — Garnish, Door Frame, Upper LH
67664-62030	Garnish, Door Frame, Upper LH 2023-11 → —	AZSH32,KZSM30	¥330
68171B — Weatherstrip, Front Door Glass, Inner RH
68171-30220	Weatherstrip, Front Door Glass, Inner RH 2023-11 → —	AZSH32,KZSM30	¥4,180
68172A — Weatherstrip, Front Door Glass, Inner LH
68172-30190	Weatherstrip, Front Door Glass, Inner LH 2023-11 → —	AZSH32,KZSM30	¥4,180

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
