Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

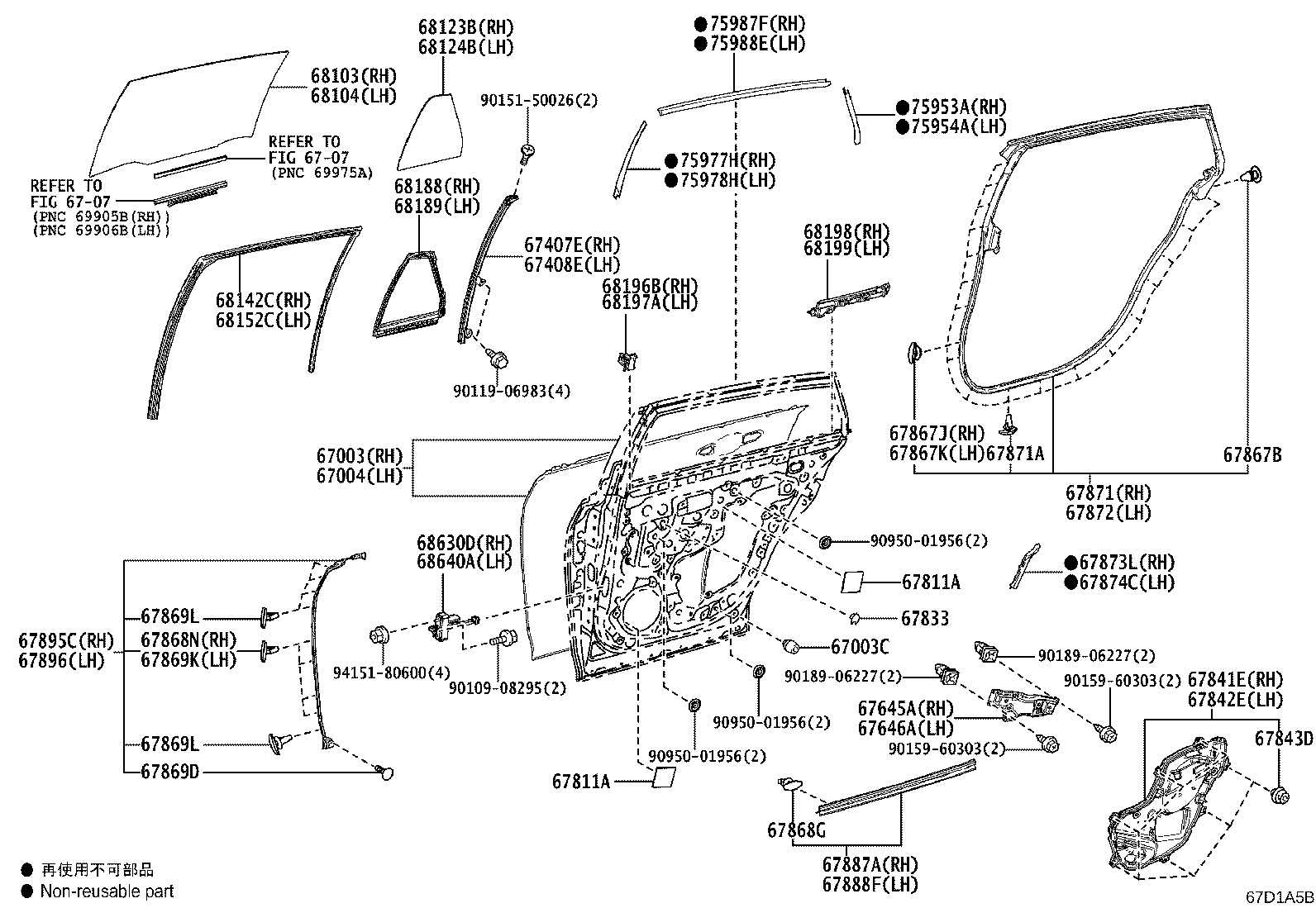

Exploded illustration 67D1A5B 67003 — PANEL SUB-ASSY, REAR DOOR, RH (2 parts) 67004 — PANEL SUB-ASSY, REAR DOOR, LH (2 parts) 67407E — BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH (1 parts) 67408E — BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH (1 parts) 68188 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH (1 parts) 68189 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH (1 parts) 68123B — GLASS, REAR DOOR QUARTER WINDOW, RH (1 parts) 68124B — GLASS, REAR DOOR QUARTER WINDOW, LH (1 parts) 9011906983 — not listed in this catalogue 67871A — RETAINER(FOR REAR DOOR WEATHERSTRIP) (1 parts) 67867B — CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) (1 parts) 67871 — WEATHERSTRIP, REAR DOOR, RH (1 parts) 67872 — WEATHERSTRIP, REAR DOOR, LH (1 parts) 67867J — CLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR) (1 parts) 67867K — CLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR) (1 parts) 67895C — WEATHERSTRIP, REAR DOOR, NO.3 RH (1 parts) 67896 — WEATHERSTRIP, REAR DOOR, NO.3 LH (1 parts) 67868N — CLIP, DOOR WEATHERSTRIP, RH (1 parts) 67869K — CLIP, DOOR WEATHERSTRIP, LH (1 parts) 67645A — BRACKET, REAR DOOR ARMREST SET, RH (1 parts) 67646A — BRACKET, REAR DOOR ARMREST SET, LH (1 parts) 67869L — CLIP, REAR DOOR WEATHERSTRIP (1 parts) 67869L — CLIP, REAR DOOR WEATHERSTRIP (1 parts) 67811A — PAD, REAR DOOR SILENCER (1 parts) 67811A — PAD, REAR DOOR SILENCER (1 parts) 67841E — COVER, REAR DOOR SERVICE HOLE, RH (1 parts) 67842E — COVER, REAR DOOR SERVICE HOLE, LH (1 parts) 67843D — CLIP, REAR DOOR SERVICE HOLE (1 parts) 67003C — CUSHION, REAR DOOR PANEL (1 parts) 9095001956 — not listed in this catalogue 9095001956 — not listed in this catalogue 9095001956 — not listed in this catalogue 68103 — GLASS SUB-ASSY, REAR DOOR, RH (1 parts) 68104 — GLASS SUB-ASSY, REAR DOOR, LH (1 parts) 68142C — RUN, REAR DOOR GLASS, RH (1 parts) 68152C — RUN, REAR DOOR GLASS, LH (1 parts) 75953A — TAPE, BLACK OUT, INNER REAR RH (1 parts) 75954A — TAPE, BLACK OUT, INNER REAR LH (1 parts) 75977H — STRIPE, REAR DOOR OUTSIDE, LOWER RH (1 parts) 75978H — STRIPE, REAR DOOR OUTSIDE, LOWER LH (1 parts) 75987F — STRIPE, REAR DOOR, OUTSIDE, RH (2 parts) 75988E — STRIPE, REAR DOOR, OUTSIDE LH (2 parts) 68198 — SEAL, REAR DOOR BELT, REAR RH (1 parts) 68199 — SEAL, REAR DOOR BELT, REAR LH (1 parts) 68196B — SEAL, REAR DOOR BELT, FRONT RH (1 parts) 68197A — SEAL, REAR DOOR BELT, FRONT LH (1 parts) 9015960303 — not listed in this catalogue 9018906227 — not listed in this catalogue 9015960303 — not listed in this catalogue 9018906227 — not listed in this catalogue 67873L — WEATHERSTRIP, REAR DOOR, NO.5 RH (1 parts) 67874C — WEATHERSTRIP, REAR DOOR, NO.5 LH (1 parts) 67887A — WEATHERSTRIP, REAR DOOR, NO.2 RH (1 parts) 67888F — WEATHERSTRIP, REAR DOOR, NO.2 LH (1 parts) 67868G — RETAINER, DOOR WEATHERSTRIP (1 parts) 67833 — COVER, REAR DOOR SERVICE HOLE (1 parts) 68630D — CHECK ASSY, REAR DOOR, RH (1 parts) 68640A — CHECK ASSY, REAR DOOR, LH (1 parts) 9010908295 — not listed in this catalogue 9415180600 — not listed in this catalogue 9015150026 — not listed in this catalogue 67869D — CLIP, DOOR WEATHERSTRIP (1 parts) 6707 — not listed in this catalogue 6707 — not listed in this catalogue
67D1A5B · 51 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
53 parts on this figure
Part number Description Fitment Price
67003 — Panel Sub-assy, Rear Door, RH
67003-30740 Panel Sub-assy, Rear Door, RH
2023-11 → —
AZSH32 G ¥47,300
67003-30750 Panel Sub-assy, Rear Door, RH
2023-11 → —
AZSH32,KZSM30 Z ¥47,300
67003C — Cushion, Rear Door Panel
90541-09069 Cushion, Rear Door Panel
2023-11 → —
AZSH32,KZSM30 ¥170
67004 — Panel Sub-assy, Rear Door, LH
67004-30740 Panel Sub-assy, Rear Door, LH
2023-11 → —
AZSH32 G ¥47,300
67004-30750 Panel Sub-assy, Rear Door, LH
2023-11 → —
AZSH32,KZSM30 Z ¥47,300
67407E — Bar Sub-assy, Rear Door Window Division, RH
67407-30300 Bar Sub-assy, Rear Door Window Division, RH
2023-11 → —
AZSH32,KZSM30 ¥1,990
67408E — Bar Sub-assy, Rear Door Window Division, LH
67408-30300 Bar Sub-assy, Rear Door Window Division, LH
2023-11 → —
AZSH32,KZSM30 ¥1,990
67645A — Bracket, Rear Door Armrest Set, RH
67645-30110 Bracket, Rear Door Armrest Set, RH
2023-11 → —
AZSH32,KZSM30 ¥1,420
67646A — Bracket, Rear Door Armrest Set, LH
67646-30100 Bracket, Rear Door Armrest Set, LH
2023-11 → —
AZSH32,KZSM30 ¥1,420
67811A — Pad, Rear Door Silencer
67811-30100 Pad, Rear Door Silencer
2023-11 → —
AZSH32,KZSM30 ¥760
67833 — Cover, Rear Door Service Hole
67833-47010 Cover, Rear Door Service Hole
2023-11 → —
AZSH32,KZSM30 ¥200
67841E — Cover, Rear Door Service Hole, RH
67841-30530 Cover, Rear Door Service Hole, RH
2023-11 → —
AZSH32,KZSM30 ¥4,250
67842E — Cover, Rear Door Service Hole, LH
67842-30530 Cover, Rear Door Service Hole, LH
2023-11 → —
AZSH32,KZSM30 ¥4,250
67843D — Clip, Rear Door Service Hole
90467-09206 Clip, Rear Door Service Hole
2023-11 → —
AZSH32,KZSM30 ¥80
67867B — Clip, Door Weatherstrip(FOR REAR DOOR)
67868-30030 Clip, Door Weatherstrip(FOR REAR DOOR)
2023-11 → —
AZSH32,KZSM30 ¥190
67867J — Clip, Door Weatherstrip, RH(FOR REAR DOOR)
90467-04034 Clip, Door Weatherstrip, RH(FOR REAR DOOR)
2023-11 → —
AZSH32,KZSM30 ¥60
67867K — Clip, Door Weatherstrip, LH(FOR REAR DOOR)
90467-04034 Clip, Door Weatherstrip, LH(FOR REAR DOOR)
2023-11 → —
AZSH32,KZSM30 ¥60
67868G — Retainer, Door Weatherstrip
67867-12150 Retainer, Door Weatherstrip
2023-11 → —
AZSH32,KZSM30 ¥100
67868N — Clip, Door Weatherstrip, RH
67869-78010 Clip, Door Weatherstrip, RH
2023-11 → —
AZSH32,KZSM30 ¥100
67869D — Clip, Door Weatherstrip
67869-26050 Clip, Door Weatherstrip
2023-11 → —
AZSH32,KZSM30 ¥100
67869K — Clip, Door Weatherstrip, LH
67869-78020 Clip, Door Weatherstrip, LH
2023-11 → —
AZSH32,KZSM30 ¥100
67869L — Clip, Rear Door Weatherstrip
67869-78030 Clip, Rear Door Weatherstrip
2023-11 → —
AZSH32,KZSM30 ¥100
67871 — Weatherstrip, Rear Door, RH
67871-30380 Weatherstrip, Rear Door, RH
2023-11 → —
AZSH32,KZSM30 ¥5,200
67871A — Retainer(FOR REAR DOOR WEATHERSTRIP)
67867-12150 Retainer(FOR REAR DOOR WEATHERSTRIP)
2023-11 → —
AZSH32,KZSM30 ¥100
67872 — Weatherstrip, Rear Door, LH
67872-30380 Weatherstrip, Rear Door, LH
2023-11 → —
AZSH32,KZSM30 ¥5,200
67873L — Weatherstrip, Rear Door, NO.5 RH
67873-30060 Weatherstrip, Rear Door, NO.5 RH
2023-11 → —
AZSH32,KZSM30 ¥1,070
67874C — Weatherstrip, Rear Door, NO.5 LH
67874-30060 Weatherstrip, Rear Door, NO.5 LH
2023-11 → —
AZSH32,KZSM30 ¥1,070
67887A — Weatherstrip, Rear Door, NO.2 RH
67887-30220 Weatherstrip, Rear Door, NO.2 RH
2023-11 → —
AZSH32,KZSM30 ¥1,610
67888F — Weatherstrip, Rear Door, NO.2 LH
67887-30220 Weatherstrip, Rear Door, NO.2 LH
2023-11 → —
AZSH32,KZSM30 ¥1,610
67895C — Weatherstrip, Rear Door, NO.3 RH
67895-30090 Weatherstrip, Rear Door, NO.3 RH
2023-11 → —
AZSH32,KZSM30 ¥1,070
67896 — Weatherstrip, Rear Door, NO.3 LH
67896-30090 Weatherstrip, Rear Door, NO.3 LH
2023-11 → —
AZSH32,KZSM30 ¥1,070
68103 — Glass Sub-assy, Rear Door, RH
68103-30810 Glass Sub-assy, Rear Door, RH
2023-11 → —
AZSH32,KZSM30 —
68104 — Glass Sub-assy, Rear Door, LH
68104-30810 Glass Sub-assy, Rear Door, LH
2023-11 → —
AZSH32,KZSM30 —
68123B — Glass, Rear Door Quarter Window, RH
68123-30720 Glass, Rear Door Quarter Window, RH
2023-11 → —
AZSH32,KZSM30 —
68124B — Glass, Rear Door Quarter Window, LH
68124-30660 Glass, Rear Door Quarter Window, LH
2023-11 → —
AZSH32,KZSM30 —
68142C — Run, Rear Door Glass, RH
68142-30310 Run, Rear Door Glass, RH
2023-11 → —
AZSH32,KZSM30 ¥2,130
68152C — Run, Rear Door Glass, LH
68152-30310 Run, Rear Door Glass, LH
2023-11 → —
AZSH32,KZSM30 ¥2,130
68188 — Weatherstrip, Rear Door Quarter Window, RH
68188-30250 Weatherstrip, Rear Door Quarter Window, RH
2023-11 → —
AZSH32,KZSM30 ¥2,590
68189 — Weatherstrip, Rear Door Quarter Window, LH
68189-30230 Weatherstrip, Rear Door Quarter Window, LH
2023-11 → —
AZSH32,KZSM30 ¥2,590
68196B — Seal, Rear Door Belt, Front RH
68196-30080 Seal, Rear Door Belt, Front RH
2023-11 → —
AZSH32,KZSM30 ¥730
68197A — Seal, Rear Door Belt, Front LH
68197-30080 Seal, Rear Door Belt, Front LH
2023-11 → —
AZSH32,KZSM30 ¥730
68198 — Seal, Rear Door Belt, Rear RH
68198-30070 Seal, Rear Door Belt, Rear RH
2023-11 → —
AZSH32,KZSM30 ¥1,670
68199 — Seal, Rear Door Belt, Rear LH
68199-30070 Seal, Rear Door Belt, Rear LH
2023-11 → —
AZSH32,KZSM30 ¥1,670
68630D — Check Assy, Rear Door, RH
68630-30290 Check Assy, Rear Door, RH
2023-11 → —
AZSH32,KZSM30 ¥2,810
68640A — Check Assy, Rear Door, LH
68640-30190 Check Assy, Rear Door, LH
2023-11 → —
AZSH32,KZSM30 ¥2,810
75953A — Tape, Black Out, Inner Rear RH
75953-30070 Tape, Black Out, Inner Rear RH
2023-11 → —
AZSH32,KZSM30 ¥670
75954A — Tape, Black Out, Inner Rear LH
75954-30070 Tape, Black Out, Inner Rear LH
2023-11 → —
AZSH32,KZSM30 ¥670
75977H — Stripe, Rear Door Outside, Lower RH
75977-30040 Stripe, Rear Door Outside, Lower RH
2023-11 → —
AZSH32,KZSM30 ¥670
75978H — Stripe, Rear Door Outside, Lower LH
75978-30040 Stripe, Rear Door Outside, Lower LH
2023-11 → —
AZSH32,KZSM30 ¥670
75987F — Stripe, Rear Door, Outside, RH
75987-30070 Stripe, Rear Door, Outside, RH
2023-11 → —
AZSH32 G ¥1,120
75987-30080 Stripe, Rear Door, Outside, RH
2023-11 → —
AZSH32,KZSM30 Z ¥1,120
75988E — Stripe, Rear Door, Outside LH
75988-30070 Stripe, Rear Door, Outside LH
2023-11 → —
AZSH32 G ¥1,120
75988-30080 Stripe, Rear Door, Outside LH
2023-11 → —
AZSH32,KZSM30 Z ¥1,120
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
