Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

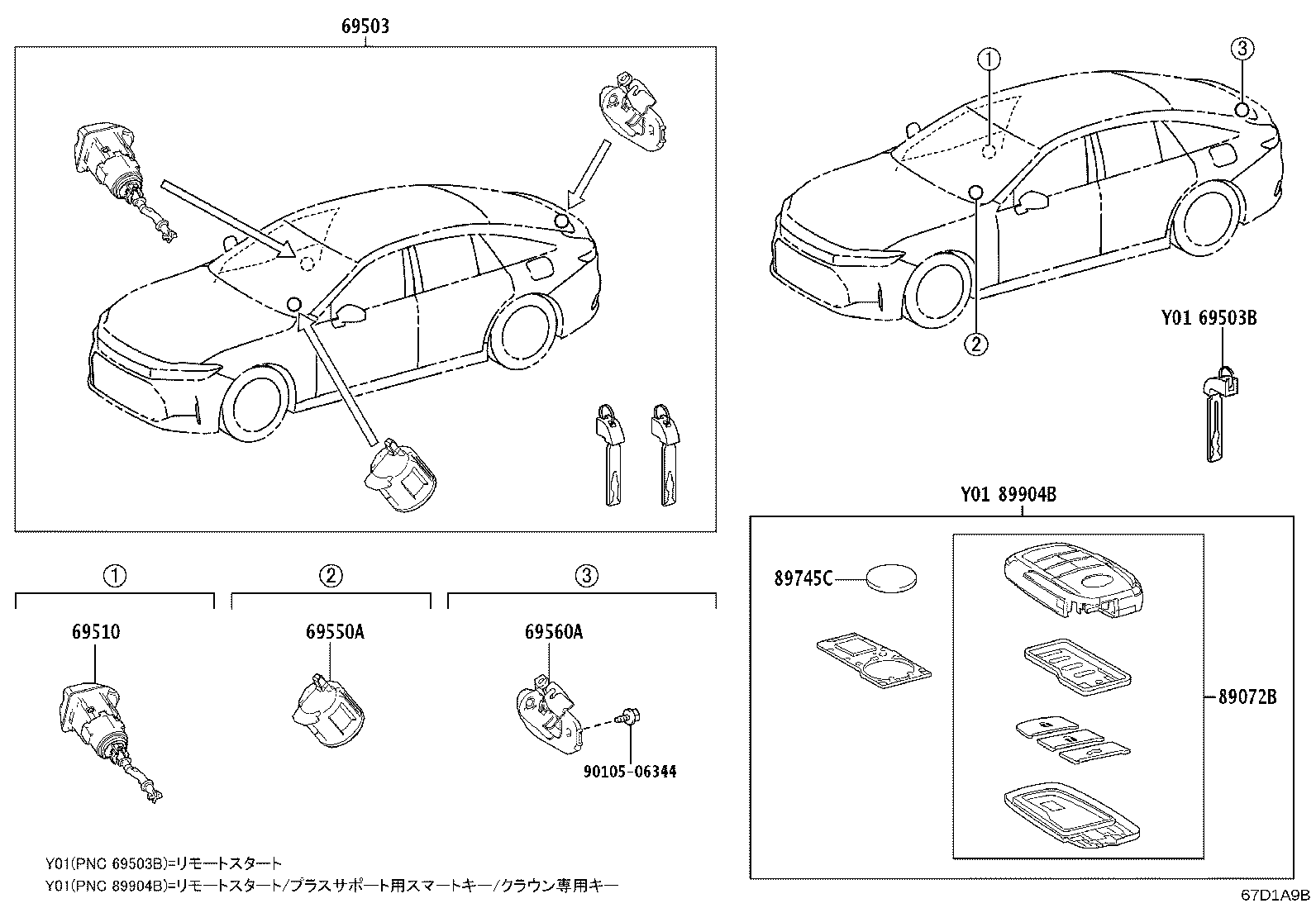

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69503 — Cylinder Set, Lock | ||||
| 69005-30K00 |
Cylinder Set, Lock
2023-11 → —
|
AZSH32,KZSM30 | ¥12,100 | |
| 69503B — Key, Cut | ||||
| 69515-K0010 note |
Key, Cut
2023-11 → —
|
AZSH32,KZSM30 | ¥7,100 | |
| 69510 — Cylinder Assy, Front Door Lock, RH | ||||
| 69510-30400 |
Cylinder Assy, Front Door Lock, RH
2023-11 → —
|
AZSH32,KZSM30 | ¥10,400 | |
| 69550A — Cylinder Assy, Glove Compartment Door Lock | ||||
| 69550-50040 |
Cylinder Assy, Glove Compartment Door Lock
2023-11 → —
|
AZSH32,KZSM30 | ¥10,000 | |
| 69560A — Cylinder Assy, Luggage Compartment Door Lock | ||||
| 69560-30390 |
Cylinder Assy, Luggage Compartment Door Lock
2023-11 → —
|
AZSH32,KZSM30 | ¥10,200 | |
| 89072B — Housing Set, Door Control Transmitter (FOR SMART KEY) | ||||
| 89072-30A00 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2023-11 → —
|
AZSH32,KZSM30 | ¥5,400 | |
| 89072-30A00 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2023-11 → —
|
AZSH32,KZSM30 | ¥5,400 | |
| 89072-30A00 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2023-11 → —
|
AZSH32 G | ¥5,400 | |
| 8990E-30020 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2023-11 → —
|
AZSH32,KZSM30 | ¥13,000 | |
| 89745C — Battery, Transmitter | ||||
| 89745-K0010 note |
Battery, Transmitter
2023-11 → —
|
AZSH32,KZSM30 | ¥440 | |
| 89745-K0010 note |
Battery, Transmitter
2023-11 → —
|
AZSH32,KZSM30 | ¥440 | |
| 89745-K0010 note |
Battery, Transmitter
2023-11 → —
|
AZSH32 G | ¥440 | |
| 89904B — Transmitter Sub-assy, Electrical Key | ||||
| 8990H-30180 |
Transmitter Sub-assy, Electrical Key
2023-11 → —
|
AZSH32,KZSM30 | ¥14,700 | |
| 8990H-30270 note |
Transmitter Sub-assy, Electrical Key
2023-11 → 2025-06
ended
|
AZSH32,KZSM30 Z | ¥20,000 | |
| 8990H-30270 note |
Transmitter Sub-assy, Electrical Key
2023-11 → —
|
AZSH32 G | ¥20,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
