Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

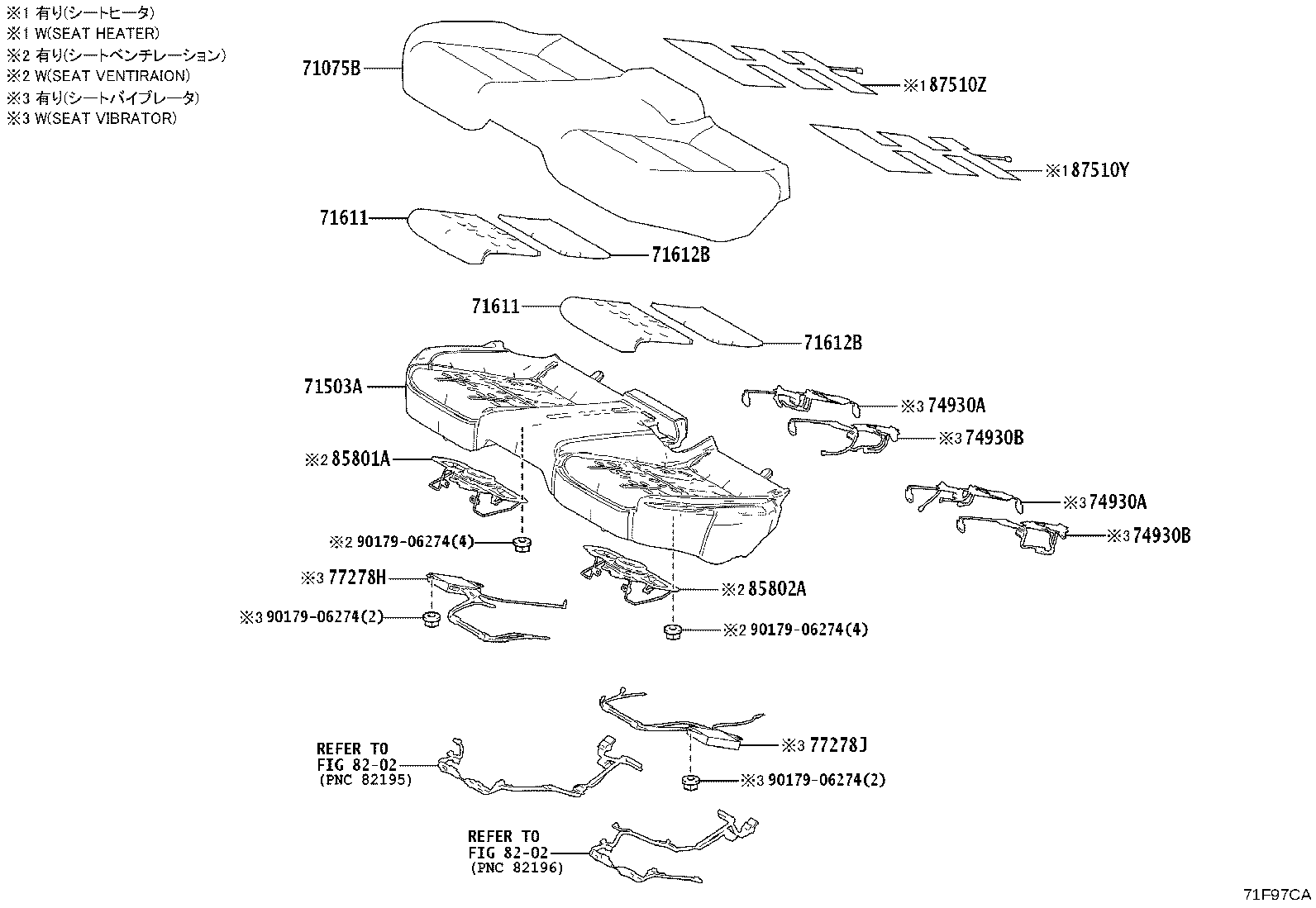

Exploded illustration 71F97CA 8202 — not listed in this catalogue 8202 — not listed in this catalogue 71075B — COVER, REAR SEAT CUSHION (FOR BENCH TYPE) (3 parts) 71612B — PAD, REAR SEAT CUSHION, B (1 parts) 71612B — PAD, REAR SEAT CUSHION, B (1 parts) 71503A — PAD SUB-ASSY, REAR SEAT CUSHION (2 parts) 71611 — PAD, REAR SEAT CUSHION (1 parts) 74930A — CUSHION ASSY, MAIN STRETCHER, RH(FOR SEAT CUSHION) (1 parts) 85801A — BLOWER SUB-ASSY, SEAT CUSHION CLIMATE, RH (1 parts) 77278J — VALVE, CHECK W/HOSE, LH(FOR SEAT CUSHION) (1 parts) 85802A — BLOWER SUB-ASSY, SEAT CUSHION CLIMATE, LH (1 parts) 77278H — VALVE, CHECK W/HOSE, RH(FOR SEAT CUSHION) (1 parts) 74930B — CUSHION ASSY, MAIN STRETCHER, LH(FOR SEAT CUSHION) (1 parts) 74930A — CUSHION ASSY, MAIN STRETCHER, RH(FOR SEAT CUSHION) (1 parts) 87510Z — HEATER ASSY, REAR NO.1 SEAT CUSHION, RH (2 parts) 87510Y — HEATER ASSY, REAR NO.1 SEAT CUSHION, LH (2 parts) 74930B — CUSHION ASSY, MAIN STRETCHER, LH(FOR SEAT CUSHION) (1 parts) 71611 — PAD, REAR SEAT CUSHION (1 parts) 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue
71F97CA · 16 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
71075B — Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075-30P20-C3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2023-11 → —
AZSH32 G ¥50,300
71075-30P30-C3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2023-11 → —
AZSH32,KZSM30 Z ¥83,400
71075-30P30-E2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2023-11 → —
AZSH32,KZSM30 Z ¥83,400
71503A — Pad Sub-assy, Rear Seat Cushion
71503-30360 Pad Sub-assy, Rear Seat Cushion
2023-11 → —
AZSH32 ¥34,600
71503-30370 Pad Sub-assy, Rear Seat Cushion
2023-11 → —
KZSM30 ¥21,700
71611 — Pad, Rear Seat Cushion
71611-30810 Pad, Rear Seat Cushion
2023-11 → —
AZSH32,KZSM30 ¥330
71612B — Pad, Rear Seat Cushion, B
71612-30400 Pad, Rear Seat Cushion, B
2023-11 → —
AZSH32,KZSM30 ¥330
74930A — Cushion Assy, Main Stretcher, RH(FOR SEAT CUSHION)
74930-30020 note Cushion Assy, Main Stretcher, RH(FOR SEAT CUSHION)
2023-11 → 2025-03 ended
AZSH32,KZSM30 Z ¥9,800
74930B — Cushion Assy, Main Stretcher, LH(FOR SEAT CUSHION)
74930-30030 note Cushion Assy, Main Stretcher, LH(FOR SEAT CUSHION)
2023-11 → 2025-03 ended
AZSH32,KZSM30 Z ¥9,800
77278H — Valve, Check W/Hose, RH(FOR SEAT CUSHION)
77278-30020 note Valve, Check W/Hose, RH(FOR SEAT CUSHION)
2023-11 → 2025-03 ended
AZSH32,KZSM30 Z ¥32,300
77278J — Valve, Check W/Hose, LH(FOR SEAT CUSHION)
77278-30030 note Valve, Check W/Hose, LH(FOR SEAT CUSHION)
2023-11 → 2025-03 ended
AZSH32,KZSM30 Z ¥32,300
85801A — Blower Sub-assy, Seat Cushion Climate, RH
85801-30110 Blower Sub-assy, Seat Cushion Climate, RH
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥13,600
85802A — Blower Sub-assy, Seat Cushion Climate, LH
85801-30110 Blower Sub-assy, Seat Cushion Climate, LH
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥13,600
87510Y — Heater Assy, Rear NO.1 Seat Cushion, LH
87510-30710 Heater Assy, Rear NO.1 Seat Cushion, LH
2023-11 → 2025-03 ended
AZSH32,KZSM30 Z ¥7,500
87510-30730 note Heater Assy, Rear NO.1 Seat Cushion, LH
2023-11 → 2025-03 ended
AZSH32,KZSM30 Z ¥7,500
87510Z — Heater Assy, Rear NO.1 Seat Cushion, RH
87510-30700 Heater Assy, Rear NO.1 Seat Cushion, RH
2023-11 → 2025-03 ended
AZSH32,KZSM30 Z ¥7,500
87510-30720 note Heater Assy, Rear NO.1 Seat Cushion, RH
2023-11 → 2025-03 ended
AZSH32,KZSM30 Z ¥7,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
