Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

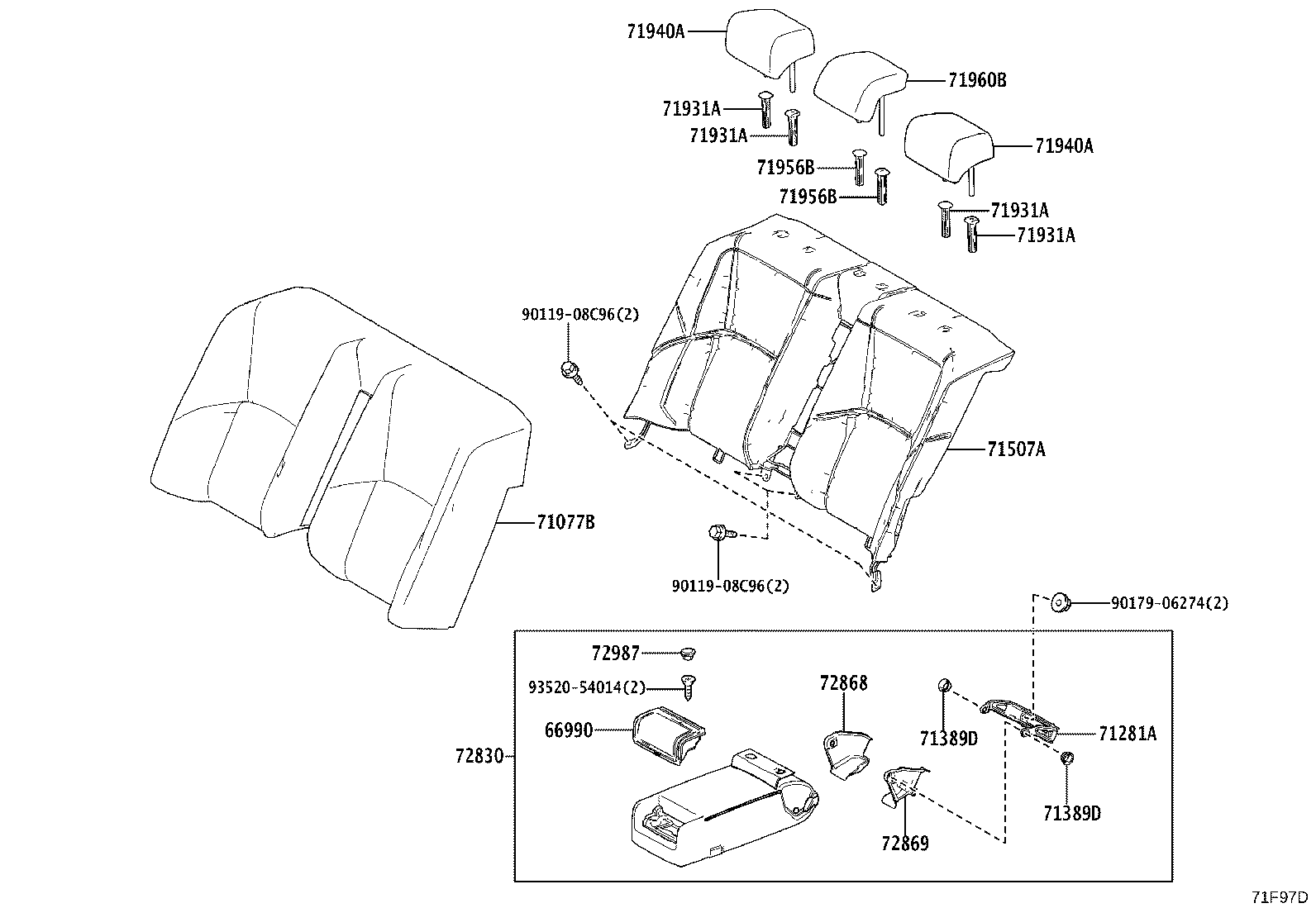

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 66990 — Holder Assy, Cup | ||||
| 66990-30030-C0 note |
Holder Assy, Cup
2023-11 → —
|
AZSH32,KZSM30 Z | ¥5,700 | |
| 66990-78010-C1 note |
Holder Assy, Cup
2023-11 → —
|
AZSH32 G | ¥4,950 | |
| 71077B — Cover, Rear Seatback (FOR BENCH TYPE) | ||||
| 71077-30T60-C3 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-11 → —
|
AZSH32 G | ¥53,100 | |
| 71281A — Hinge, Rear Seat Center Armrest | ||||
| 71281-30090 |
Hinge, Rear Seat Center Armrest
2023-11 → —
|
AZSH32,KZSM30 | ¥890 | |
| 71389D — Plate, Rear Seat Stopper | ||||
| 71389-30010 |
Plate, Rear Seat Stopper
2023-11 → —
|
AZSH32,KZSM30 | ¥70 | |
| 71507A — Pad Sub-assy, Rear Seatback | ||||
| 71507-30360 |
Pad Sub-assy, Rear Seatback
2023-11 → 2025-06
ended
|
AZSH32 G | ¥30,900 | |
| 71507-30370 |
Pad Sub-assy, Rear Seatback
2023-11 → —
|
AZSH32,KZSM30 Z | ¥1,130 | |
| 71931A — Support, Rear Seat Headrest | ||||
| 71930-47050-C5 note |
Support, Rear Seat Headrest
2023-11 → —
|
AZSH32,KZSM30 Z | ¥770 | |
| 71930-47050-C5 note |
Support, Rear Seat Headrest
2023-11 → —
|
AZSH32 G | ¥770 | |
| 71931-47030-C4 note |
Support, Rear Seat Headrest
2023-11 → —
|
AZSH32,KZSM30 Z | ¥470 | |
| 71931-47030-C4 note |
Support, Rear Seat Headrest
2023-11 → —
|
AZSH32 G | ¥470 | |
| 71940A — Headrest Assy, Rear Seat | ||||
| 71940-30G20-C0 note |
Headrest Assy, Rear Seat
2023-11 → —
|
AZSH32 G | ¥17,300 | |
| 71940-30K30-C4 note |
Headrest Assy, Rear Seat
2023-11 → —
|
AZSH32,KZSM30 Z | ¥17,300 | |
| 71940-30K30-E4 note |
Headrest Assy, Rear Seat
2023-11 → —
|
AZSH32,KZSM30 Z | ¥17,300 | |
| 71956B — Support, Rear Seat Headrest | ||||
| 71930-47050-C5 note |
Support, Rear Seat Headrest
2023-11 → —
|
AZSH32,KZSM30 Z | ¥770 | |
| 71930-47050-C5 note |
Support, Rear Seat Headrest
2023-11 → —
|
AZSH32 G | ¥770 | |
| 71931-47030-C4 note |
Support, Rear Seat Headrest
2023-11 → —
|
AZSH32,KZSM30 Z | ¥470 | |
| 71931-47030-C4 note |
Support, Rear Seat Headrest
2023-11 → —
|
AZSH32 G | ¥470 | |
| 71960B — Headrest Assy, Rear Seat, Center | ||||
| 71960-30A60-C2 note |
Headrest Assy, Rear Seat, Center
2023-11 → —
|
AZSH32,KZSM30 Z | ¥13,900 | |
| 71960-30A60-E2 note |
Headrest Assy, Rear Seat, Center
2023-11 → —
|
AZSH32,KZSM30 Z | ¥13,900 | |
| 71960-62020-C9 note |
Headrest Assy, Rear Seat, Center
2023-11 → —
|
AZSH32 G | ¥13,900 | |
| 72830 — Armrest Assy, Rear Seat, Center | ||||
| 72830-62020-C3 note |
Armrest Assy, Rear Seat, Center
2023-11 → —
|
AZSH32 G | ¥42,700 | |
| 72868 — Cover, Center Armrest Hinge, RH | ||||
| 72868-62010-C0 note |
Cover, Center Armrest Hinge, RH
2023-11 → —
|
AZSH32 G | ¥1,090 | |
| 72869 — Cover, Center Armrest Hinge, LH | ||||
| 72869-62010-C0 note |
Cover, Center Armrest Hinge, LH
2023-11 → —
|
AZSH32 G | ¥1,090 | |
| 72987 — Cover, Rear Seat Center Armrest | ||||
| 72987-78010 |
Cover, Rear Seat Center Armrest
2023-11 → —
|
AZSH32 G | ¥60 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
