Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

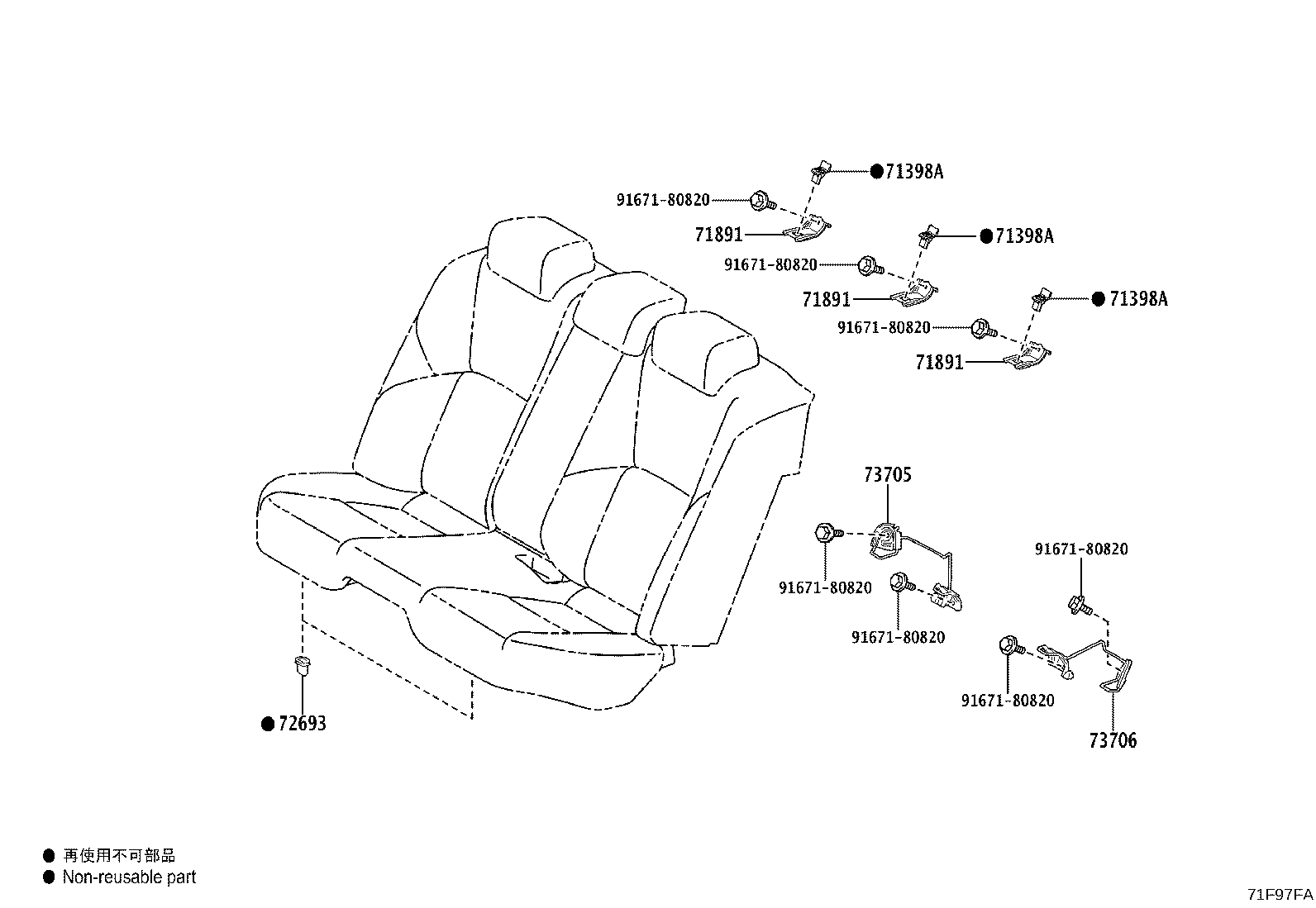

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71398A — Holder, Rear Seatback | ||||
| 71398-33010 |
Holder, Rear Seatback
2023-11 → —
|
AZSH32,KZSM30 Z | ¥220 | |
| 71398-33010 |
Holder, Rear Seatback
2023-11 → —
|
AZSH32 G | ¥220 | |
| 71891 — Bracket, Rear Seatback Set, NO.1 | ||||
| 71891-62010 |
Bracket, Rear Seatback Set, NO.1
2023-11 → —
|
AZSH32,KZSM30 Z | ¥700 | |
| 71891-62010 |
Bracket, Rear Seatback Set, NO.1
2023-11 → —
|
AZSH32 G | ¥700 | |
| 72693 — Hook, Rear Seat Cushion Lock | ||||
| 72693-43011 |
Hook, Rear Seat Cushion Lock
2023-11 → —
|
AZSH32,KZSM30 | ¥1,060 | |
| 73705 — Bracket Sub-assy, Child Restraint Seat Anchor, RH | ||||
| 73705-30090 |
Bracket Sub-assy, Child Restraint Seat Anchor, RH
2023-11 → —
|
AZSH32,KZSM30 | ¥1,480 | |
| 73706 — Bracket Sub-assy, Child Restraint Seat Anchor, LH | ||||
| 73706-30080 |
Bracket Sub-assy, Child Restraint Seat Anchor, LH
2023-11 → —
|
AZSH32,KZSM30 | ¥1,470 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
