Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 71F97IC 8401 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 7104 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 7104 — not listed in this catalogue 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (3 parts) 71910B — HEADREST ASSY, FRONT SEAT (3 parts) 71054S — SPRING SUB-ASSY, FRONT SEATBACK, LH (1 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (1 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (3 parts) 87501B — CONTROL SUB-ASSY, SEAT HEATER, LH (1 parts) 71052A — SPRING SUB-ASSY, FRONT SEAT CUSHION, LH (1 parts) 73179A — CAP, SEAT BELT ANCHOR COVER, LH (2 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (2 parts) 72136B — SPACER, SEAT TRACK, LOWER NO.3 (1 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (2 parts) 87510L — HEATER ASSY, FRONT SEAT CUSHION, LH (1 parts) 82667D — HOLDER, CONNECTOR (1 parts) 71868N — SHIELD, FRONT SEAT CUSHION, FRONT LH (2 parts) 87510N — HEATER ASSY, FRONT SEATBACK, LH (1 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (2 parts) 71875G — COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) (2 parts) 71876G — COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) (2 parts) 71014S — FRAME SUB-ASSY, FRONT SEATBACK, LH (2 parts) 71931D — SUPPORT, FRONT SEAT HEADREST, RH (2 parts) 71930C — SUPPORT, FRONT SEAT HEADREST, LH (2 parts) 71759D — HOOK, FRONT SEATBACK, NO.2 (1 parts) 72125V — COVER, SEAT TRACK, UPPER REAR LH (1 parts) 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (1 parts) 7181B — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH (2 parts) 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (1 parts) 72158E — COVER, SEAT TRACK BRACKET, INNER REAR LH (1 parts) 72138N — COVER, SEAT TRACK BRACKET, OUTER REAR LH (1 parts) 72266 — COVER, SEAT TRACK UPPER RAIL, LH (1 parts) 72266 — COVER, SEAT TRACK UPPER RAIL, LH (1 parts) 72125V — COVER, SEAT TRACK, UPPER REAR LH (1 parts) 71759D — HOOK, FRONT SEATBACK, NO.2 (1 parts) 71587B — PROTECTOR, FRONT SEATBACK EDGE (1 parts) 71587B — PROTECTOR, FRONT SEATBACK EDGE (1 parts) 9011910601 — not listed in this catalogue 9011910601 — not listed in this catalogue 9418560600 — not listed in this catalogue 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (2 parts) 72020 — ADJUSTER ASSY, FRONT SEAT, LH (2 parts) 9014810007 — not listed in this catalogue 9014810007 — not listed in this catalogue 9046707215 — not listed in this catalogue 9356054012 — not listed in this catalogue 76854C — RETAINER, FRONT SEAT CUSHION COVER (1 parts)

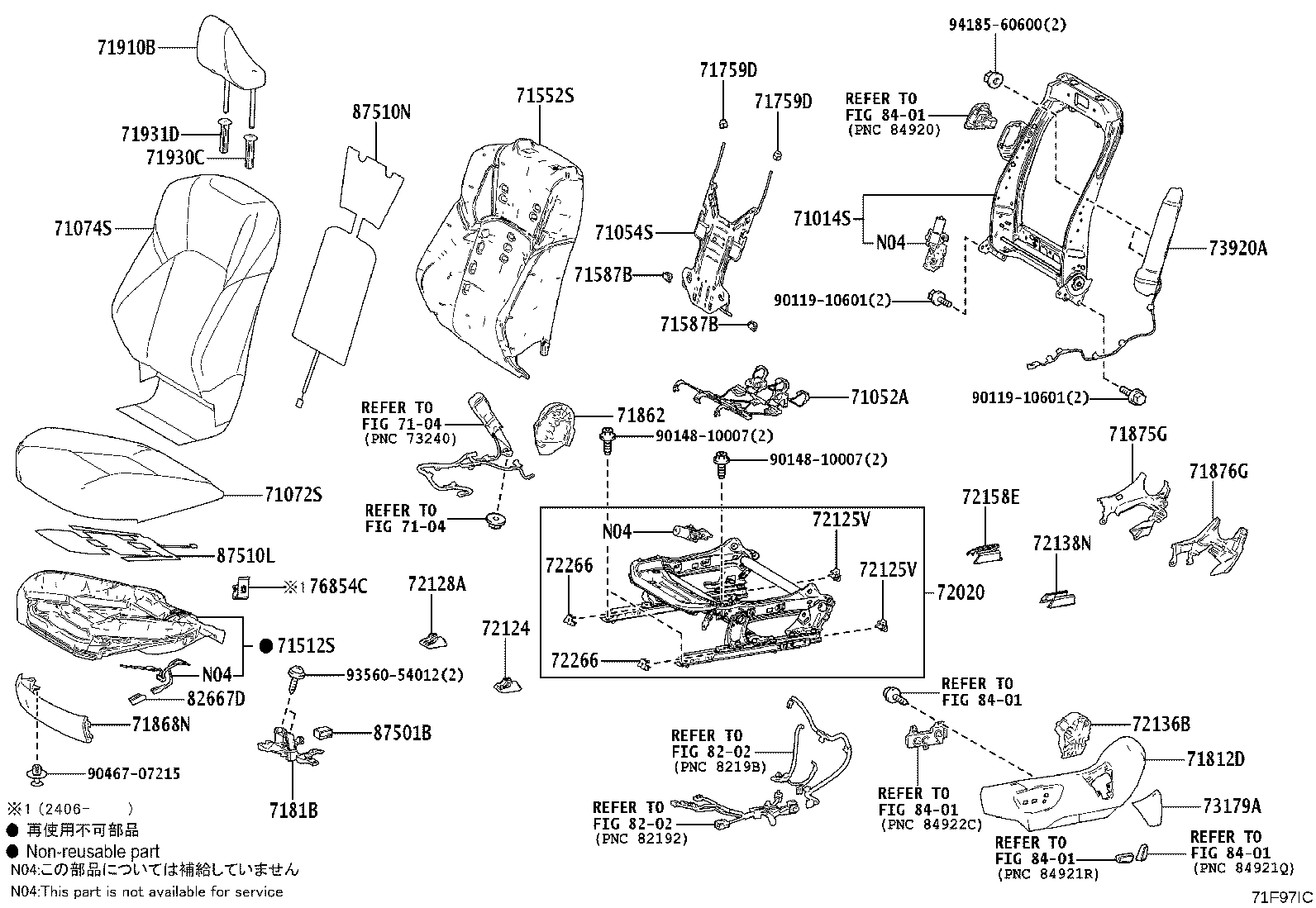

71F97IC · 37 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
71014S — Frame Sub-assy, Front Seatback, LH
71014-30D90 Frame Sub-assy, Front Seatback, LH
2023-11 → —
AZSH32 G ¥32,900
71014-30E00 Frame Sub-assy, Front Seatback, LH
2023-11 → —
AZSH32,KZSM30 Z ¥32,900
71052A — Spring Sub-assy, Front Seat Cushion, LH
71051-11010 Spring Sub-assy, Front Seat Cushion, LH
2023-11 → —
AZSH32,KZSM30 ¥3,010
71054S — Spring Sub-assy, Front Seatback, LH
71053-47050 Spring Sub-assy, Front Seatback, LH
2023-11 → —
AZSH32 G ¥5,200
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-30T00-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-11 → —
AZSH32 G ¥33,500
71072-30T30-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-11 → —
AZSH32,KZSM30 Z ¥56,300
71072-30T30-E1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-11 → —
AZSH32,KZSM30 Z ¥56,300
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-30W10-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-11 → —
AZSH32 G ¥43,800
71074-30W20-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-11 → —
AZSH32,KZSM30 Z ¥73,600
71074-30W20-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-11 → —
AZSH32,KZSM30 Z ¥73,600
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71502-30240 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2023-11 → —
AZSH32 G ¥13,200
71502-30260 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2023-11 → —
AZSH32,KZSM30 Z ¥11,400
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71552-30B40 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2023-11 → —
AZSH32,KZSM30 Z ¥11,100
71552-30B90 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2023-11 → —
AZSH32 G ¥10,000
71587B — Protector, Front Seatback Edge
71587-47010 Protector, Front Seatback Edge
2023-11 → —
AZSH32,KZSM30 ¥200
71759D — Hook, Front Seatback, NO.2
71759-50040 Hook, Front Seatback, NO.2
2023-11 → —
AZSH32,KZSM30 ¥130
71812D — Shield, Front Seat Cushion, LH
71812-30440-C0 note Shield, Front Seat Cushion, LH
2023-11 → —
AZSH32 G ¥3,050
71812-30450-C0 note Shield, Front Seat Cushion, LH
2023-11 → —
AZSH32,KZSM30 Z ¥2,700
7181B — Holder, Front Seat Cushion Wire Harness, LH
7181B-11010 Holder, Front Seat Cushion Wire Harness, LH
2023-11 → —
AZSH32,KZSM30 Z ¥2,570
7181B-47010 Holder, Front Seat Cushion Wire Harness, LH
2023-11 → —
AZSH32 G ¥1,220
71862 — Shield, Front Seat Cushion, Inner LH
71862-62010-C0 note Shield, Front Seat Cushion, Inner LH
2023-11 → —
AZSH32 G ¥1,320
71862-62020-C0 note Shield, Front Seat Cushion, Inner LH
2023-11 → —
AZSH32,KZSM30 Z —
71868N — Shield, Front Seat Cushion, Front LH
71868-30260-C0 note Shield, Front Seat Cushion, Front LH
2023-11 → —
AZSH32,KZSM30 Z ¥2,330
71868-30260-C0 note Shield, Front Seat Cushion, Front LH
2023-11 → —
AZSH32 G ¥2,330
71875G — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876-62010-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2023-11 → —
AZSH32 G ¥1,190
71876-62020-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2023-11 → —
AZSH32,KZSM30 Z —
71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71876-47040-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2023-11 → —
AZSH32,KZSM30 Z ¥1,170
71876-47070-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2023-11 → —
AZSH32 G ¥1,170
71910B — Headrest Assy, Front Seat
71910-30K60-C2 note Headrest Assy, Front Seat
2023-11 → —
AZSH32 G ¥17,300
71910-30K80-C0 note Headrest Assy, Front Seat
2023-11 → —
AZSH32,KZSM30 Z ¥17,300
71910-30K80-E0 note Headrest Assy, Front Seat
2023-11 → —
AZSH32,KZSM30 Z ¥17,300
71930C — Support, Front Seat Headrest, LH
71930-47050-C5 note Support, Front Seat Headrest, LH
2023-11 → —
AZSH32 G ¥770
71930-62010-C0 note Support, Front Seat Headrest, LH
2023-11 → —
AZSH32,KZSM30 Z ¥1,630
71931D — Support, Front Seat Headrest, RH
71930-62020-C0 note Support, Front Seat Headrest, RH
2023-11 → —
AZSH32,KZSM30 Z ¥1,630
71931-47030-C4 note Support, Front Seat Headrest, RH
2023-11 → —
AZSH32 G ¥470
72020 — Adjuster Assy, Front Seat, LH
72020-62030 Adjuster Assy, Front Seat, LH
2023-11 → —
AZSH32 G ¥35,800
72020-62040 Adjuster Assy, Front Seat, LH
2023-11 → —
AZSH32,KZSM30 Z ¥69,100
72124 — Cover, Seat Track Bracket, Outer Front LH
72123-50020-C0 note Cover, Seat Track Bracket, Outer Front LH
2023-11 → —
AZSH32,KZSM30 ¥370
72125V — Cover, Seat Track, Upper Rear LH
72125-47020 Cover, Seat Track, Upper Rear LH
2023-11 → —
AZSH32,KZSM30 ¥160
72128A — Cover, Seat Track Bracket, Inner Front LH
72123-50020-C0 note Cover, Seat Track Bracket, Inner Front LH
2023-11 → —
AZSH32,KZSM30 ¥370
72136B — Spacer, Seat Track, Lower NO.3
72136-30150 Spacer, Seat Track, Lower NO.3
2023-11 → —
AZSH32,KZSM30 ¥2,910
72138N — Cover, Seat Track Bracket, Outer Rear LH
72137-47060 Cover, Seat Track Bracket, Outer Rear LH
2023-11 → —
AZSH32,KZSM30 ¥430
72158E — Cover, Seat Track Bracket, Inner Rear LH
72158-47080 Cover, Seat Track Bracket, Inner Rear LH
2023-11 → —
AZSH32,KZSM30 ¥460
72266 — Cover, Seat Track Upper Rail, LH
72265-47020 Cover, Seat Track Upper Rail, LH
2023-11 → —
AZSH32,KZSM30 ¥160
73179A — Cap, Seat Belt Anchor Cover, LH
73179-30070-C0 note Cap, Seat Belt Anchor Cover, LH
2023-11 → —
AZSH32 G ¥590
73179-62010-C0 note Cap, Seat Belt Anchor Cover, LH
2023-11 → —
AZSH32,KZSM30 Z —
73920A — Airbag Assy, Front Seat, LH
73920-12090 Airbag Assy, Front Seat, LH
2023-11 → —
AZSH32,KZSM30 ¥20,000
76854C — Retainer, Front Seat Cushion Cover
76854-44010 Retainer, Front Seat Cushion Cover
2024-06 → —
AZSH32 G ¥40
82667D — Holder, Connector
82666-47630 Holder, Connector
2023-11 → —
AZSH32,KZSM30 ¥170
87501B — Control Sub-assy, Seat Heater, LH
87501-33010 Control Sub-assy, Seat Heater, LH
2023-11 → —
AZSH32,KZSM30 ¥4,330
87510L — Heater Assy, Front Seat Cushion, LH
87510-30610 Heater Assy, Front Seat Cushion, LH
2023-11 → —
AZSH32,KZSM30 ¥7,500
87510N — Heater Assy, Front Seatback, LH
87530-30350 Heater Assy, Front Seatback, LH
2023-11 → —
AZSH32,KZSM30 ¥7,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
