Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 74686JA 288A2 — LABEL, BATTERY LOCATION (1 parts) 77A62 — LABEL, HYDROGEN TANK LIST INFORMATION (1 parts) 74571B — FILM, LABEL COVER (1 parts) 1A1A7 — LABEL, FC STACK NOTICE (1 parts) G92A1 — LABEL, HYBRID COOLANT SYSTEM INFORMATION (1 parts) 11285A — LABEL, COOLANT SYSTEM NOTICE (1 parts) 288A2A — LABEL, BATTERY LOCATION, NO.2 (1 parts) 11296C — LABEL, ENGINE SERVICE INFORMATION (1 parts) 88723E — LABEL, COOLER SERVICE CAUTION (1 parts)

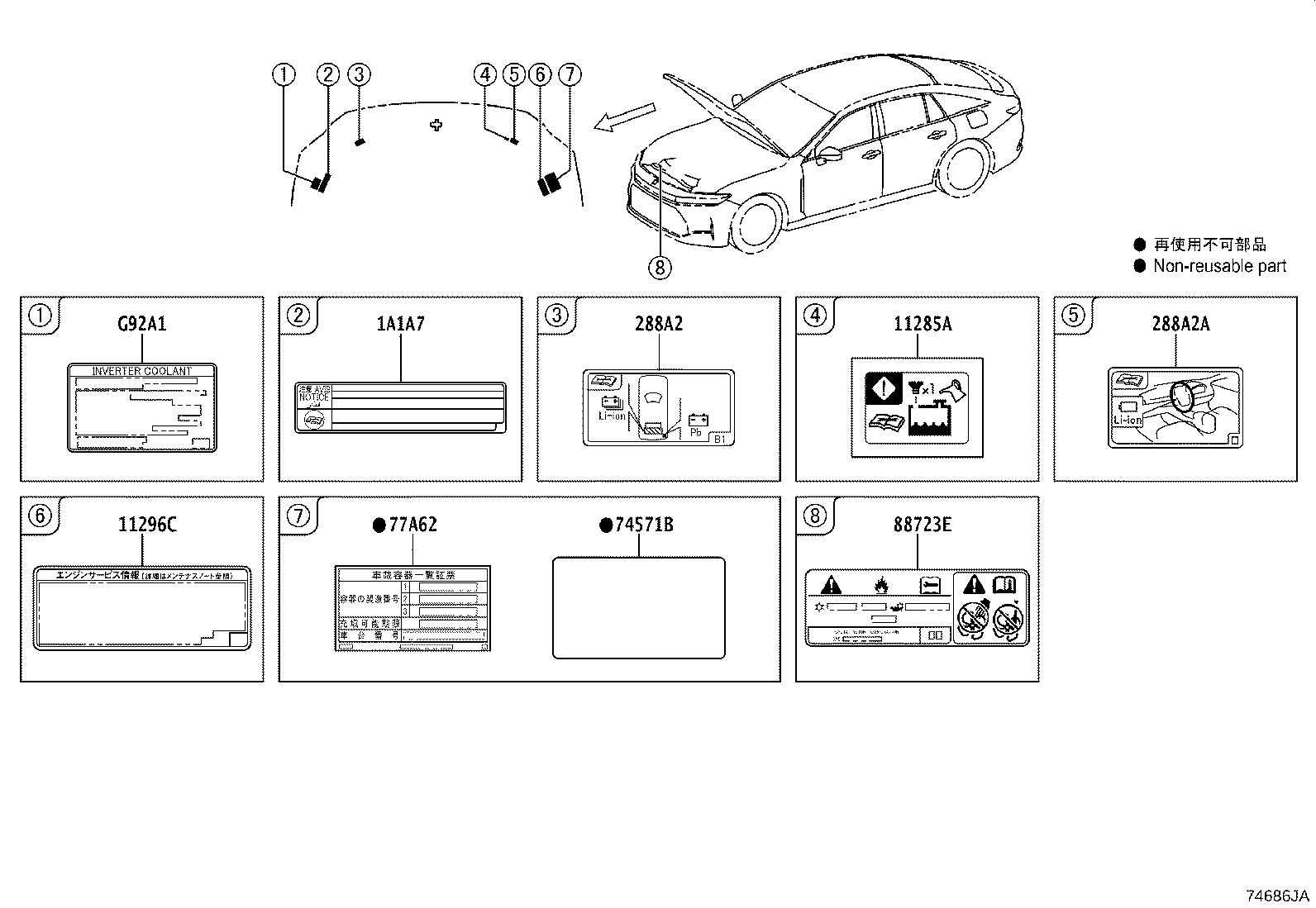

74686JA · 9 callouts Full size ↗
9 parts on this figure
Part number Description Fitment Price
11285A — Label, Coolant System Notice
11285-11020 Label, Coolant System Notice
2023-11 → —
A25 AZSH32 ¥110
11296C — Label, Engine Service Information
11296-24020 Label, Engine Service Information
2023-11 → —
A25 AZSH32 ¥180
1A1A7 — Label, FC Stack Notice
1A1A7-77010 Label, FC Stack Notice
2023-11 → —
MOTOR KZSM30 ¥100
288A2 — Label, Battery Location
288A2-77020 Label, Battery Location
2023-11 → —
A25,MOTOR AZSH32,KZSM30 ¥110
288A2A — Label, Battery Location, NO.2
288A2-15050 Label, Battery Location, NO.2
2023-11 → —
A25,MOTOR AZSH32,KZSM30 ¥110
74571B — Film, Label Cover
74571-62200 Film, Label Cover
2023-11 → —
KZSM30 ¥200
77A62 — Label, Hydrogen Tank List Information
77A62-62040 Label, Hydrogen Tank List Information
2023-11 → —
KZSM30 ¥200
88723E — Label, Cooler Service Caution
88723-48430 Label, Cooler Service Caution
2023-11 → —
AZSH32,KZSM30 ¥180
G92A1 — Label, Hybrid Coolant System Information
G92A1-11010 Label, Hybrid Coolant System Information
2023-11 → —
KZSM30 ¥140
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
