Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

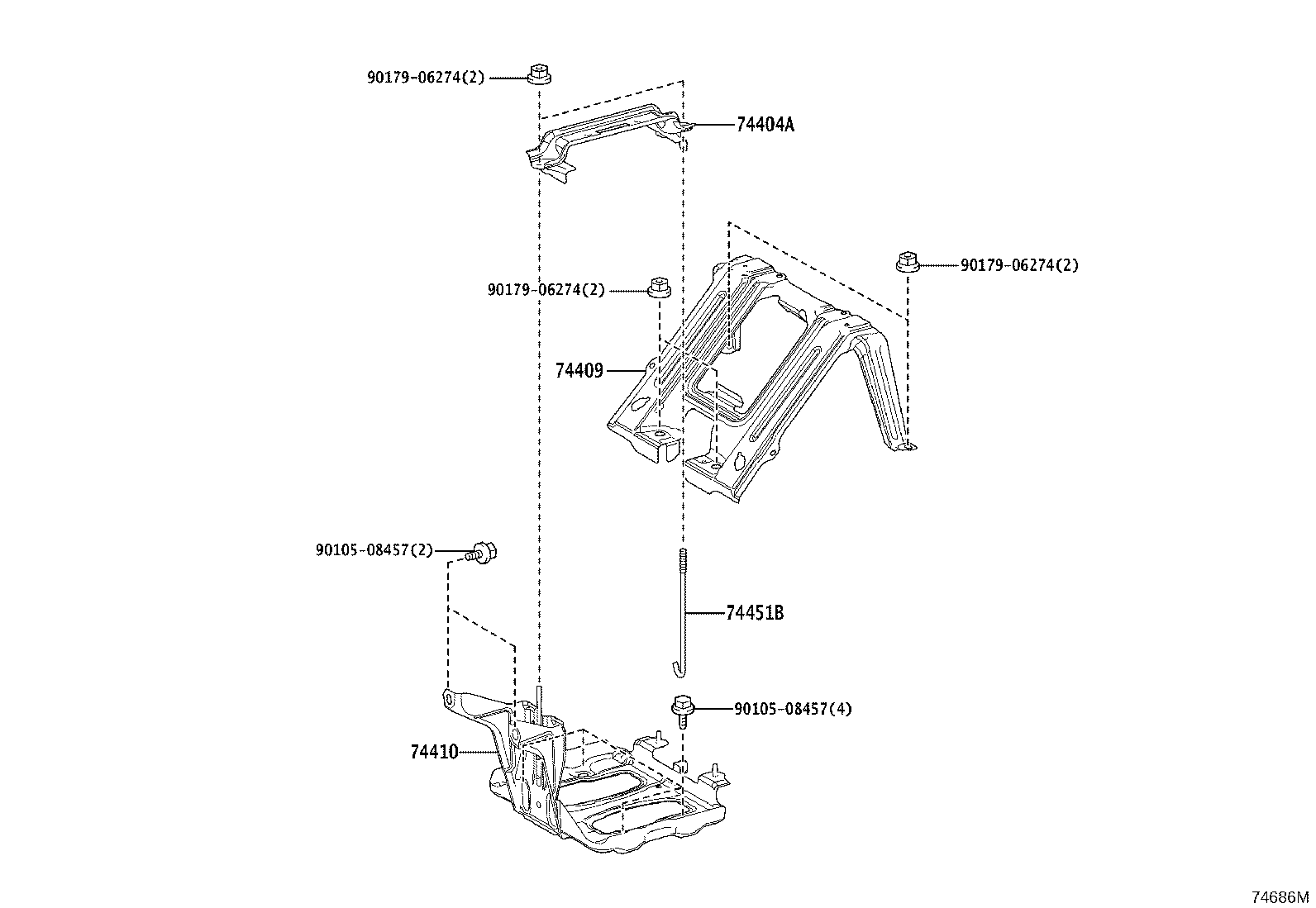

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74404A — Clamp Sub-assy, Battery | ||||
| 74404-30340 |
Clamp Sub-assy, Battery
2023-11 → —
|
AZSH32 | ¥1,610 | |
| 74409 — Bracket Sub-assy, Battery Carrier Catch | ||||
| 74409-30030 |
Bracket Sub-assy, Battery Carrier Catch
2023-11 → —
|
AZSH32 | ¥3,460 | |
| 74410 — Carrier Assy, Battery | ||||
| 74410-30110 |
Carrier Assy, Battery
2023-11 → —
|
AZSH32 | ¥10,000 | |
| 74410-62020 |
Carrier Assy, Battery
2023-11 → —
|
KZSM30 | ¥7,700 | |
| 74451B — Bolt, Battery Clamp | ||||
| 74451-35090 |
Bolt, Battery Clamp
2023-11 → —
|
AZSH32 | ¥360 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
