Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

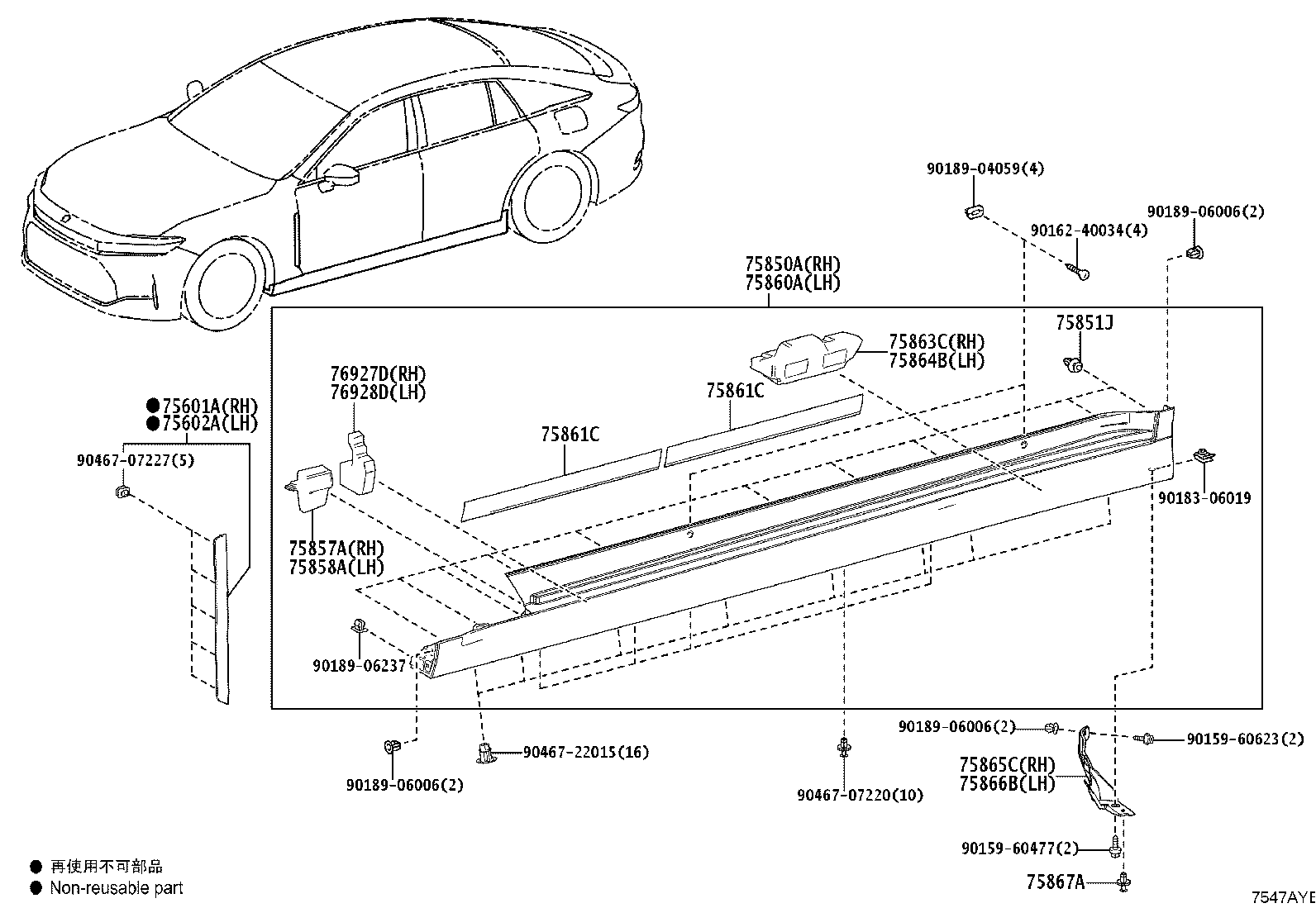

Exploded illustration 7547AYB 75861C — PAD, ROCKER PANEL MOULDING (1 parts) 75851J — CLIP(FOR ROCKER PANEL MOULDING) (1 parts) 75867A — CLIP, ROCKER PANEL MOULDING (1 parts) 75861C — PAD, ROCKER PANEL MOULDING (1 parts) 75865C — PROTECTOR, ROCKER PANEL MOULDING, NO.5 (1 parts) 75866B — PROTECTOR, ROCKER PANEL MOULDING, NO.6 (1 parts) 9018906006 — not listed in this catalogue 9015960623 — not listed in this catalogue 9015960477 — not listed in this catalogue 9046722015 — not listed in this catalogue 9046707220 — not listed in this catalogue 9018906006 — not listed in this catalogue 9018906006 — not listed in this catalogue 9018906237 — not listed in this catalogue 9018306019 — not listed in this catalogue 9018904059 — not listed in this catalogue 9016240034 — not listed in this catalogue 75850A — MOULDING ASSY, BODY ROCKER PANEL, RH (8 parts) 75860A — MOULDING ASSY, BODY ROCKER PANEL, LH (8 parts) 75857A — COVER, ROCKER PANEL MOULDING, RH (1 parts) 75858A — COVER, ROCKER PANEL MOULDING, LH (1 parts) 76927D — PROTECTOR, SIDE MUDGUARD, REAR RH (1 parts) 76928D — PROTECTOR, SIDE MUDGUARD, REAR LH (1 parts) 75863C — PROTECTOR, ROCKER PANEL MOULDING, NO.3 (1 parts) 75864B — PROTECTOR, ROCKER PANEL MOULDING, NO.4 (1 parts) 75601A — MOULDING SUB-ASSY, FRONT FENDER, RH (2 parts) 75602A — MOULDING SUB-ASSY, FRONT FENDER, LH (2 parts) 9046707227 — not listed in this catalogue
7547AYB · 16 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
31 parts on this figure
Part number Description Fitment Price
75601A — Moulding Sub-assy, Front Fender, RH
75601-30150 note Moulding Sub-assy, Front Fender, RH
2023-11 → —
AZSH32,KZSM30 ¥2,360
75601-30160 note Moulding Sub-assy, Front Fender, RH
2023-11 → —
AZSH32,KZSM30 Z ¥2,360
75602A — Moulding Sub-assy, Front Fender, LH
75602-30140 note Moulding Sub-assy, Front Fender, LH
2023-11 → —
AZSH32,KZSM30 ¥2,360
75602-30150 note Moulding Sub-assy, Front Fender, LH
2023-11 → —
AZSH32,KZSM30 Z ¥2,360
75850A — Moulding Assy, Body Rocker Panel, RH
75850-30500-A0 note Moulding Assy, Body Rocker Panel, RH
2023-11 → —
AZSH32,KZSM30 Z ¥41,200
75850-30500-A0 note Moulding Assy, Body Rocker Panel, RH
2023-11 → —
AZSH32 G ¥41,200
75850-30500-B0 note Moulding Assy, Body Rocker Panel, RH
2023-11 → —
AZSH32,KZSM30 ¥41,200
75850-30500-B1 note Moulding Assy, Body Rocker Panel, RH
2023-11 → —
AZSH32,KZSM30 ¥41,200
75850-30500-B3 note Moulding Assy, Body Rocker Panel, RH
2023-11 → —
AZSH32,KZSM30 ¥41,200
75850-30500-C0 note Moulding Assy, Body Rocker Panel, RH
2023-11 → —
AZSH32,KZSM30 Z ¥41,200
75850-30500-C0 note Moulding Assy, Body Rocker Panel, RH
2023-11 → —
AZSH32 G ¥41,200
75850-30500-E0 note Moulding Assy, Body Rocker Panel, RH
2023-11 → —
AZSH32,KZSM30 ¥41,200
75851J — Clip(FOR ROCKER PANEL MOULDING)
90467-10161 Clip(FOR ROCKER PANEL MOULDING)
2023-11 → —
AZSH32,KZSM30 ¥90
75857A — Cover, Rocker Panel Moulding, RH
75857-30090 Cover, Rocker Panel Moulding, RH
2023-11 → —
AZSH32,KZSM30 ¥1,240
75858A — Cover, Rocker Panel Moulding, LH
75858-30090 Cover, Rocker Panel Moulding, LH
2023-11 → —
AZSH32,KZSM30 ¥1,240
75860A — Moulding Assy, Body Rocker Panel, LH
75860-30510-A0 note Moulding Assy, Body Rocker Panel, LH
2023-11 → —
AZSH32,KZSM30 Z ¥41,200
75860-30510-A0 note Moulding Assy, Body Rocker Panel, LH
2023-11 → —
AZSH32 G ¥41,200
75860-30510-B0 note Moulding Assy, Body Rocker Panel, LH
2023-11 → —
AZSH32,KZSM30 ¥41,200
75860-30510-B1 note Moulding Assy, Body Rocker Panel, LH
2023-11 → —
AZSH32,KZSM30 ¥41,200
75860-30510-B3 note Moulding Assy, Body Rocker Panel, LH
2023-11 → —
AZSH32,KZSM30 ¥41,200
75860-30510-C0 note Moulding Assy, Body Rocker Panel, LH
2023-11 → —
AZSH32,KZSM30 Z ¥41,200
75860-30510-C0 note Moulding Assy, Body Rocker Panel, LH
2023-11 → —
AZSH32 G ¥41,200
75860-30510-E0 note Moulding Assy, Body Rocker Panel, LH
2023-11 → —
AZSH32,KZSM30 ¥41,200
75861C — Pad, Rocker Panel Moulding
75861-62040 Pad, Rocker Panel Moulding
2023-11 → —
AZSH32,KZSM30 ¥620
75863C — Protector, Rocker Panel Moulding, NO.3
75863-30130 Protector, Rocker Panel Moulding, NO.3
2023-11 → —
AZSH32,KZSM30 ¥3,470
75864B — Protector, Rocker Panel Moulding, NO.4
75864-30090 Protector, Rocker Panel Moulding, NO.4
2023-11 → —
AZSH32,KZSM30 ¥3,470
75865C — Protector, Rocker Panel Moulding, NO.5
75865-62010 Protector, Rocker Panel Moulding, NO.5
2023-11 → —
AZSH32,KZSM30 ¥1,280
75866B — Protector, Rocker Panel Moulding, NO.6
75866-62010 Protector, Rocker Panel Moulding, NO.6
2023-11 → —
AZSH32,KZSM30 ¥1,280
75867A — Clip, Rocker Panel Moulding
75867-33050 Clip, Rocker Panel Moulding
2023-11 → —
AZSH32,KZSM30 ¥210
76927D — Protector, Side Mudguard, Rear RH
76927-30010 Protector, Side Mudguard, Rear RH
2023-11 → —
AZSH32,KZSM30 ¥890
76928D — Protector, Side Mudguard, Rear LH
76927-30010 Protector, Side Mudguard, Rear LH
2023-11 → —
AZSH32,KZSM30 ¥890
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
