Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

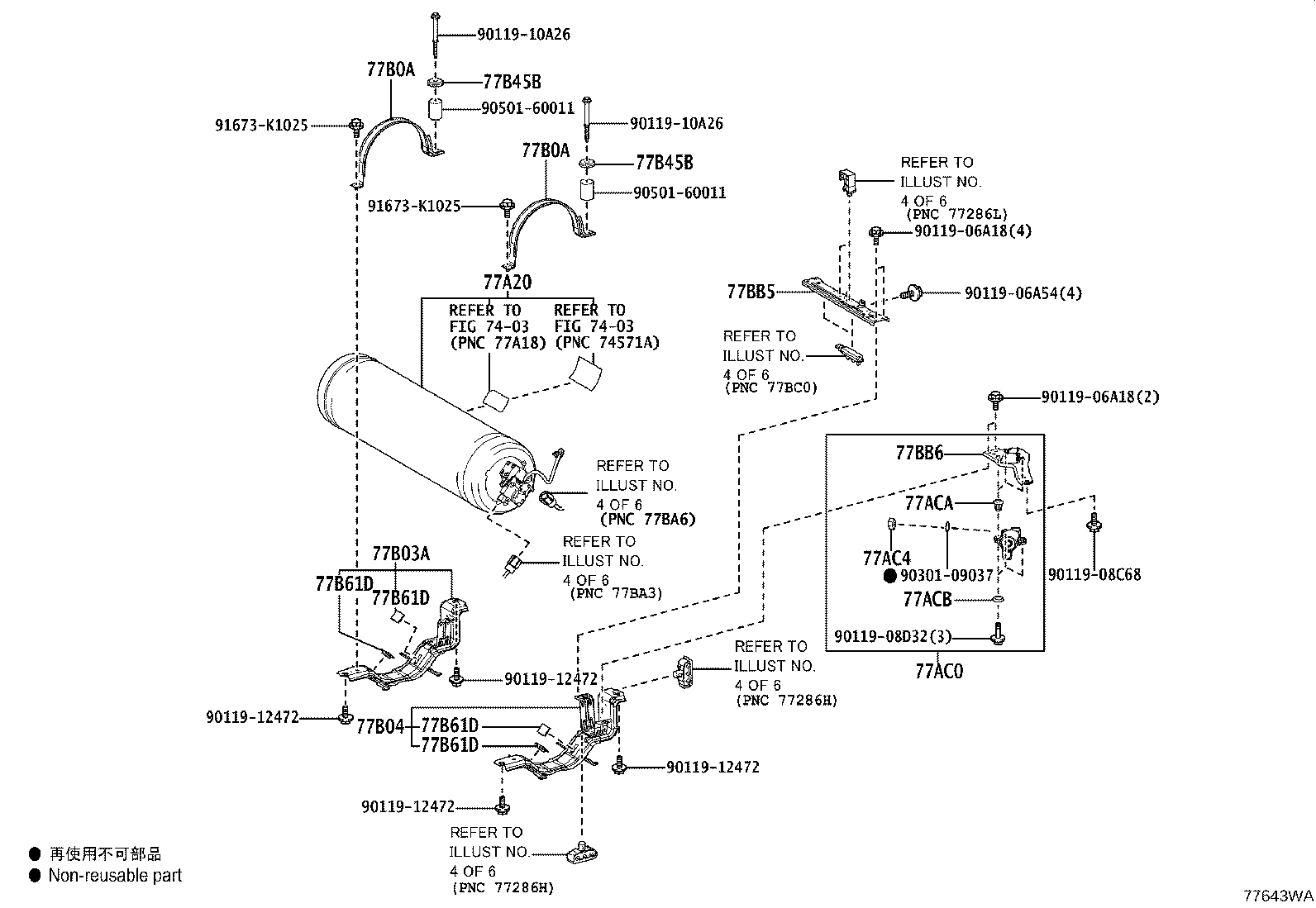

Exploded illustration 77643WA 77B0A — BAND SUB-ASSY, HYDROGEN TANK, NO.2 (1 parts) 77B0A — BAND SUB-ASSY, HYDROGEN TANK, NO.2 (1 parts) 77BB5 — BRACKET, HYDROGEN TANK, NO.1 (1 parts) 9050160011 — not listed in this catalogue 91673K1025 — not listed in this catalogue 91673K1025 — not listed in this catalogue 9011906A18 — not listed in this catalogue 9011908C68 — not listed in this catalogue 9011912472 — not listed in this catalogue 9011912472 — not listed in this catalogue 9011912472 — not listed in this catalogue 9011908D32 — not listed in this catalogue 9011912472 — not listed in this catalogue 77A20 — TANK ASSY, HYDROGEN, NO.2 (1 parts) 77B04 — FRAME SUB-ASSY, HYDROGEN TANK, NO.2 LH (1 parts) 77B03A — FRAME SUB-ASSY, HYDROGEN TANK, NO.2 RH (1 parts) 77B61D — SEAT, HYDROGEN TANK FRAME, NO.3 (1 parts) 77B61D — SEAT, HYDROGEN TANK FRAME, NO.3 (1 parts) 77B61D — SEAT, HYDROGEN TANK FRAME, NO.3 (1 parts) 77B61D — SEAT, HYDROGEN TANK FRAME, NO.3 (1 parts) 77ACA — CUSHION, HYDROGEN SUPPLY REGULATOR, UPPER (1 parts) 77BB6 — BRACKET, HYDROGEN TANK, NO.2 (1 parts) 77ACB — CUSHION, HYDROGEN SUPPLY REGULATOR, LOWER (1 parts) 7403 — not listed in this catalogue 7403 — not listed in this catalogue 9011906A54 — not listed in this catalogue 9011906A18 — not listed in this catalogue 77B45B — CUP, HYDROGEN TANK SPRING BOLT, NO.2 (1 parts) 9050160011 — not listed in this catalogue 9011910A26 — not listed in this catalogue 77B45B — CUP, HYDROGEN TANK SPRING BOLT, NO.2 (1 parts) 9011910A26 — not listed in this catalogue 77AC0 — REGULATOR ASSY, HYDROGEN SUPPLY (1 parts) 77AC4 — PLUG, HYDROGEN SUPPLY REGULATOR, NO.1 (1 parts) 9030109037 — not listed in this catalogue
77643WA · 17 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
12 parts on this figure
Part number Description Fitment Price
77A20 — Tank Assy, Hydrogen, NO.2
77A20-62082 Tank Assy, Hydrogen, NO.2
2023-11 → —
KZSM30 ¥530,000
77AC0 — Regulator Assy, Hydrogen Supply
77AC0-62040 Regulator Assy, Hydrogen Supply
2023-11 → —
KZSM30 ¥117,000
77AC4 — Plug, Hydrogen Supply Regulator, NO.1
77AC4-62020 Plug, Hydrogen Supply Regulator, NO.1
2023-11 → —
KZSM30 ¥2,270
77ACA — Cushion, Hydrogen Supply Regulator, Upper
77ACA-62010 Cushion, Hydrogen Supply Regulator, Upper
2023-11 → —
KZSM30 ¥210
77ACB — Cushion, Hydrogen Supply Regulator, Lower
77ACB-62010 Cushion, Hydrogen Supply Regulator, Lower
2023-11 → —
KZSM30 ¥140
77B03A — Frame Sub-assy, Hydrogen Tank, NO.2 RH
77B03-62020 Frame Sub-assy, Hydrogen Tank, NO.2 RH
2023-11 → —
KZSM30 ¥10,500
77B04 — Frame Sub-assy, Hydrogen Tank, NO.2 LH
77B04-62010 Frame Sub-assy, Hydrogen Tank, NO.2 LH
2023-11 → —
KZSM30 ¥10,500
77B0A — Band Sub-assy, Hydrogen Tank, NO.2
77B0A-62010 Band Sub-assy, Hydrogen Tank, NO.2
2023-11 → —
KZSM30 ¥2,280
77B45B — Cup, Hydrogen Tank Spring Bolt, NO.2
77B45-62030 Cup, Hydrogen Tank Spring Bolt, NO.2
2023-11 → —
KZSM30 ¥580
77B61D — Seat, Hydrogen Tank Frame, NO.3
77B61-62021 Seat, Hydrogen Tank Frame, NO.3
2023-11 → —
KZSM30 ¥210
77BB5 — Bracket, Hydrogen Tank, NO.1
77BB5-62010 Bracket, Hydrogen Tank, NO.1
2023-11 → —
KZSM30 ¥4,710
77BB6 — Bracket, Hydrogen Tank, NO.2
77BB6-62010 Bracket, Hydrogen Tank, NO.2
2023-11 → —
KZSM30 ¥3,560
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
