Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

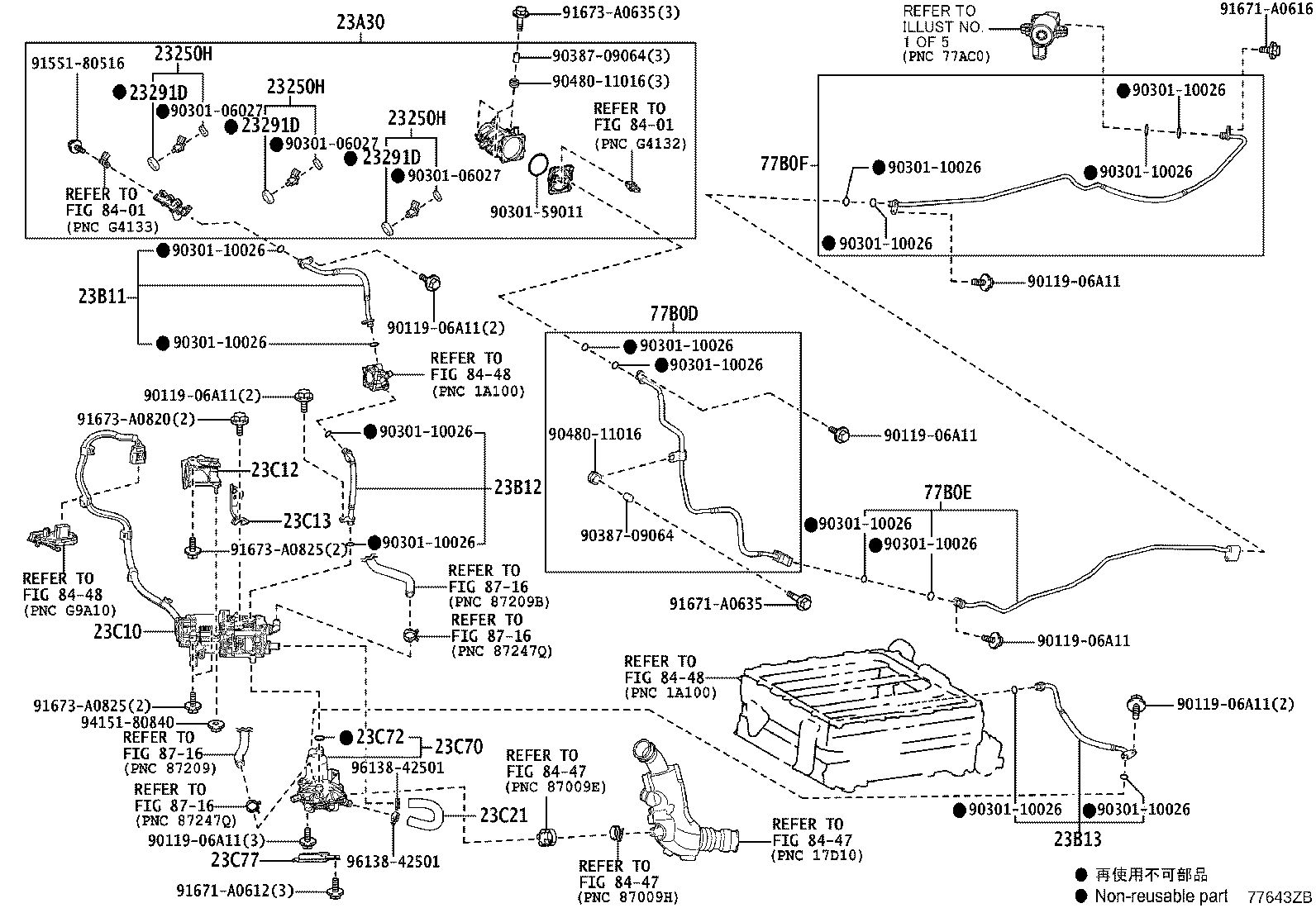

Exploded illustration 77643ZB 8447 — not listed in this catalogue 8447 — not listed in this catalogue 8447 — not listed in this catalogue 8716 — not listed in this catalogue 8716 — not listed in this catalogue 23291D — INSULATOR, INJECTOR VIBRATION (1 parts) 77B0D — TUBE SUB-ASSY, HYDROGEN SUPPLY, NO.1 (1 parts) 23C10 — PUMP ASSY, HYDROGEN RECIRCULATION (1 parts) 23C77 — COVER, HYDROGEN RECIRCULATION SEPARATOR (1 parts) 23C12 — BRACKET, HYDROGEN PUMP, NO.1 (1 parts) 23B11 — TUBE, HYDROGEN, NO.1 (1 parts) 23C13 — BRACKET, HYDROGEN PUMP, NO.2 (1 parts) 23B12 — TUBE, HYDROGEN, NO.2 (1 parts) 77B0F — TUBE SUB-ASSY, HYDROGEN SUPPLY, NO.3 (1 parts) 77B0E — TUBE SUB-ASSY, HYDROGEN SUPPLY, NO.2 (1 parts) 23A30 — REGULATOR ASSY, HYDROGEN SUPPLY PRESSURE (1 parts) 9030159011 — not listed in this catalogue 9030110026 — not listed in this catalogue 9030110026 — not listed in this catalogue 9030110026 — not listed in this catalogue 9030110026 — not listed in this catalogue 9030110026 — not listed in this catalogue 9030110026 — not listed in this catalogue 91671A0616 — not listed in this catalogue 9030110026 — not listed in this catalogue 9030110026 — not listed in this catalogue 9038709064 — not listed in this catalogue 9030110026 — not listed in this catalogue 9030110026 — not listed in this catalogue 9613842501 — not listed in this catalogue 9613842501 — not listed in this catalogue 91671A0612 — not listed in this catalogue 91673A0820 — not listed in this catalogue 9030110026 — not listed in this catalogue 9030110026 — not listed in this catalogue 9030110026 — not listed in this catalogue 9030110026 — not listed in this catalogue 91673A0825 — not listed in this catalogue 91671A0635 — not listed in this catalogue 9011906A11 — not listed in this catalogue 9011906A11 — not listed in this catalogue 9011906A11 — not listed in this catalogue 9011906A11 — not listed in this catalogue 9011906A11 — not listed in this catalogue 9011906A11 — not listed in this catalogue 9048011016 — not listed in this catalogue 9155180516 — not listed in this catalogue 9038709064 — not listed in this catalogue 91673A0635 — not listed in this catalogue 9030106027 — not listed in this catalogue 9048011016 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 9415180840 — not listed in this catalogue 9011906A11 — not listed in this catalogue 91673A0825 — not listed in this catalogue 8448 — not listed in this catalogue 8448 — not listed in this catalogue 23C70 — SEPARATOR ASSY, HYDROGEN RECIRCULATION (1 parts) 23C72 — GASKET, HYDROGEN RECIRCULATION SEPARATOR (1 parts) 23C21 — HOSE, HYDROGEN PUMP COOLING INLET (1 parts) 23B13 — TUBE, HYDROGEN, NO.3 (1 parts) 8716 — not listed in this catalogue 8716 — not listed in this catalogue 8448 — not listed in this catalogue 23250H — INJECTOR ASSY, FUEL (1 parts) 23291D — INSULATOR, INJECTOR VIBRATION (1 parts) 9030106027 — not listed in this catalogue 23250H — INJECTOR ASSY, FUEL (1 parts) 23291D — INSULATOR, INJECTOR VIBRATION (1 parts) 9030106027 — not listed in this catalogue 23250H — INJECTOR ASSY, FUEL (1 parts)
77643ZB · 20 callouts, 52 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
23250H — Injector Assy, Fuel
23250-77010 Injector Assy, Fuel
2023-11 → —
MOTOR KZSM30 ¥31,600
23291D — Insulator, Injector Vibration
23291-77010 Insulator, Injector Vibration
2023-11 → —
MOTOR KZSM30 ¥230
23A30 — Regulator Assy, Hydrogen Supply Pressure
23A30-77030 Regulator Assy, Hydrogen Supply Pressure
2023-11 → —
MOTOR KZSM30 ¥57,300
23B11 — Tube, Hydrogen, NO.1
23B11-77030 Tube, Hydrogen, NO.1
2023-11 → —
MOTOR KZSM30 ¥5,500
23B12 — Tube, Hydrogen, NO.2
23B12-77020 Tube, Hydrogen, NO.2
2023-11 → —
MOTOR KZSM30 ¥5,700
23B13 — Tube, Hydrogen, NO.3
23B13-77020 Tube, Hydrogen, NO.3
2023-11 → —
MOTOR KZSM30 ¥6,500
23C10 — Pump Assy, Hydrogen Recirculation
23C10-77071 Pump Assy, Hydrogen Recirculation
2023-11 → —
MOTOR KZSM30 ¥136,000
23C12 — Bracket, Hydrogen Pump, NO.1
23C12-77030 Bracket, Hydrogen Pump, NO.1
2023-11 → —
MOTOR KZSM30 ¥1,550
23C13 — Bracket, Hydrogen Pump, NO.2
23C13-77030 Bracket, Hydrogen Pump, NO.2
2023-11 → —
MOTOR KZSM30 ¥730
23C21 — Hose, Hydrogen Pump Cooling Inlet
23C21-77030 Hose, Hydrogen Pump Cooling Inlet
2023-11 → —
MOTOR KZSM30 ¥1,270
23C70 — Separator Assy, Hydrogen Recirculation
23C70-77031 Separator Assy, Hydrogen Recirculation
2023-11 → —
MOTOR KZSM30 ¥17,300
23C72 — Gasket, Hydrogen Recirculation Separator
23C72-77010 Gasket, Hydrogen Recirculation Separator
2023-11 → —
MOTOR KZSM30 ¥340
23C77 — Cover, Hydrogen Recirculation Separator
23C77-77010 Cover, Hydrogen Recirculation Separator
2023-11 → —
MOTOR KZSM30 ¥1,050
77B0D — Tube Sub-assy, Hydrogen Supply, NO.1
77B0D-62020 Tube Sub-assy, Hydrogen Supply, NO.1
2023-11 → —
KZSM30 ¥4,280
77B0E — Tube Sub-assy, Hydrogen Supply, NO.2
77B0E-62020 Tube Sub-assy, Hydrogen Supply, NO.2
2023-11 → —
KZSM30 ¥2,760
77B0F — Tube Sub-assy, Hydrogen Supply, NO.3
77B0F-30010 Tube Sub-assy, Hydrogen Supply, NO.3
2023-11 → —
KZSM30 ¥3,860
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
