Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

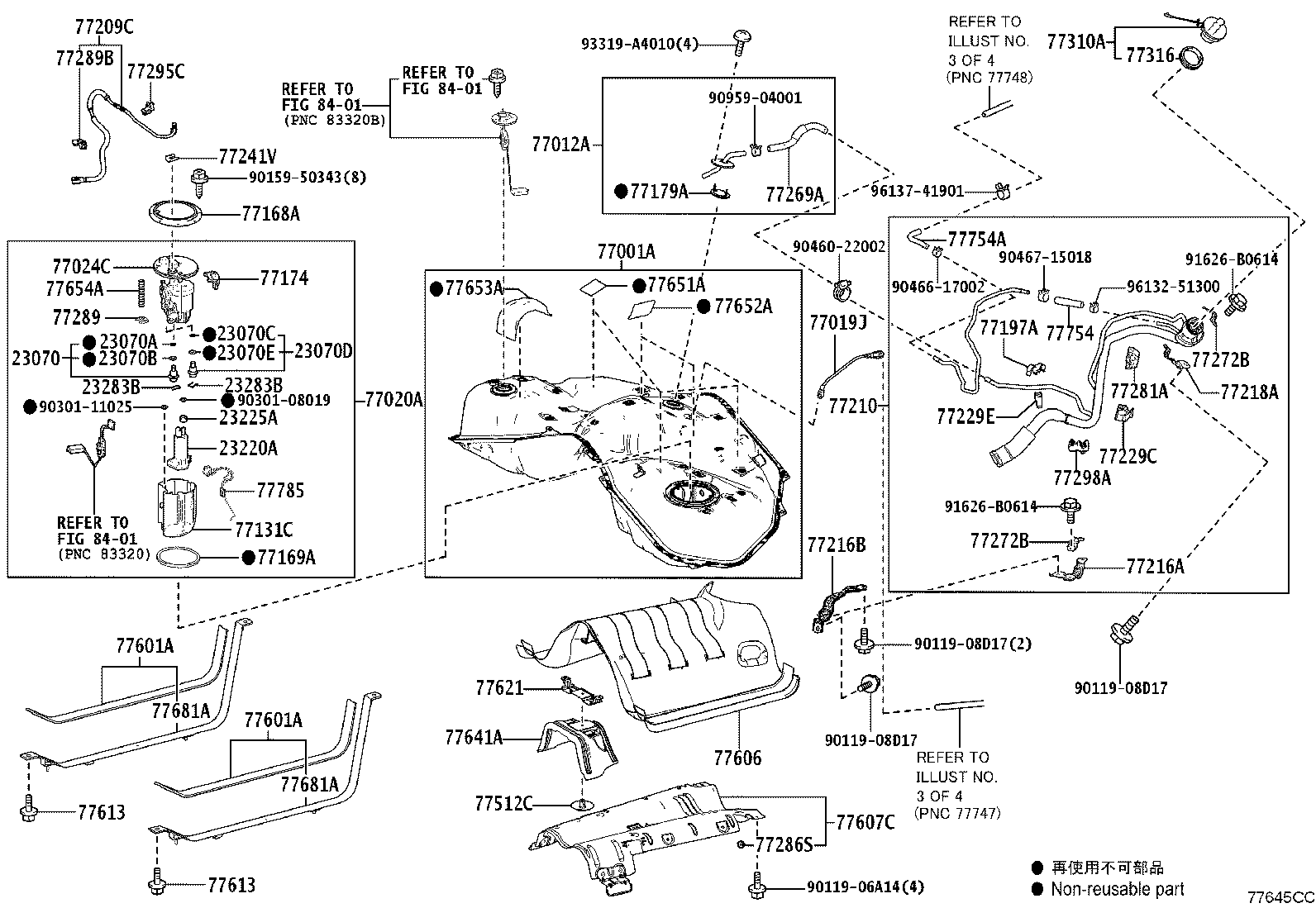

Exploded illustration 77645CC 9015950343 — not listed in this catalogue 93319A4010 — not listed in this catalogue 9046715018 — not listed in this catalogue 9046617002 — not listed in this catalogue 91626B0614 — not listed in this catalogue 9011908D17 — not listed in this catalogue 9011908D17 — not listed in this catalogue 9011908D17 — not listed in this catalogue 91626B0614 — not listed in this catalogue 9613251300 — not listed in this catalogue 9613741901 — not listed in this catalogue 9046022002 — not listed in this catalogue 9095904001 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 77169A — GASKET, FUEL SUCTION TUBE SET (1 parts) 23070D — VALVE ASSY, FUEL MAIN, NO.2 (1 parts) 23070C — RING, O, NO.3(FOR FUEL MAIN VALVE) (1 parts) 23070E — RING, O, NO.4(FOR FUEL MAIN VALVE) (1 parts) 23283B — HOLDER, FUEL PRESSURE REGULATOR (1 parts) 23283B — HOLDER, FUEL PRESSURE REGULATOR (1 parts) 23070A — RING, O, NO.1(FOR FUEL MAIN VALVE) (1 parts) 23070B — RING, O, NO.2(FOR FUEL MAIN VALVE) (1 parts) 23070 — VALVE ASSY, FUEL MAIN (1 parts) 23220A — PUMP ASSY, FUEL W/FILTER (1 parts) 23225A — SPACER, FUEL PUMP (1 parts) 9030108019 — not listed in this catalogue 9030111025 — not listed in this catalogue 8401 — not listed in this catalogue 77785 — HARNESS, FUEL PUMP (1 parts) 77024C — PLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER (1 parts) 77131C — SUB-TANK, FUEL, NO.1 (1 parts) 77289 — HOLDER, FUEL TANK PIPE SETTING (1 parts) 77654A — CUSHION, FUEL TANK, NO.4 (1 parts) 77174 — SUPPORT, FUEL SUCTION, NO.1 (1 parts) 77020A — TUBE ASSY, FUEL SUCTION W/PUMP & GAGE (1 parts) 77241V — CLIP, TUBE JOINT (1 parts) 77168A — PLATE, FUEL TANK VENT TUBE SET (1 parts) 77209C — TUBE SUB-ASSY, FUEL TANK MAIN (1 parts) 77295C — GROMMET, FUEL TUBE (1 parts) 77289B — CLAMP, FUEL TUBE, NO.3 (1 parts) 77269A — HOSE, FUEL TANK BREATHER (1 parts) 77179A — GASKET, FUEL TANK BREATHER TUBE (1 parts) 77019J — TUBE SUB-ASSY, FUEL TANK TO CANISTER (1 parts) 77601A — BAND SUB-ASSY, FUEL TANK, NO.1 (1 parts) 77681A — SEAT, FUEL TANK BAND (1 parts) 77601A — BAND SUB-ASSY, FUEL TANK, NO.1 (1 parts) 77681A — SEAT, FUEL TANK BAND (1 parts) 77613 — BOLT, FUEL TANK BAND SET (1 parts) 77613 — BOLT, FUEL TANK BAND SET (1 parts) 9011906A14 — not listed in this catalogue 77606 — PROTECTOR SUB-ASSY, FUEL TANK, NO.1 (1 parts) 77001A — TANK SUB-ASSY, FUEL (1 parts) 77651A — CUSHION, FUEL TANK, NO.1 (1 parts) 77652A — CUSHION, FUEL TANK, NO.2 (1 parts) 77653A — CUSHION, FUEL TANK, NO.3 (1 parts) 77607C — PROTECTOR SUB-ASSY, FUEL TANK, NO.2 (1 parts) 77286S — CUSHION, FUEL TANK PROTECTOR (1 parts) 77310A — CAP ASSY, FUEL TANK (1 parts) 77316 — GASKET, FUEL TANK CAP (1 parts) 77512C — BRACKET, FUEL TANK (1 parts) 77641A — PROTECTOR, FUEL TANK, NO.1 (1 parts) 77621 — BRACKET, FUEL TANK PROTECTOR (1 parts) 77012A — TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 (1 parts) 77197A — CLAMP, EVAPORATION VENT TUBE, NO.2 (1 parts) 77754A — HOSE, CHARCOAL CANISTER OUTLET, NO.2 (1 parts) 77229E — CLAMP, BREATHER TUBE (1 parts) 77216B — SUPPORT, FUEL TANK FILLER PIPE, NO.2 (1 parts) 77218A — SUPPORT, FUEL TANK FILLER PIPE, NO.3 (1 parts) 77281A — CLAMP, FUEL FILLER PIPE (1 parts) 77272B — SUPPORT, BREATHER TUBE, NO.1 (1 parts) 77272B — SUPPORT, BREATHER TUBE, NO.1 (1 parts) 77754 — HOSE, CHARCOAL CANISTER OUTLET, NO.1 (1 parts) 77229C — CLAMP, BREATHER TUBE (1 parts) 77298A — CLAMP, FUEL TUBE, NO.4 (1 parts) 77210 — PIPE ASSY, FUEL TANK FILLER (1 parts) 77216A — SUPPORT, FUEL TANK FILLER PIPE, NO.1 (1 parts)
77645CC · 58 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
53 parts on this figure
Part number Description Fitment Price
23070 — Valve Assy, Fuel Main
23070-31030 Valve Assy, Fuel Main
2023-11 → —
A25 AZSH32 ¥2,560
23070A — Ring, O, NO.1(FOR FUEL MAIN VALVE)
90301-04013 Ring, O, NO.1(FOR FUEL MAIN VALVE)
2023-11 → —
A25 AZSH32 ¥140
23070B — Ring, O, NO.2(FOR FUEL MAIN VALVE)
90301-15024 Ring, O, NO.2(FOR FUEL MAIN VALVE)
2023-11 → —
A25 AZSH32 ¥140
23070C — Ring, O, NO.3(FOR FUEL MAIN VALVE)
90301-04013 Ring, O, NO.3(FOR FUEL MAIN VALVE)
2023-11 → —
A25 AZSH32 ¥140
23070D — Valve Assy, Fuel Main, NO.2
23070-36010 Valve Assy, Fuel Main, NO.2
2023-11 → —
A25 AZSH32 ¥2,560
23070E — Ring, O, NO.4(FOR FUEL MAIN VALVE)
90301-15024 Ring, O, NO.4(FOR FUEL MAIN VALVE)
2023-11 → —
A25 AZSH32 ¥140
23220A — Pump Assy, Fuel W/Filter
23220-25030 Pump Assy, Fuel W/Filter
2023-11 → —
A25 AZSH32 ¥23,900
23225A — Spacer, Fuel Pump
23225-31010 Spacer, Fuel Pump
2023-11 → —
A25 AZSH32 ¥40
23283B — Holder, Fuel Pressure Regulator
23283-36010 Holder, Fuel Pressure Regulator
2023-11 → —
A25 AZSH32 ¥110
77001A — Tank Sub-assy, Fuel
77001-30760 Tank Sub-assy, Fuel
2023-11 → —
AZSH32 ¥34,500
77012A — Tube Sub-assy, Fuel Tank Breather, NO.1
77012-11050 Tube Sub-assy, Fuel Tank Breather, NO.1
2023-11 → —
AZSH32 —
77019J — Tube Sub-assy, Fuel Tank TO Canister
77019-11010 Tube Sub-assy, Fuel Tank TO Canister
2023-11 → —
AZSH32 —
77020A — Tube Assy, Fuel Suction W/Pump & Gage
77020-30520 Tube Assy, Fuel Suction W/Pump & Gage
2023-11 → —
AZSH32 ¥42,500
77024C — Plate Sub-assy, Fuel Suction W/Fuel Filter
77024-30260 Plate Sub-assy, Fuel Suction W/Fuel Filter
2023-11 → —
AZSH32 ¥6,300
77131C — Sub-tank, Fuel, NO.1
77131-11010 Sub-tank, Fuel, NO.1
2023-11 → —
AZSH32 ¥1,350
77168A — Plate, Fuel Tank Vent Tube Set
77168-52020 Plate, Fuel Tank Vent Tube Set
2023-11 → —
AZSH32 ¥1,170
77169A — Gasket, Fuel Suction Tube Set
77169-53010 Gasket, Fuel Suction Tube Set
2023-11 → —
AZSH32 ¥1,170
77174 — Support, Fuel Suction, NO.1
77174-48040 Support, Fuel Suction, NO.1
2023-11 → —
AZSH32 ¥400
77179A — Gasket, Fuel Tank Breather Tube
77179-20040 Gasket, Fuel Tank Breather Tube
2023-11 → —
AZSH32 ¥260
77197A — Clamp, Evaporation Vent Tube, NO.2
77197-52010 Clamp, Evaporation Vent Tube, NO.2
2023-11 → —
AZSH32 ¥120
77209C — Tube Sub-assy, Fuel Tank Main
77209-30440 Tube Sub-assy, Fuel Tank Main
2023-11 → —
AZSH32 ¥2,520
77210 — Pipe Assy, Fuel Tank Filler
77210-30300 Pipe Assy, Fuel Tank Filler
2023-11 → —
AZSH32 ¥16,100
77216A — Support, Fuel Tank Filler Pipe, NO.1
77216-30070 Support, Fuel Tank Filler Pipe, NO.1
2023-11 → —
AZSH32 ¥860
77216B — Support, Fuel Tank Filler Pipe, NO.2
77216-30100 Support, Fuel Tank Filler Pipe, NO.2
2023-11 → —
AZSH32 ¥1,420
77218A — Support, Fuel Tank Filler Pipe, NO.3
77218-30090 Support, Fuel Tank Filler Pipe, NO.3
2023-11 → —
AZSH32 ¥840
77229C — Clamp, Breather Tube
77229-11120 Clamp, Breather Tube
2023-11 → —
AZSH32 ¥580
77229E — Clamp, Breather Tube
77229-50080 Clamp, Breather Tube
2023-11 → —
AZSH32 ¥410
77241V — Clip, Tube Joint
77241-33011 Clip, Tube Joint
2023-11 → —
AZSH32 ¥80
77269A — Hose, Fuel Tank Breather
77269-11020 Hose, Fuel Tank Breather
2023-11 → —
AZSH32 —
77272B — Support, Breather Tube, NO.1
77272-11030 Support, Breather Tube, NO.1
2023-11 → —
AZSH32 —
77281A — Clamp, Fuel Filler Pipe
77281-30190 Clamp, Fuel Filler Pipe
2023-11 → —
AZSH32 ¥570
77286S — Cushion, Fuel Tank Protector
77286-12110 Cushion, Fuel Tank Protector
2023-11 → —
AZSH32 ¥200
77289 — Holder, Fuel Tank Pipe Setting
77289-52090 Holder, Fuel Tank Pipe Setting
2023-11 → —
AZSH32 ¥470
77289B — Clamp, Fuel Tube, NO.3
77289-11030 Clamp, Fuel Tube, NO.3
2023-11 → —
AZSH32 ¥270
77295C — Grommet, Fuel Tube
77295-11010 Grommet, Fuel Tube
2023-11 → —
AZSH32 ¥330
77298A — Clamp, Fuel Tube, NO.4
77298-30230 Clamp, Fuel Tube, NO.4
2023-11 → —
AZSH32 ¥460
77310A — Cap Assy, Fuel Tank
77300-48020 Cap Assy, Fuel Tank
2023-11 → —
AZSH32 ¥1,960
77316 — Gasket, Fuel Tank Cap
77316-75020 Gasket, Fuel Tank Cap
2023-11 → —
AZSH32 ¥200
77512C — Bracket, Fuel Tank
77512-35140 Bracket, Fuel Tank
2023-11 → —
AZSH32 ¥230
77601A — Band Sub-assy, Fuel Tank, NO.1
77601-11040 Band Sub-assy, Fuel Tank, NO.1
2023-11 → —
AZSH32 ¥1,830
77606 — Protector Sub-assy, Fuel Tank, NO.1
77606-11020 Protector Sub-assy, Fuel Tank, NO.1
2023-11 → —
AZSH32 ¥9,900
77607C — Protector Sub-assy, Fuel Tank, NO.2
77607-11010 Protector Sub-assy, Fuel Tank, NO.2
2023-11 → —
AZSH32 ¥5,100
77613 — Bolt, Fuel Tank Band Set
90119-10A05 Bolt, Fuel Tank Band Set
2023-11 → —
AZSH32 ¥120
77621 — Bracket, Fuel Tank Protector
77621-50040 Bracket, Fuel Tank Protector
2023-11 → —
AZSH32 ¥530
77641A — Protector, Fuel Tank, NO.1
77641-50040 Protector, Fuel Tank, NO.1
2023-11 → —
AZSH32 ¥1,810
77651A — Cushion, Fuel Tank, NO.1
77651-20090 Cushion, Fuel Tank, NO.1
2023-11 → —
AZSH32 ¥250
77652A — Cushion, Fuel Tank, NO.2
77651-36130 Cushion, Fuel Tank, NO.2
2023-11 → —
AZSH32 ¥430
77653A — Cushion, Fuel Tank, NO.3
77653-35050 Cushion, Fuel Tank, NO.3
2023-11 → —
AZSH32 ¥650
77654A — Cushion, Fuel Tank, NO.4
77652-22090 Cushion, Fuel Tank, NO.4
2023-11 → —
AZSH32 ¥340
77681A — Seat, Fuel Tank Band
77681-21020 Seat, Fuel Tank Band
2023-11 → —
AZSH32 ¥660
77754 — Hose, Charcoal Canister Outlet, NO.1
77754-11050 note Hose, Charcoal Canister Outlet, NO.1
2023-11 → —
AZSH32 ¥360
77754A — Hose, Charcoal Canister Outlet, NO.2
77754-30100 Hose, Charcoal Canister Outlet, NO.2
2023-11 → —
AZSH32 ¥610
77785 — Harness, Fuel Pump
77785-30050 Harness, Fuel Pump
2023-11 → —
AZSH32 ¥870
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
