Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

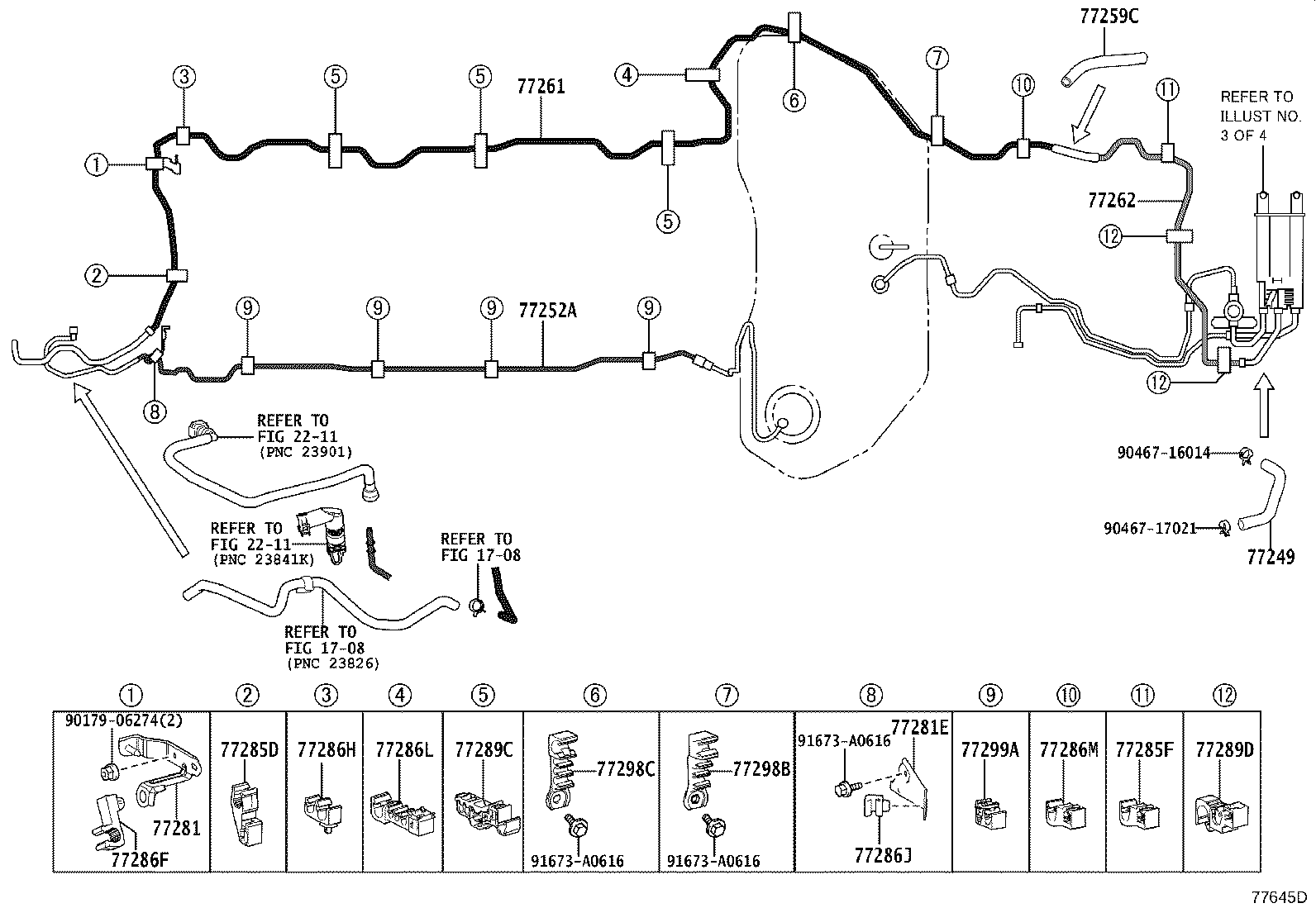

Exploded illustration 77645D 77281E — BRACKET, FUEL MAIN TUBE, NO.1 (1 parts) 77286H — CLAMP, FUEL TUBE, NO.3 (2 parts) 77285D — CLAMP, FUEL TUBE, NO.1 (2 parts) 77261 — TUBE SUB-ASSY, FUEL EMISSION (1 parts) 77262 — TUBE, FUEL EMISSION, NO.2 (1 parts) 77259C — HOSE, FUEL (1 parts) 77249 — HOSE, FUEL EMISSION (1 parts) 77252A — TUBE, FUEL MAIN, NO.2 (1 parts) 77286L — CLAMP, FUEL TUBE, NO.5 (2 parts) 77289C — CLAMP, FUEL TUBE, NO.4 (1 parts) 77286M — CLAMP, FUEL TUBE, NO.6 (1 parts) 77289D — CLAMP, FUEL TUBE, NO.5 (1 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (1 parts) 77299A — CLAMP, FUEL TUBE, NO.5 (1 parts) 77286J — CLAMP, FUEL TUBE, NO.4 (2 parts) 77298C — CLAMP, FUEL TUBE, NO.4 (1 parts) 91673A0616 — not listed in this catalogue 91673A0616 — not listed in this catalogue 77298B — CLAMP, FUEL TUBE, NO.4 (1 parts) 91673A0616 — not listed in this catalogue 9046717021 — not listed in this catalogue 9046716014 — not listed in this catalogue 77281 — BRACKET, FUEL MAIN TUBE, NO.1 (1 parts) 77286F — CLAMP, FUEL TUBE, NO.2 (2 parts) 9017906274 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue
77645D · 19 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
24 parts on this figure
Part number Description Fitment Price
77249 — Hose, Fuel Emission
77249-30070 Hose, Fuel Emission
2023-11 → —
AZSH32 ¥870
77252A — Tube, Fuel Main, NO.2
77252-30640 Tube, Fuel Main, NO.2
2023-11 → —
AZSH32 ¥2,030
77259C — Hose, Fuel
77259-30230 Hose, Fuel
2023-11 → —
AZSH32 ¥620
77261 — Tube Sub-assy, Fuel Emission
77261-30640 Tube Sub-assy, Fuel Emission
2023-11 → —
AZSH32 ¥7,600
77262 — Tube, Fuel Emission, NO.2
77262-30270 Tube, Fuel Emission, NO.2
2023-11 → —
AZSH32 ¥2,150
77281 — Bracket, Fuel Main Tube, NO.1
77281-30170 Bracket, Fuel Main Tube, NO.1
2023-11 → —
AZSH32 ¥540
77281E — Bracket, Fuel Main Tube, NO.1
77281-11070 Bracket, Fuel Main Tube, NO.1
2023-11 → —
AZSH32 ¥350
77285D — Clamp, Fuel Tube, NO.1
77285-62010 Clamp, Fuel Tube, NO.1
2023-11 → —
KZSM30 ¥510
77286-30350 Clamp, Fuel Tube, NO.1
2023-11 → —
AZSH32 ¥510
77285F — Clamp, Fuel Tube, NO.1
77285-11010 Clamp, Fuel Tube, NO.1
2023-11 → —
AZSH32 ¥390
77286F — Clamp, Fuel Tube, NO.2
77286-30330 Clamp, Fuel Tube, NO.2
2023-11 → —
AZSH32 ¥400
77286-62010 Clamp, Fuel Tube, NO.2
2023-11 → —
KZSM30 ¥250
77286H — Clamp, Fuel Tube, NO.3
77285-62020 Clamp, Fuel Tube, NO.3
2023-11 → —
KZSM30 ¥540
77286-11020 Clamp, Fuel Tube, NO.3
2023-11 → —
AZSH32 ¥330
77286J — Clamp, Fuel Tube, NO.4
77285-62030 Clamp, Fuel Tube, NO.4
2023-11 → —
KZSM30 ¥480
77298-30220 Clamp, Fuel Tube, NO.4
2023-11 → —
AZSH32 ¥200
77286L — Clamp, Fuel Tube, NO.5
77286-11010 Clamp, Fuel Tube, NO.5
2023-11 → —
AZSH32 ¥540
77286-62020 Clamp, Fuel Tube, NO.5
2023-11 → —
KZSM30 ¥300
77286M — Clamp, Fuel Tube, NO.6
77285-11010 Clamp, Fuel Tube, NO.6
2023-11 → —
AZSH32 ¥390
77289C — Clamp, Fuel Tube, NO.4
77289-30210 Clamp, Fuel Tube, NO.4
2023-11 → —
AZSH32 ¥620
77289D — Clamp, Fuel Tube, NO.5
77299-30070 Clamp, Fuel Tube, NO.5
2023-11 → —
AZSH32 —
77298B — Clamp, Fuel Tube, NO.4
77298-11020 Clamp, Fuel Tube, NO.4
2023-11 → —
AZSH32 ¥590
77298C — Clamp, Fuel Tube, NO.4
77298-11010 Clamp, Fuel Tube, NO.4
2023-11 → —
AZSH32 ¥530
77299A — Clamp, Fuel Tube, NO.5
77299-30100 Clamp, Fuel Tube, NO.5
2023-11 → —
AZSH32 ¥310
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
