Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

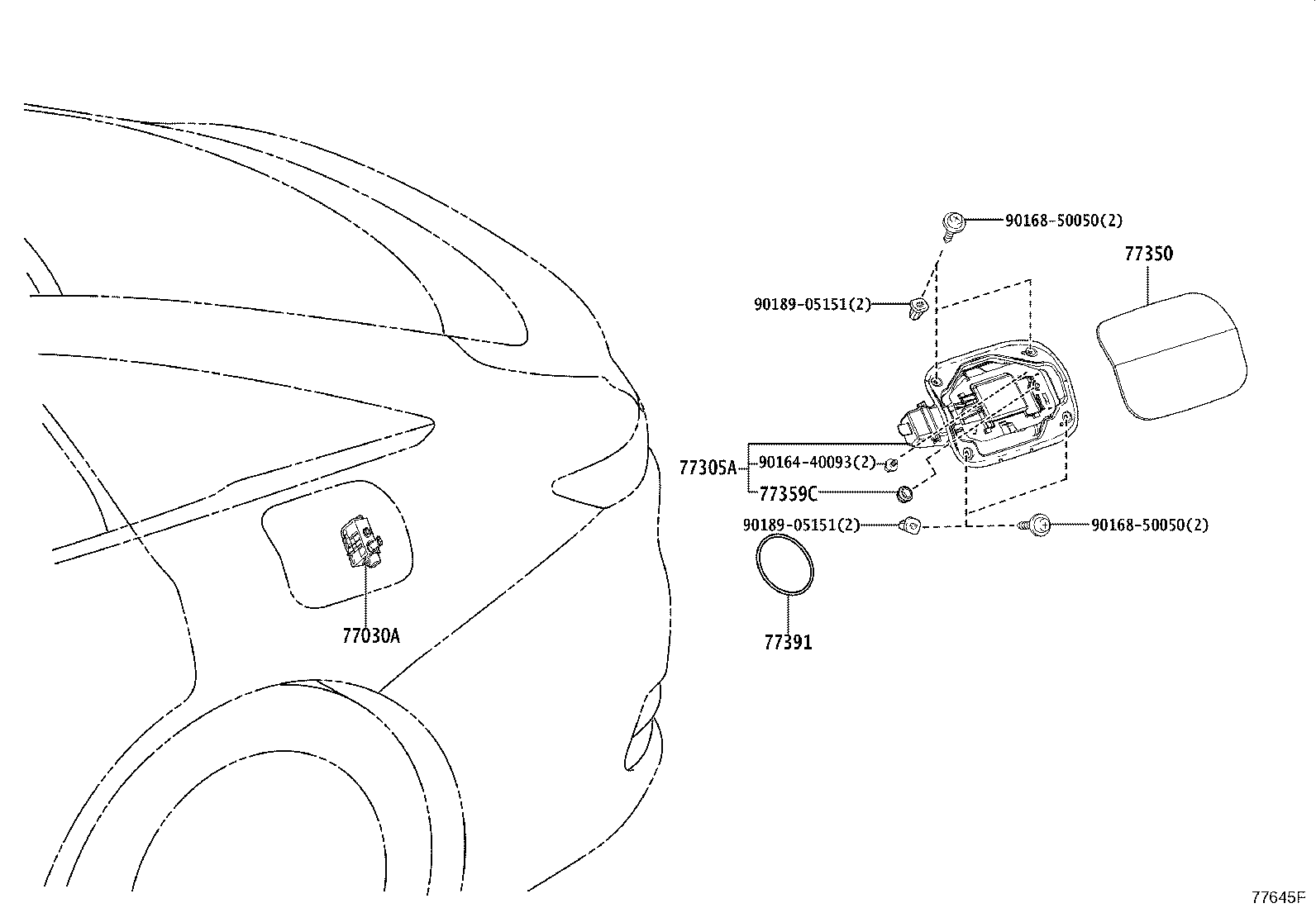

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77030A — Lock Assy, Fuel Lid W/Motor | ||||
| 77030-48120 |
Lock Assy, Fuel Lid W/Motor
2023-11 → —
|
KZSM30 | ¥5,900 | |
| 77030-48130 |
Lock Assy, Fuel Lid W/Motor
2023-11 → —
|
AZSH32 | ¥5,900 | |
| 77305A — Lid Sub-assy, Fuel Filler Opening | ||||
| 77305-30030 |
Lid Sub-assy, Fuel Filler Opening
2023-11 → —
|
KZSM30 | ¥7,600 | |
| 77305-30090 |
Lid Sub-assy, Fuel Filler Opening
2023-11 → —
|
AZSH32 | ¥7,600 | |
| 77350 — Lid Assy, Fuel Filler Opening | ||||
| 77350-30470 |
Lid Assy, Fuel Filler Opening
2023-11 → 2025-04
ended
|
AZSH32,KZSM30 | ¥8,200 | |
| 77359C — Seal, Fuel Filler Opening Lid Lock | ||||
| 77359-42010 |
Seal, Fuel Filler Opening Lid Lock
2023-11 → —
|
AZSH32,KZSM30 | ¥170 | |
| 77391 — Ring, Fuel Inlet Box | ||||
| 77391-12020 |
Ring, Fuel Inlet Box
2023-11 → —
|
AZSH32 | ¥180 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
