Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

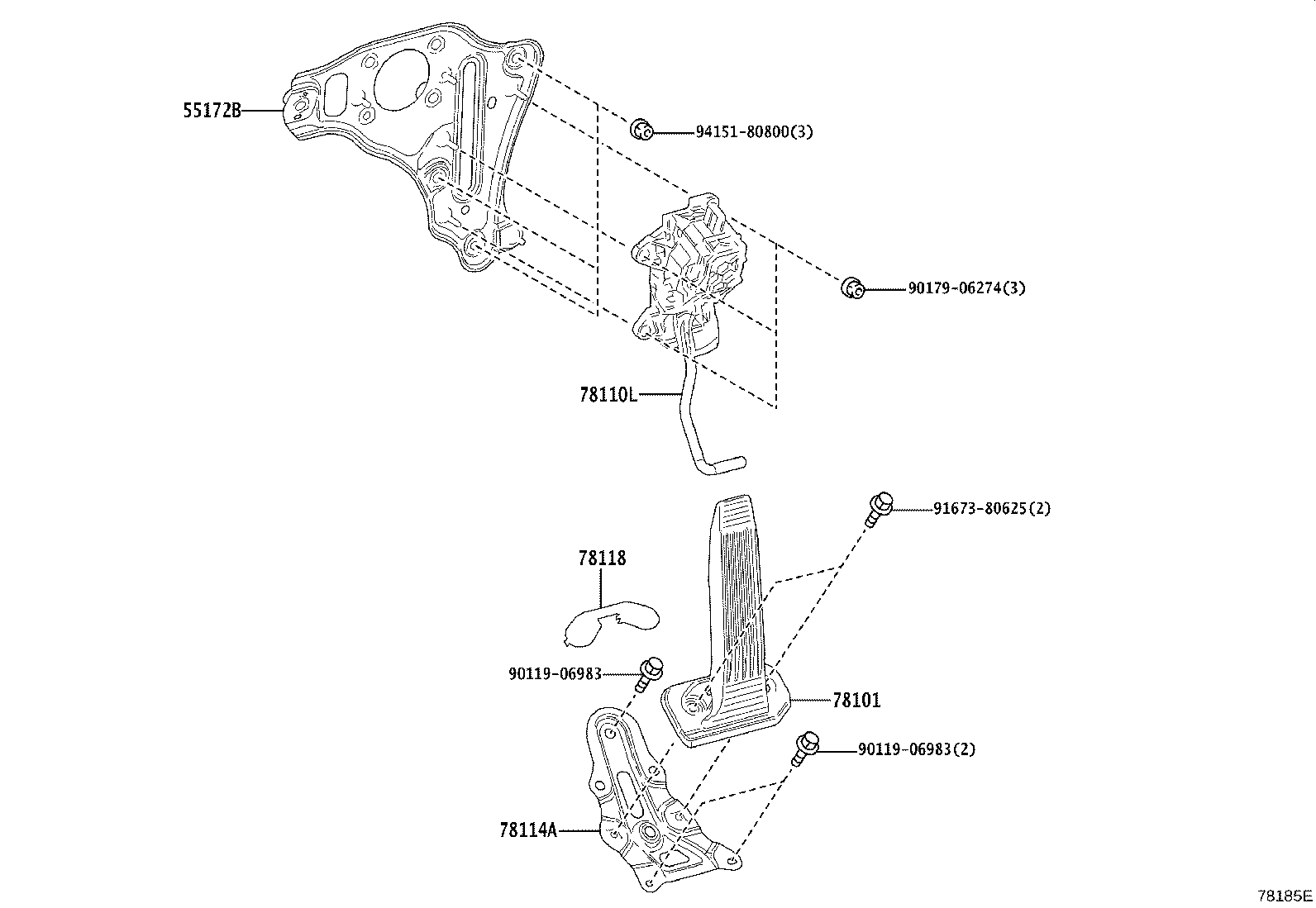

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55172B — Base, Brake Pedal Support | ||||
| 55172-50080 |
Base, Brake Pedal Support
2023-11 → —
|
AZSH32,KZSM30 | ¥2,220 | |
| 78101 — Pedal Sub-assy, Accelerator | ||||
| 78101-50050 |
Pedal Sub-assy, Accelerator
2023-11 → —
|
AZSH32,KZSM30 | ¥1,490 | |
| 78110L — Sensor Assy, Accelerator Pedal | ||||
| 78110-11021 |
Sensor Assy, Accelerator Pedal
2023-11 → —
|
AZSH32 | ¥8,000 | |
| 78110-62020 |
Sensor Assy, Accelerator Pedal
2023-11 → —
|
KZSM30 | ¥7,600 | |
| 78114A — Bracket, Accelerator Pedal Support | ||||
| 78114-11010 |
Bracket, Accelerator Pedal Support
2023-11 → —
|
AZSH32,KZSM30 | ¥1,300 | |
| 78118 — Pad, Accelerator Pedal | ||||
| 78117-11010 |
Pad, Accelerator Pedal
2023-11 → —
|
AZSH32,KZSM30 | ¥200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
