Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

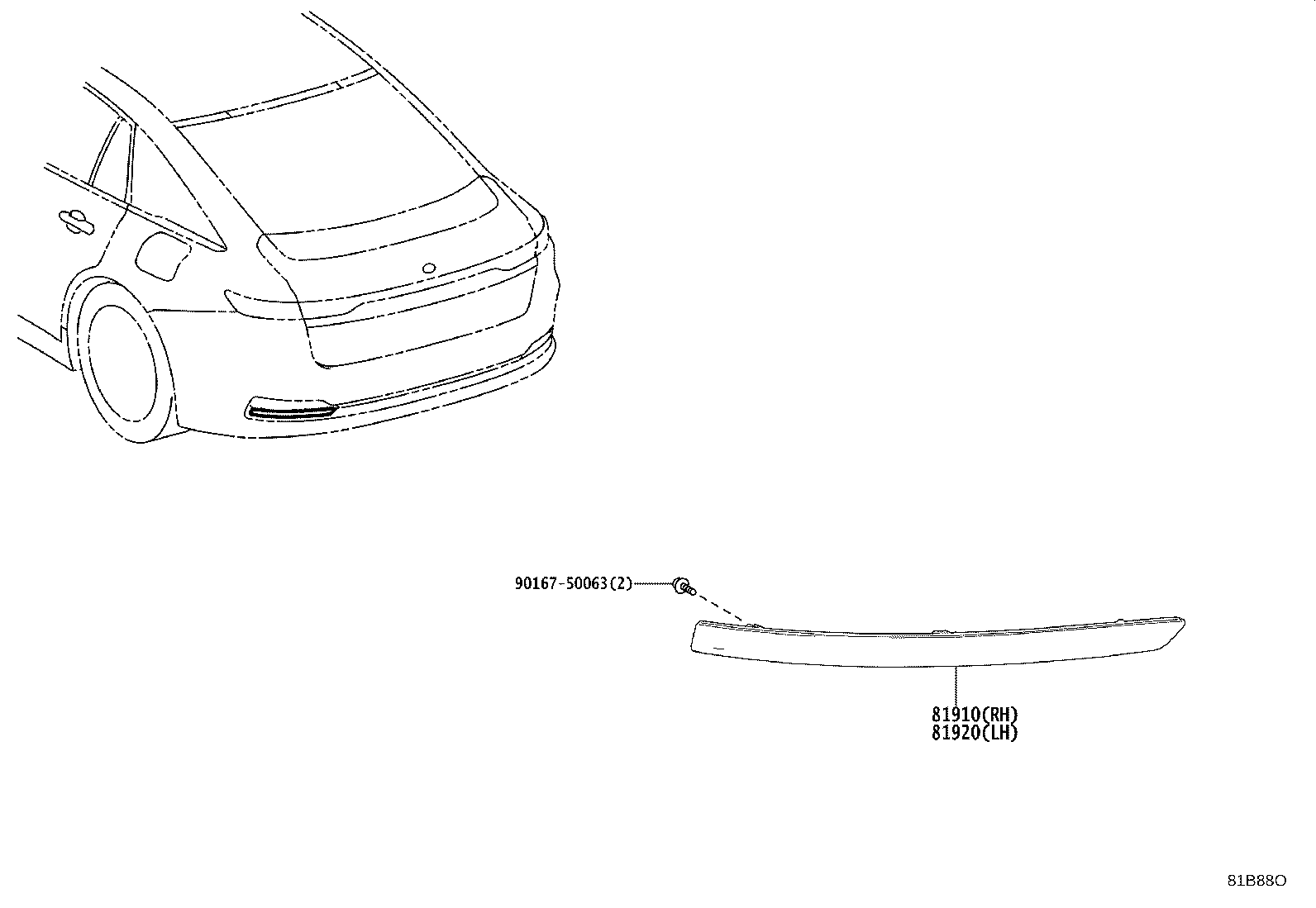

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81910 — Reflector Assy, Reflex, RH | ||||
| 81910-30080 |
Reflector Assy, Reflex, RH
2023-11 → —
|
AZSH32,KZSM30 | ¥850 | |
| 81920 — Reflector Assy, Reflex, LH | ||||
| 81920-30080 |
Reflector Assy, Reflex, LH
2023-11 → —
|
AZSH32,KZSM30 | ¥850 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
