Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

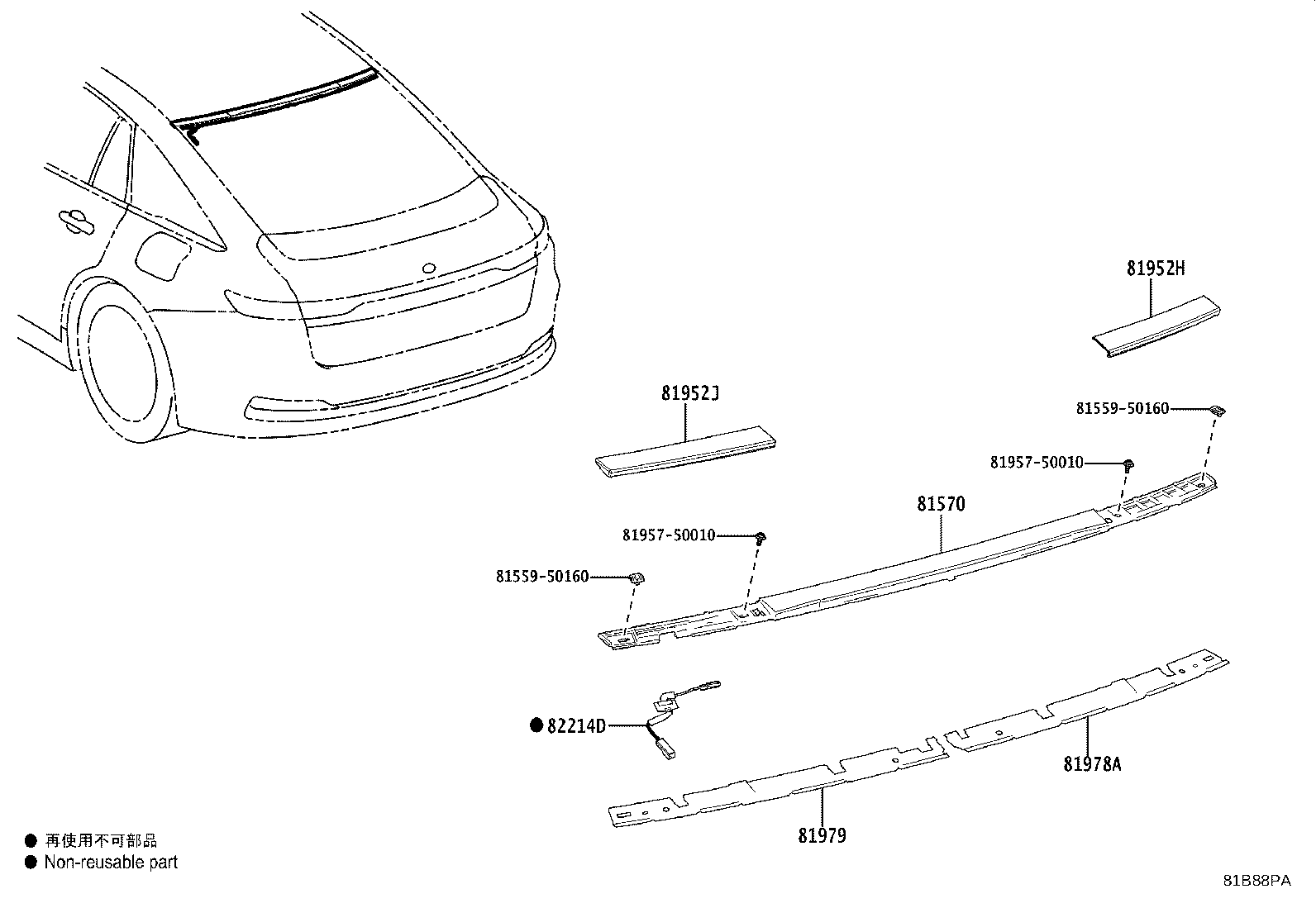

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81570 — Lamp Assy, Center Stop | ||||
| 81570-30310 |
Lamp Assy, Center Stop
2023-11 → —
|
AZSH32,KZSM30 | ¥5,900 | |
| 81952H — Cover, Center Stop Lamp, RH | ||||
| 81952-30040 |
Cover, Center Stop Lamp, RH
2023-11 → —
|
AZSH32,KZSM30 | ¥720 | |
| 81952J — Cover, Center Stop Lamp, LH | ||||
| 81962-30040 |
Cover, Center Stop Lamp, LH
2023-11 → —
|
AZSH32,KZSM30 | ¥720 | |
| 81978A — Bracket, Center Stop Lamp, RH | ||||
| 81978-30010 |
Bracket, Center Stop Lamp, RH
2023-11 → —
|
AZSH32,KZSM30 | ¥1,450 | |
| 81979 — Bracket, Center Stop Lamp, LH | ||||
| 81979-30010 |
Bracket, Center Stop Lamp, LH
2023-11 → —
|
AZSH32,KZSM30 | ¥1,420 | |
| 82214D — Wire, Center Stop Lamp | ||||
| 82214-62010 |
Wire, Center Stop Lamp
2023-11 → —
|
AZSH32,KZSM30 | ¥1,490 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
