Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

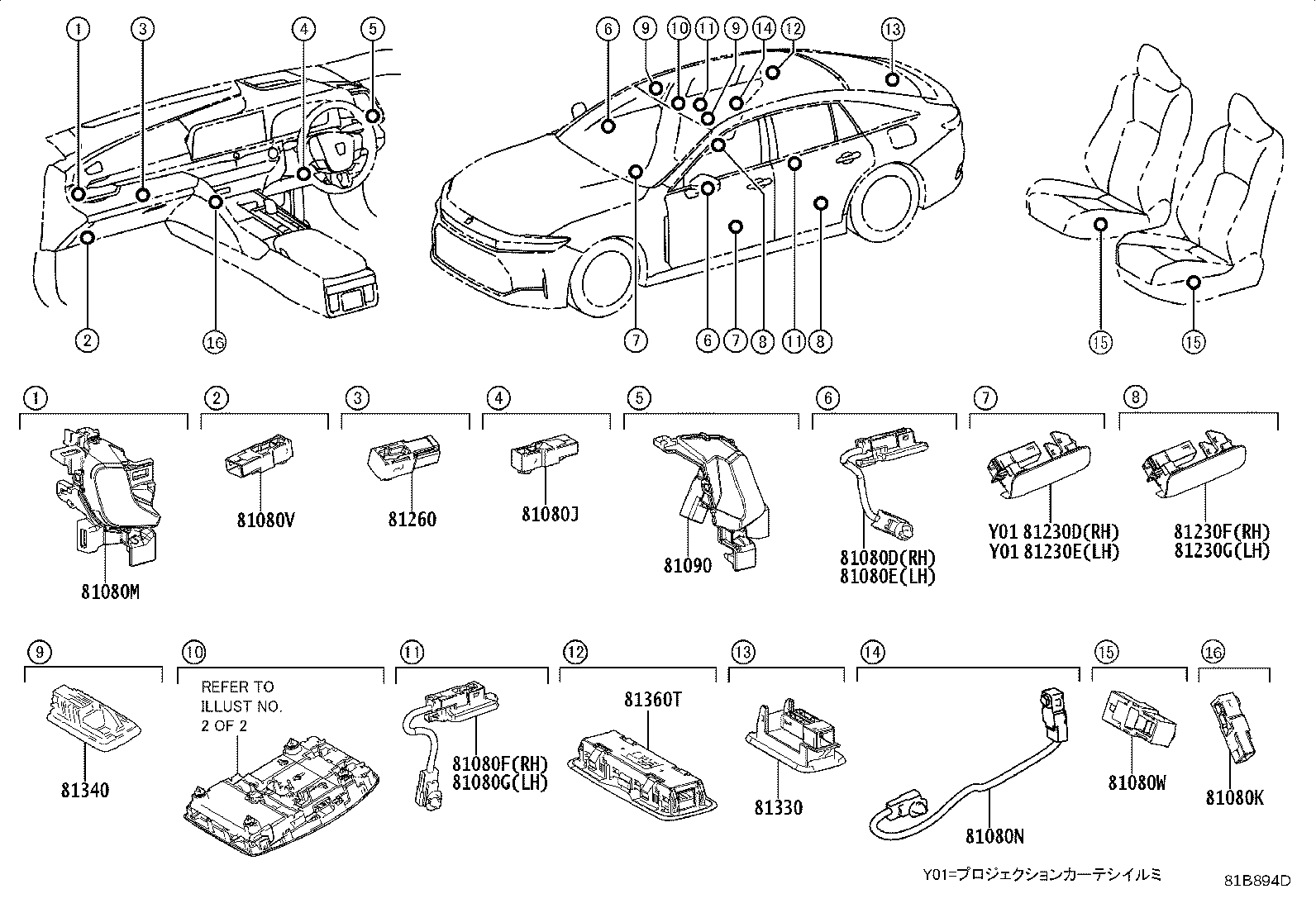

Exploded illustration 81B894D 81080J — LAMP ASSY, INTERIOR ILLUMINATION, NO.1 (1 parts) 81260 — LAMP ASSY, GLOVE BOX (1 parts) 81340 — LAMP ASSY, VANITY (1 parts) 81080N — LAMP ASSY, INTERIOR ILLUMINATION, NO.1 (1 parts) 81330 — LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 (1 parts) 81080W — LAMP ASSY, INTERIOR ILLUMINATION, NO.3 (1 parts) 81080V — LAMP ASSY, INTERIOR ILLUMINATION, NO.2 (1 parts) 81080M — LAMP ASSY, INTERIOR ILLUMINATION, NO.1 (1 parts) 81090 — LAMP ASSY, INTERIOR ILLUMINATION, NO.2 (1 parts) 81360T — LAMP ASSY, SPOT (2 parts) 81080F — LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH (1 parts) 81080G — LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH (1 parts) 81080D — LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH (1 parts) 81080E — LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH (1 parts) 81080K — LAMP ASSY, CONSOLE BOX ILLUMINATION (1 parts) 81230D — LAMP ASSY, FRONT DOOR COURTESY, RH (1 parts) 81230E — LAMP ASSY, FRONT DOOR COURTESY, LH (1 parts) 81230F — LAMP ASSY, REAR DOOR COURTESY, RH (1 parts) 81230G — LAMP ASSY, REAR DOOR COURTESY, LH (1 parts)
81B894D · 19 callouts Full size ↗
20 parts on this figure
Part number Description Fitment Price
81080D — Lamp Assy, Front Door Inside Handle Illumination, RH
81080-60390 Lamp Assy, Front Door Inside Handle Illumination, RH
2023-11 → —
AZSH32,KZSM30 ¥3,230
81080E — Lamp Assy, Front Door Inside Handle Illumination, LH
81080-60400 Lamp Assy, Front Door Inside Handle Illumination, LH
2023-11 → —
AZSH32,KZSM30 ¥3,230
81080F — Lamp Assy, Rear Door Inside Handle Illumination, RH
81080-60390 Lamp Assy, Rear Door Inside Handle Illumination, RH
2023-11 → —
AZSH32,KZSM30 ¥3,230
81080G — Lamp Assy, Rear Door Inside Handle Illumination, LH
81080-60400 Lamp Assy, Rear Door Inside Handle Illumination, LH
2023-11 → —
AZSH32,KZSM30 ¥3,230
81080J — Lamp Assy, Interior Illumination, NO.1
81080-78010 Lamp Assy, Interior Illumination, NO.1
2023-11 → —
AZSH32,KZSM30 ¥1,470
81080K — Lamp Assy, Console Box Illumination
81080-30320 Lamp Assy, Console Box Illumination
2023-11 → —
AZSH32,KZSM30 ¥1,470
81080M — Lamp Assy, Interior Illumination, NO.1
81080-30290 Lamp Assy, Interior Illumination, NO.1
2023-11 → —
AZSH32,KZSM30 ¥2,930
81080N — Lamp Assy, Interior Illumination, NO.1
81080-30350 Lamp Assy, Interior Illumination, NO.1
2023-11 → —
AZSH32,KZSM30 ¥2,290
81080V — Lamp Assy, Interior Illumination, NO.2
81080-78010 Lamp Assy, Interior Illumination, NO.2
2023-11 → —
AZSH32,KZSM30 ¥1,470
81080W — Lamp Assy, Interior Illumination, NO.3
81080-78010 Lamp Assy, Interior Illumination, NO.3
2023-11 → —
AZSH32,KZSM30 Z ¥1,470
81090 — Lamp Assy, Interior Illumination, NO.2
81080-30270 Lamp Assy, Interior Illumination, NO.2
2023-11 → —
AZSH32,KZSM30 ¥2,930
81230D — Lamp Assy, Front Door Courtesy, RH
81230-11030 Lamp Assy, Front Door Courtesy, RH
2023-11 → —
AZSH32,KZSM30 ¥1,090
81230E — Lamp Assy, Front Door Courtesy, LH
81230-11030 Lamp Assy, Front Door Courtesy, LH
2023-11 → —
AZSH32,KZSM30 ¥1,090
81230F — Lamp Assy, Rear Door Courtesy, RH
81230-11030 Lamp Assy, Rear Door Courtesy, RH
2023-11 → —
AZSH32,KZSM30 ¥1,090
81230G — Lamp Assy, Rear Door Courtesy, LH
81230-11030 Lamp Assy, Rear Door Courtesy, LH
2023-11 → —
AZSH32,KZSM30 ¥1,090
81260 — Lamp Assy, Glove Box
81080-33290 Lamp Assy, Glove Box
2023-11 → —
AZSH32,KZSM30 ¥920
81330 — Lamp Assy, Luggage Compartment, NO.1
81330-11010 Lamp Assy, Luggage Compartment, NO.1
2023-11 → —
AZSH32,KZSM30 ¥1,090
81340 — Lamp Assy, Vanity
81340-33170 Lamp Assy, Vanity
2023-11 → —
AZSH32,KZSM30 ¥990
81360T — Lamp Assy, Spot
81360-33070-C0 note Lamp Assy, Spot
2023-11 → —
AZSH32,KZSM30 Z ¥4,910
81360-33070-C0 note Lamp Assy, Spot
2023-11 → —
AZSH32 G ¥4,910
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
