Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

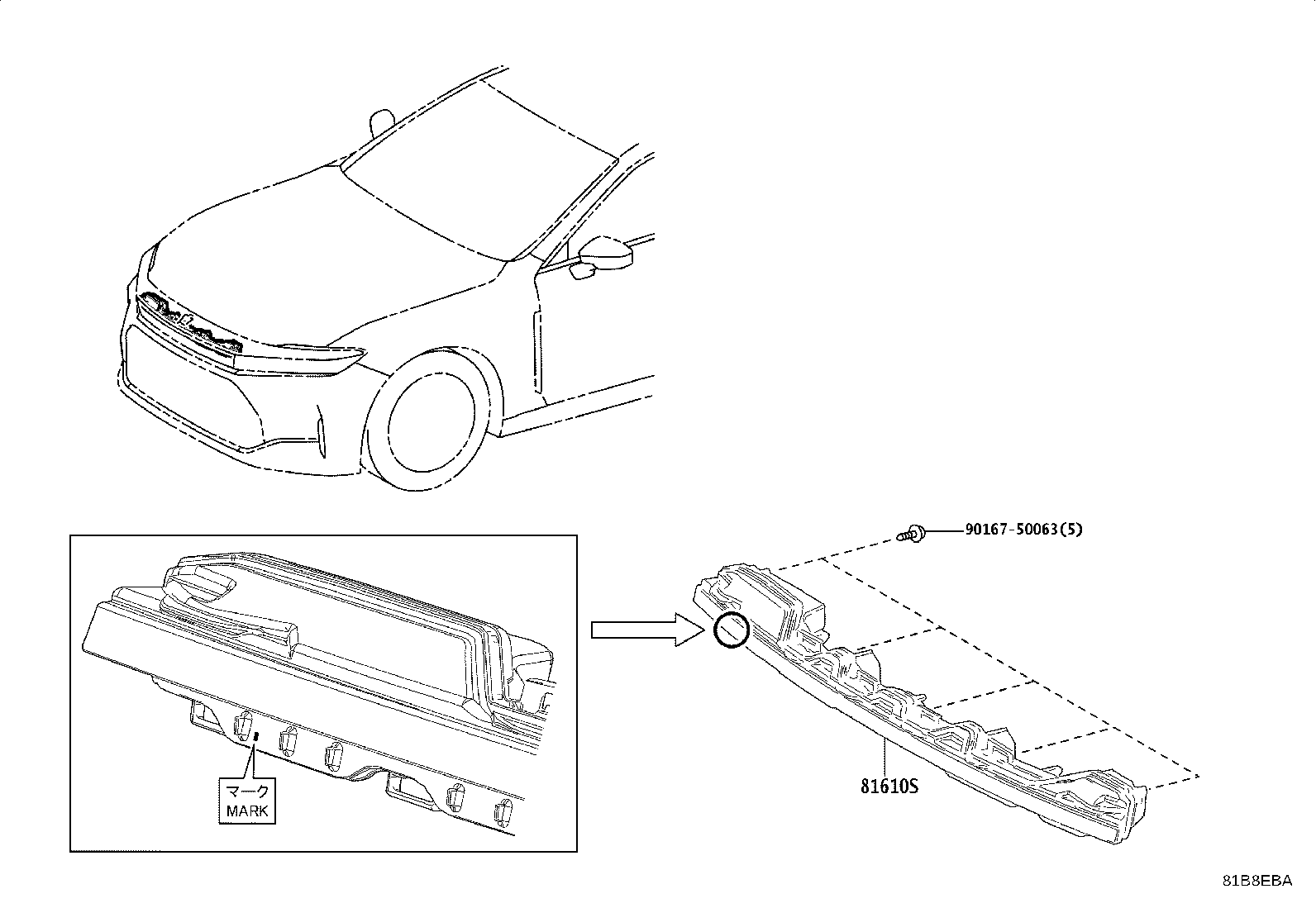

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81610S — Lamp Assy, Clearance | ||||
| 81610-30540 note |
Lamp Assy, Clearance
2023-11 → 2024-05
ended
|
AZSH32,KZSM30 | ¥30,300 | |
| 81610-30550 note |
Lamp Assy, Clearance
2024-05 → —
|
AZSH32,KZSM30 | ¥27,500 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
