Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

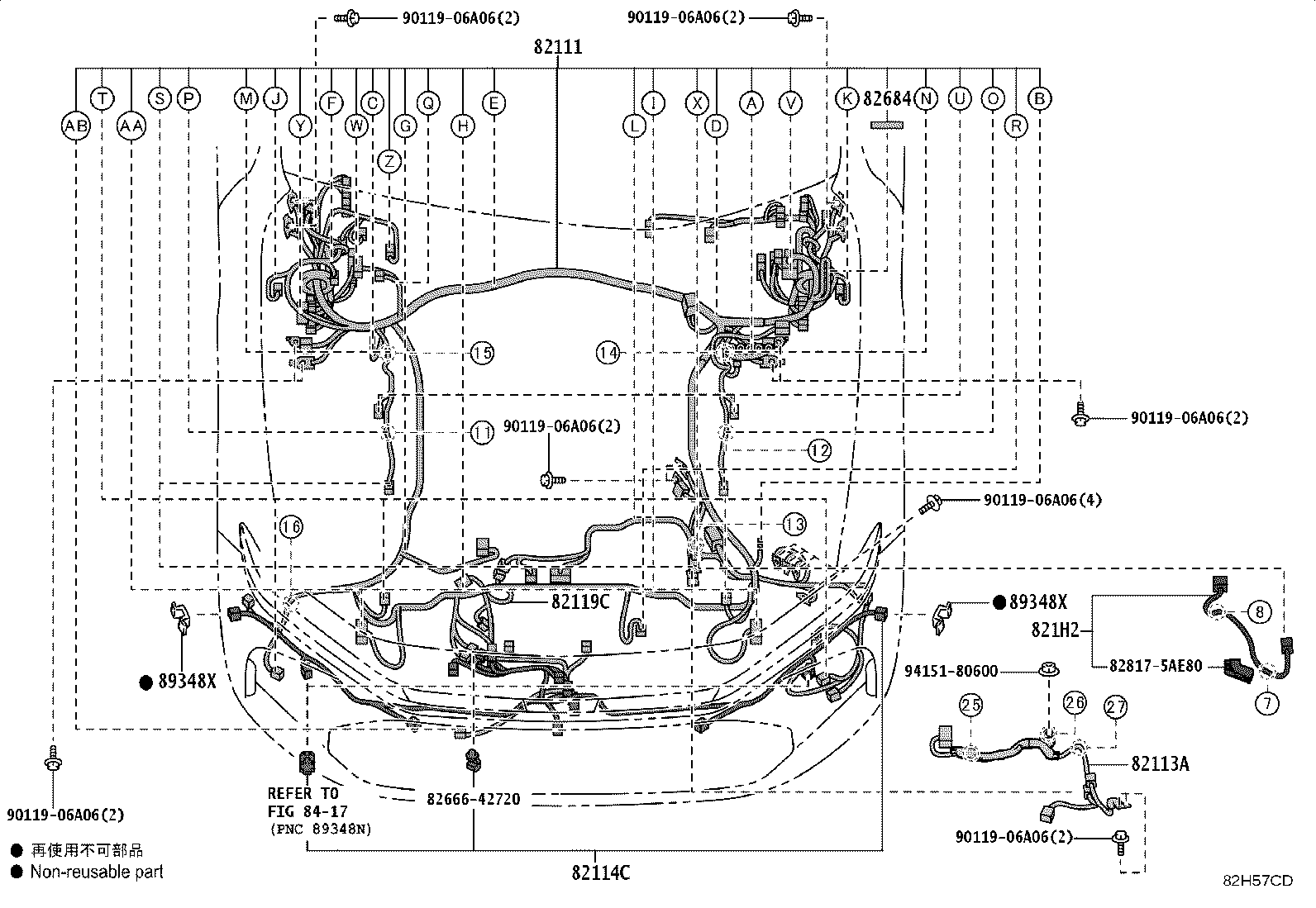

15 parts on this figure

Part number	Description	Fitment	Price
82111 — Wire, Engine Room Main
82111-3AK50 note	Wire, Engine Room Main 2023-11 → 2025-06 ended	AZSH32 Z	¥203,000
82111-3FT90	Wire, Engine Room Main 2023-11 → 2025-06 ended	AZSH32 G	¥203,000
82111-3FT90 note	Wire, Engine Room Main 2023-11 → 2025-06 ended	AZSH32 Z	¥203,000
82111-3FU10	Wire, Engine Room Main 2023-11 → —	AZSH32 Z	¥203,000
82113A — Wire, Front Compartment, NO.3
82113-50130	Wire, Front Compartment, NO.3 2023-11 → —	AZSH32	¥7,700
82113-62030	Wire, Front Compartment, NO.3 2023-11 → —	KZSM30	¥7,700
82114C — Wire, Front Compartment, NO.4
82114-30610 note	Wire, Front Compartment, NO.4 2023-11 → 2025-06 ended	AZSH32,KZSM30 Z	¥4,640
82114-30610	Wire, Front Compartment, NO.4 2023-11 → —	AZSH32 G	¥4,640
82114-30620	Wire, Front Compartment, NO.4 2023-11 → —	AZSH32,KZSM30 Z	¥6,500
82119C — Wire, Engine Room, NO.5
82119-50020	Wire, Engine Room, NO.5 2023-11 → —	AZSH32	¥1,070
821H2 — Wire, HV Air Conditioner
821H2-30010	Wire, HV Air Conditioner 2023-11 → —	AZSH32	¥4,640
82684 — Label, Cut High Voltage Electricity
82684-48010 note	Label, Cut High Voltage Electricity 2023-11 → 2025-06 ended	AZSH32 Z	¥170
82684-48010 note	Label, Cut High Voltage Electricity 2023-11 → 2025-06 ended	AZSH32 Z	¥170
82684-48010	Label, Cut High Voltage Electricity 2023-11 → —	KZSM30;AZSH32 G	¥170
89348X — Clip, Ultrasonic Sensor, Front
89348-50050	Clip, Ultrasonic Sensor, Front 2023-11 → —	AZSH32,KZSM30 Z	¥260

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
