Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

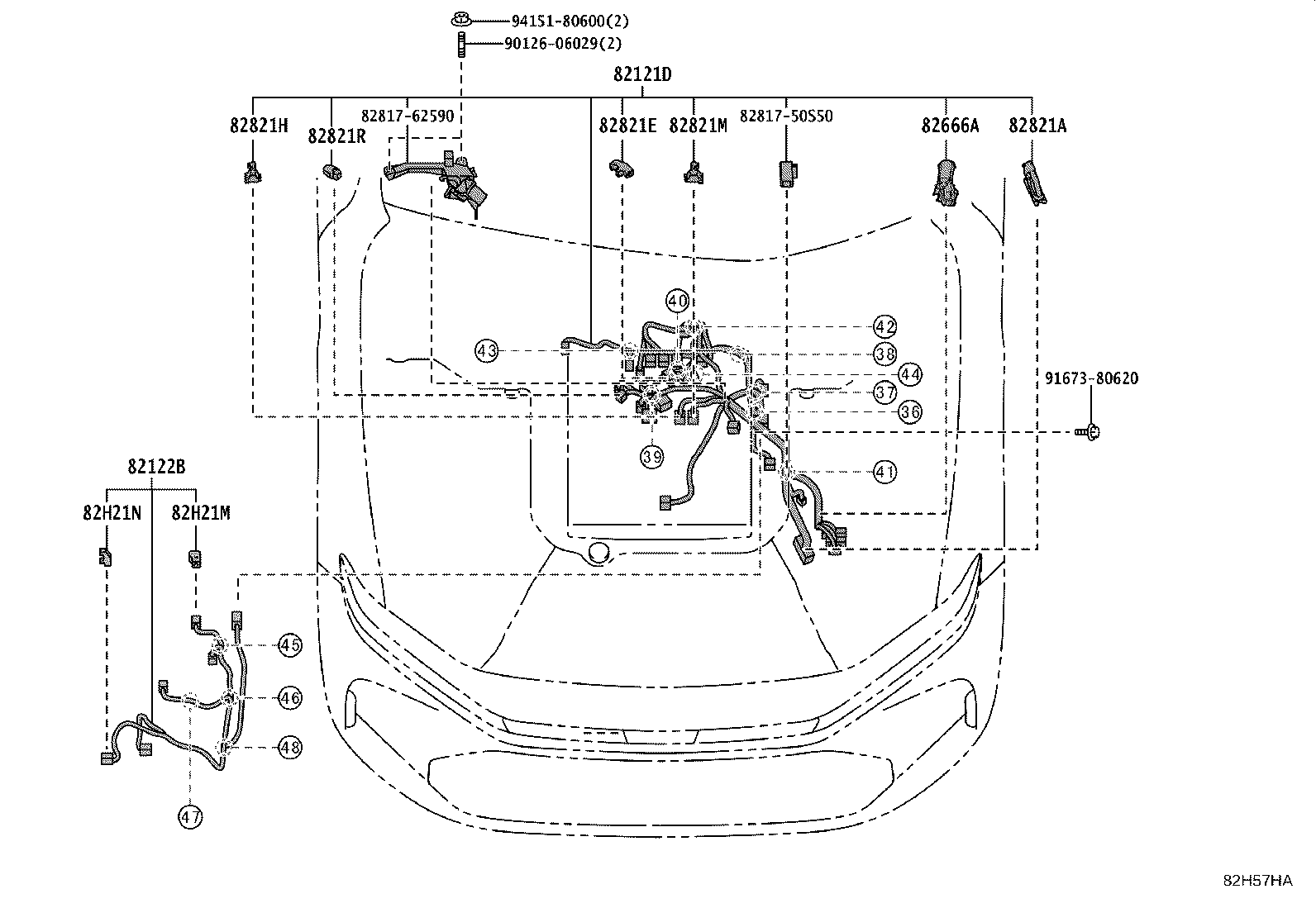

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121D — Wire, Motor | ||||
| 82121-62070 |
Wire, Motor
2023-11 → 2025-06
ended
|
KZSM30 | ¥38,400 | |
| 82122B — Wire, Motor, NO.2 | ||||
| 82122-62040 |
Wire, Motor, NO.2
2023-11 → —
|
KZSM30 | ¥3,890 | |
| 82666A — Holder, Connector NO.2 | ||||
| 82666-50A10 |
Holder, Connector NO.2
2023-11 → —
|
AZSH32,KZSM30 | ¥770 | |
| 82821A — Cover, Connector | ||||
| 82821-12560 |
Cover, Connector
2023-11 → —
|
KZSM30 | ¥570 | |
| 82821E — Cover, Connector | ||||
| 82821-12600 |
Cover, Connector
2023-11 → —
|
KZSM30 | ¥340 | |
| 82821H — Cover, Connector | ||||
| 82821-47420 |
Cover, Connector
2023-11 → —
|
KZSM30 | ¥200 | |
| 82821M — Cover, Connector | ||||
| 82821-47430 |
Cover, Connector
2023-11 → —
|
KZSM30 | ¥200 | |
| 82821R — Cover, Connector | ||||
| 82821-30690 |
Cover, Connector
2023-11 → —
|
AZSH32,KZSM30 | ¥140 | |
| 82H21M — Cover, Connector | ||||
| 82821-12420 |
Cover, Connector
2023-11 → —
|
KZSM30 | ¥180 | |
| 82H21N — Cover, Connector | ||||
| 82821-12600 |
Cover, Connector
2023-11 → —
|
KZSM30 | ¥340 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
