Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

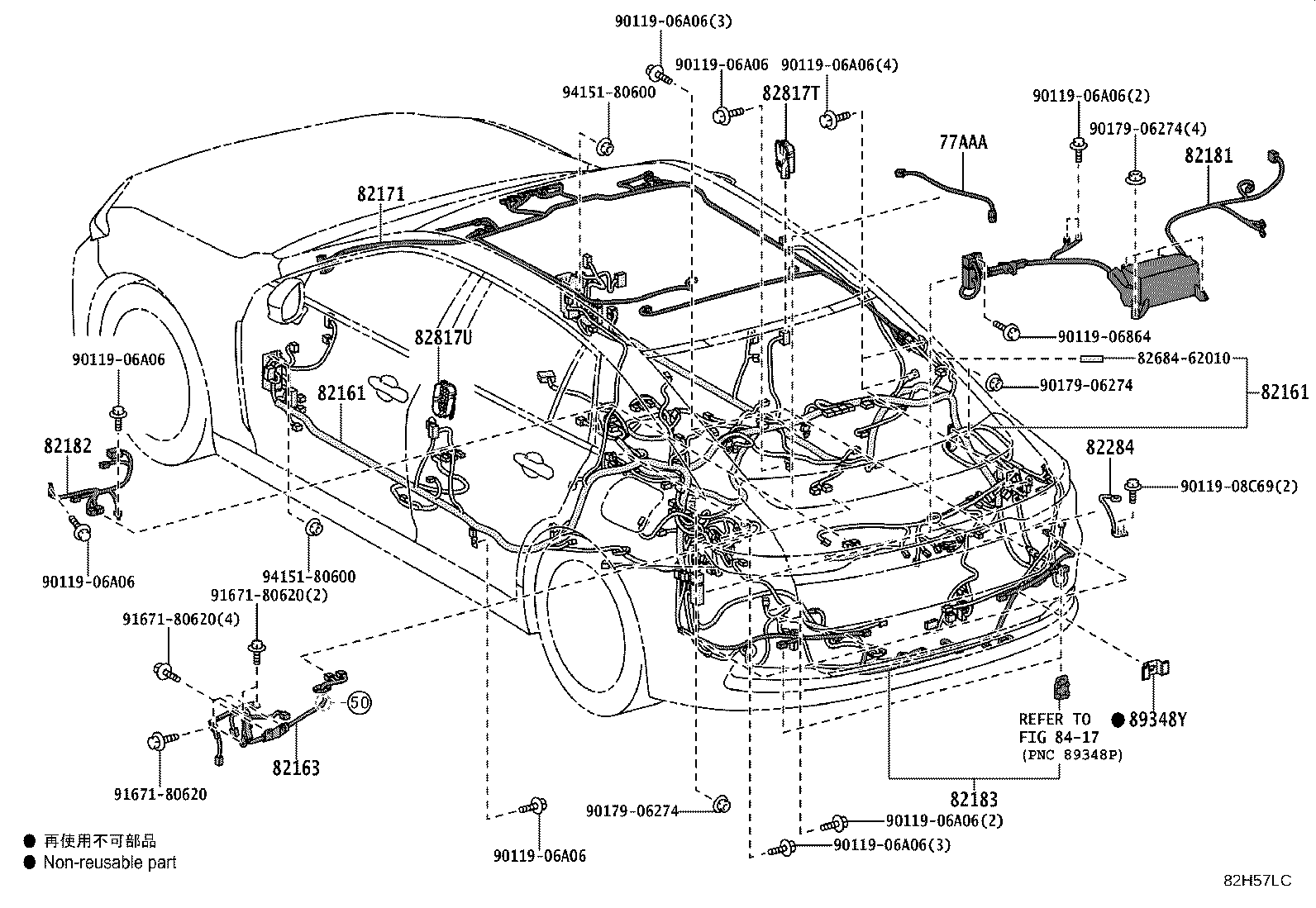

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77AAA — Wire, Hydrogen Tank Valve | ||||
| 77AAA-62010 |
Wire, Hydrogen Tank Valve
2023-11 → —
|
KZSM30 | ¥750 | |
| 82161 — Wire, Floor | ||||
| 82161-3FF50 |
Wire, Floor
2023-11 → —
|
AZSH32 G | ¥203,000 | |
| 82161-3FF60 note |
Wire, Floor
2023-11 → —
|
AZSH32 G | ¥203,000 | |
| 82161-3FF70 note |
Wire, Floor
2023-11 → 2024-09
ended
|
AZSH32 Z | ¥273,000 | |
| 82161-3FF80 note |
Wire, Floor
2023-11 → 2024-09
ended
|
AZSH32 Z | ¥248,000 | |
| 82161-3FF80 note |
Wire, Floor
2024-09 → 2025-06
ended
|
AZSH32 Z | ¥248,000 | |
| 82161-3FF90 |
Wire, Floor
2023-11 → 2024-09
ended
|
AZSH32 Z | ¥286,000 | |
| 82161-3FG00 note |
Wire, Floor
2023-11 → 2024-09
ended
|
AZSH32 Z | ¥260,000 | |
| 82161-3FG00 |
Wire, Floor
2024-09 → —
|
AZSH32 Z | ¥260,000 | |
| 82161-3FJ20 |
Wire, Floor
2023-11 → 2024-09
ended
|
KZSM30 | ¥273,000 | |
| 82161-3FJ30 note |
Wire, Floor
2023-11 → 2024-09
ended
|
KZSM30 | ¥248,000 | |
| 82161-3FJ30 |
Wire, Floor
2024-09 → 2025-06
ended
|
KZSM30 | ¥248,000 | |
| 82163 — Wire, Floor, NO.3 | ||||
| 82163-62031 |
Wire, Floor, NO.3
2023-11 → —
|
KZSM30 | ¥10,100 | |
| 82171 — Wire, Roof, NO.1 | ||||
| 82171-3A610 |
Wire, Roof, NO.1
2023-11 → —
|
KZSM30 | ¥10,100 | |
| 82171-3A620 note |
Wire, Roof, NO.1
2023-11 → —
|
KZSM30 | ¥11,700 | |
| 82171-3A640 |
Wire, Roof, NO.1
2023-11 → —
|
AZSH32 | ¥11,700 | |
| 82171-3A660 note |
Wire, Roof, NO.1
2023-11 → —
|
AZSH32 Z | ¥11,700 | |
| 82181 — Wire, Luggage Room, NO.1 | ||||
| 82181-30D90 |
Wire, Luggage Room, NO.1
2023-11 → —
|
KZSM30 | ¥48,300 | |
| 82181-30E00 |
Wire, Luggage Room, NO.1
2023-11 → —
|
AZSH32 | ¥51,700 | |
| 82182 — Wire, Luggage Room, NO.2 | ||||
| 82182-62040 |
Wire, Luggage Room, NO.2
2023-11 → 2025-06
ended
|
KZSM30 | ¥3,750 | |
| 82183 — Wire, Luggage Room, NO.3 | ||||
| 82183-30360 note |
Wire, Luggage Room, NO.3
2023-11 → 2025-06
ended
|
AZSH32,KZSM30 Z | ¥3,750 | |
| 82183-30360 |
Wire, Luggage Room, NO.3
2023-11 → —
|
AZSH32 G | ¥3,750 | |
| 82183-30430 |
Wire, Luggage Room, NO.3
2023-11 → —
|
AZSH32,KZSM30 Z | ¥5,700 | |
| 82284 — Wire, Earth | ||||
| 82284-30180 |
Wire, Earth
2023-11 → —
|
AZSH32 | ¥3,210 | |
| 82284-62050 |
Wire, Earth
2023-11 → —
|
KZSM30 | ¥3,210 | |
| 82817T — Protector, Wiring Harness, NO.15 | ||||
| 82817-5AB00 |
Protector, Wiring Harness, NO.15
2023-11 → —
|
AZSH32,KZSM30 | ¥500 | |
| 82817U — Protector, Wiring Harness, NO.16 | ||||
| 82817-5AB10 |
Protector, Wiring Harness, NO.16
2023-11 → —
|
AZSH32,KZSM30 | ¥500 | |
| 89348Y — Clip, Ultrasonic Sensor, Rear | ||||
| 89348-50050 note |
Clip, Ultrasonic Sensor, Rear
2023-11 → 2025-06
ended
|
AZSH32,KZSM30 Z | ¥260 | |
| 89348-50050 |
Clip, Ultrasonic Sensor, Rear
2023-11 → —
|
AZSH32 G | ¥260 | |
| 89348-50050 |
Clip, Ultrasonic Sensor, Rear
2023-11 → —
|
AZSH32,KZSM30 Z | ¥260 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
