Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

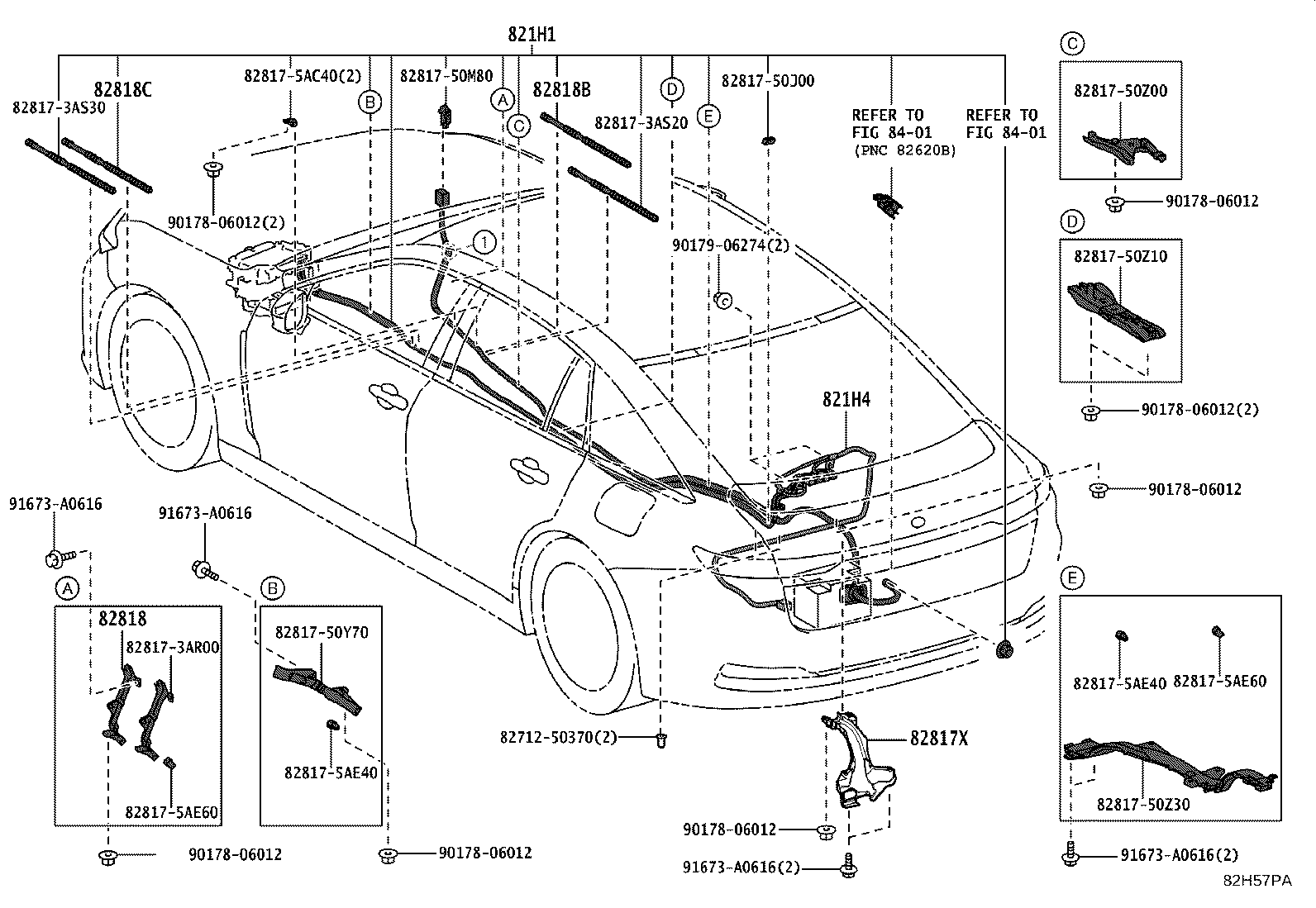

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 821H1 — Wire, Floor Under | ||||
| 821H1-30120 |
Wire, Floor Under
2023-11 → —
|
KZSM30 | ¥71,100 | |
| 821H1-30130 |
Wire, Floor Under
2023-11 → —
|
AZSH32 | ¥71,100 | |
| 821H4 — Wire, HV Socket Inverter | ||||
| 821H4-50010 |
Wire, HV Socket Inverter
2023-11 → —
|
AZSH32 | ¥7,700 | |
| 821H4-62050 |
Wire, HV Socket Inverter
2023-11 → —
|
KZSM30 | ¥3,210 | |
| 82817X — Protector, Wiring Harness, NO.17 | ||||
| 82817-50Z50 |
Protector, Wiring Harness, NO.17
2023-11 → —
|
AZSH32 | ¥3,420 | |
| 82818 — Protector, Wiring Harness, NO.2 | ||||
| 82817-3AR00 |
Protector, Wiring Harness, NO.2
2023-10 → —
|
AZSH32 | ¥2,120 | |
| 82818B — Protector, Wiring Harness, NO.3 | ||||
| 82817-3AS20 |
Protector, Wiring Harness, NO.3
2023-10 → —
|
AZSH32 | ¥1,600 | |
| 82818C — Protector, Wiring Harness, NO.4 | ||||
| 82817-3AS30 |
Protector, Wiring Harness, NO.4
2023-10 → —
|
AZSH32 | ¥1,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
