Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

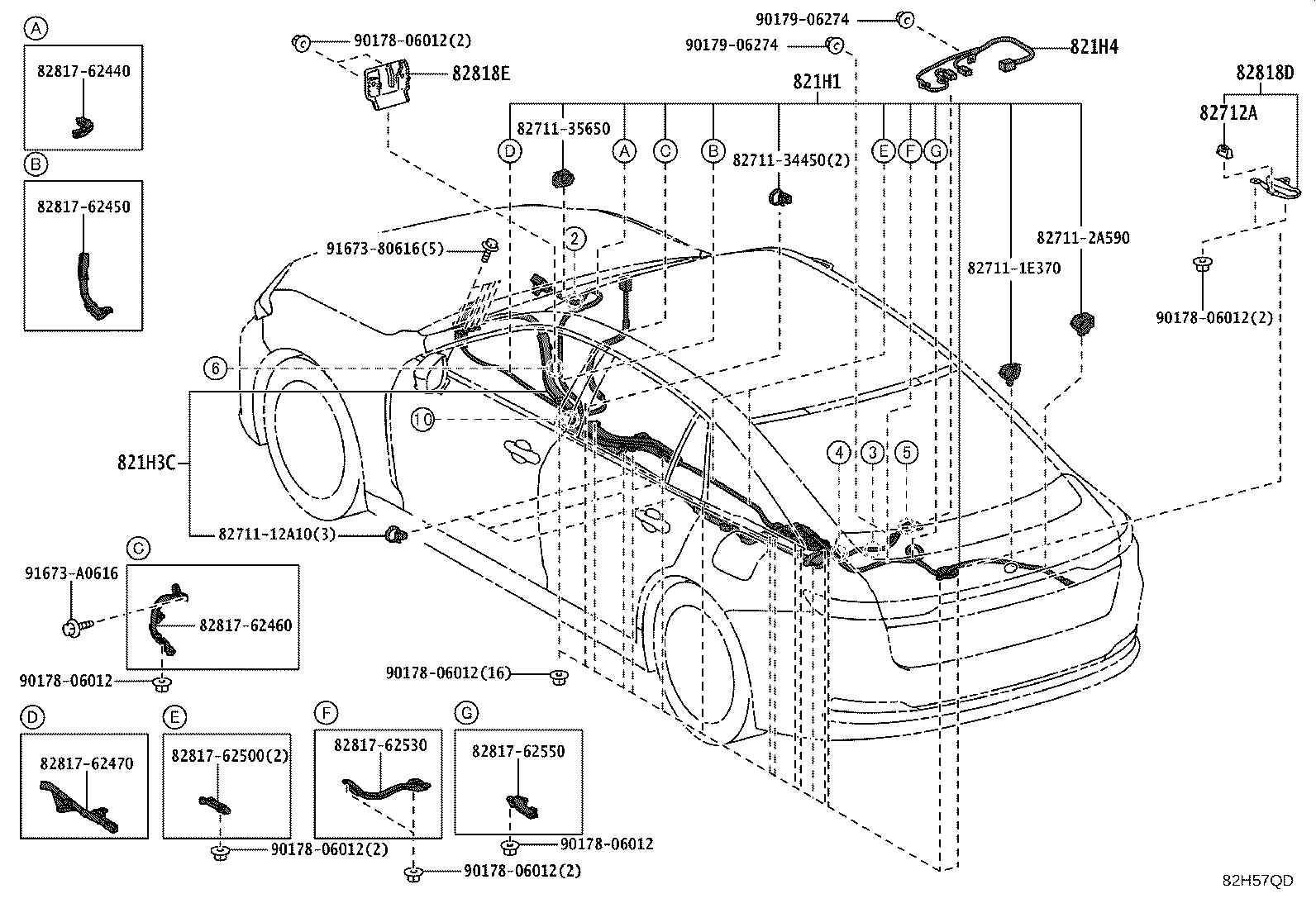

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 821H1 — Wire, Floor Under | ||||
| 821H1-30120 |
Wire, Floor Under
2023-11 → —
|
KZSM30 | ¥71,100 | |
| 821H1-30130 |
Wire, Floor Under
2023-11 → —
|
AZSH32 | ¥71,100 | |
| 821H3C — Wire, High Voltage Battery Pack | ||||
| 821H3-30040 |
Wire, High Voltage Battery Pack
2023-11 → —
|
KZSM30 | ¥43,300 | |
| 821H4 — Wire, HV Socket Inverter | ||||
| 821H4-50010 |
Wire, HV Socket Inverter
2023-11 → —
|
AZSH32 | ¥7,700 | |
| 821H4-62050 |
Wire, HV Socket Inverter
2023-11 → —
|
KZSM30 | ¥3,210 | |
| 82712A — Support, Wiring Harness | ||||
| 82712-30350 |
Support, Wiring Harness
2023-11 → —
|
KZSM30 | ¥240 | |
| 82818D — Protector, Wiring Harness, NO.5 | ||||
| 82817-62250 |
Protector, Wiring Harness, NO.5
2023-11 → —
|
KZSM30 | ¥970 | |
| 82818E — Protector, Wiring Harness, NO.6 | ||||
| 82817-62260 |
Protector, Wiring Harness, NO.6
2023-11 → —
|
KZSM30 | ¥12,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
