Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

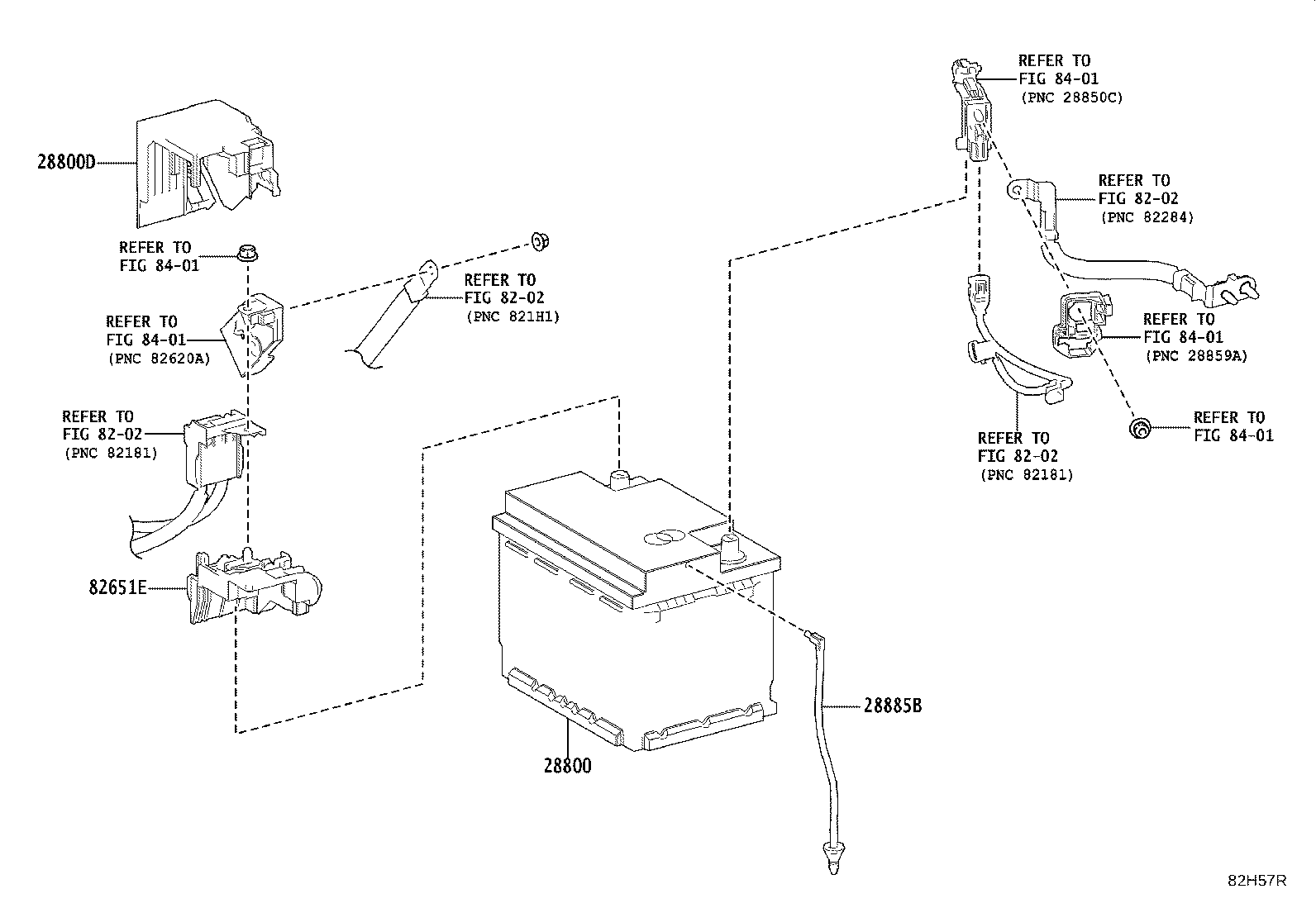

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800 — Battery | ||||
| 28800-25032 note |
Battery
2023-11 → 2024-03
ended
|
A25,MOTOR AZSH32,KZSM30 | — | |
| 28800-25033 note |
Battery
2024-04 → —
|
A25,MOTOR AZSH32,KZSM30 | — | |
| 28800D — Cover, Connector(FOR BATTERY TERMINAL) | ||||
| 82821-50830 |
Cover, Connector(FOR BATTERY TERMINAL)
2023-11 → —
|
A25 AZSH32 | ¥1,260 | |
| 82821-62030 |
Cover, Connector(FOR BATTERY TERMINAL)
2023-11 → —
|
MOTOR KZSM30 | ¥790 | |
| 28885B — Hose, Battery | ||||
| 28885-25090 |
Hose, Battery
2023-11 → —
|
A25 AZSH32 | ¥990 | |
| 28885-77030 |
Hose, Battery
2023-11 → —
|
MOTOR KZSM30 | ¥1,060 | |
| 82651E — Block, Terminal | ||||
| 82651-50010 |
Block, Terminal
2023-11 → —
|
AZSH32 | ¥2,000 | |
| 82651-62010 |
Block, Terminal
2023-11 → —
|
KZSM30 | ¥1,420 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
