Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 82H57WA 9010506345 — not listed in this catalogue 9010506345 — not listed in this catalogue 9010506345 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9010506345 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017806023 — not listed in this catalogue 9010506345 — not listed in this catalogue G920QB — SHIELD SUB-ASSY, EV BATTERY, NO.1 (1 parts) G92D6A — DUCT, EV BATTERY INTAKE, NO.6 (1 parts) G92N1B — PANEL, EV BATTERY UPPER COVER (1 parts) G92F1A — DUCT, EV BATTERY EXHAUST, NO.1 (1 parts) G920LC — COVER SUB-ASSY, EV BATTERY, UPPER NO.1 (1 parts) G92PCA — PROTECTOR, EV BATTERY, NO.1 (1 parts) 89890A — COMPUTER ASSY, BATTERY (2 parts) 89892A — SENSOR, BATTERY VOLTAGE (1 parts) G92PCA — PROTECTOR, EV BATTERY, NO.1 (1 parts) G920RB — SHIELD SUB-ASSY, EV BATTERY, NO.2 (1 parts) G9508A — STACK SUB-ASSY, EV SUPPLY, NO.1 (2 parts) G92X1A — WIRE, EV BATTERY PACK, NO.1 (1 parts) G920XA — SHIELD SUB-ASSY, EV BATTERY, NO.8 (1 parts) G920WA — SHIELD SUB-ASSY, EV BATTERY, NO.7 (1 parts) G9509A — STACK SUB-ASSY, EV SUPPLY, NO.2 (2 parts) G92X2A — WIRE, EV BATTERY PACK, NO.2 (2 parts) G92D8A — DUCT, EV BATTERY INTAKE, NO.8 (1 parts) G92D9A — DUCT, EV BATTERY INTAKE, NO.9 (1 parts) G9230 — BLOWER ASSY, BATTERY COOLING (1 parts) G9510B — BATTERY ASSY, EV SUPPLY (4 parts) 9010506345 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 89892A — SENSOR, BATTERY VOLTAGE (1 parts) 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue G92Z0A — BLOCK ASSY, EV BATTERY JUNCTION, NO.1 (1 parts) G9569A — LABEL, LITHIUM ION BATTERY CAUTION (1 parts) 9017806023 — not listed in this catalogue G92D5A — DUCT, EV BATTERY INTAKE, NO.5 (1 parts) 9046707215 — not listed in this catalogue 9017906274 — not listed in this catalogue G92Z2A — BLOCK, EV BATTERY TERMINAL (1 parts)

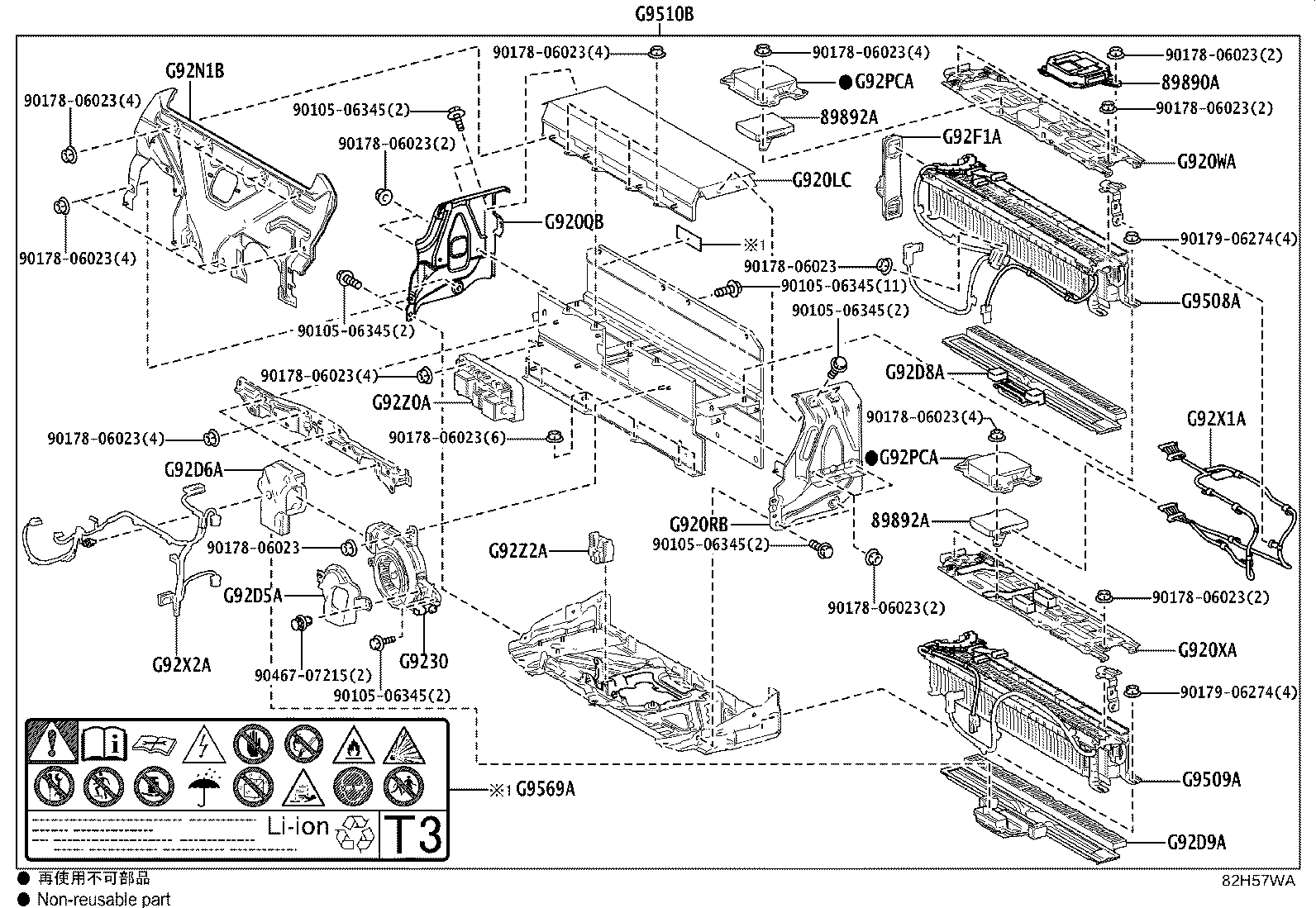

82H57WA · 25 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
30 parts on this figure
Part number Description Fitment Price
89890A — Computer Assy, Battery
89890-50020 note Computer Assy, Battery
2023-11 → —
AZSH32 ¥38,300
89890-62030 note Computer Assy, Battery
2023-11 → —
KZSM30 ¥38,300
89892A — Sensor, Battery Voltage
89892-11010 Sensor, Battery Voltage
2023-11 → —
AZSH32,KZSM30 ¥25,100
G920LC — Cover Sub-assy, EV Battery, Upper NO.1
G920L-11010 Cover Sub-assy, EV Battery, Upper NO.1
2023-11 → —
AZSH32,KZSM30 ¥17,400
G920QB — Shield Sub-assy, EV Battery, NO.1
G920Q-11010 Shield Sub-assy, EV Battery, NO.1
2023-11 → —
AZSH32,KZSM30 ¥2,250
G920RB — Shield Sub-assy, EV Battery, NO.2
G920R-11010 Shield Sub-assy, EV Battery, NO.2
2023-11 → —
AZSH32,KZSM30 ¥2,160
G920WA — Shield Sub-assy, EV Battery, NO.7
G920W-11010 Shield Sub-assy, EV Battery, NO.7
2023-11 → —
AZSH32,KZSM30 ¥2,480
G920XA — Shield Sub-assy, EV Battery, NO.8
G920W-11020 Shield Sub-assy, EV Battery, NO.8
2023-11 → —
AZSH32,KZSM30 ¥2,480
G9230 — Blower Assy, Battery Cooling
G9230-11010 Blower Assy, Battery Cooling
2023-11 → —
AZSH32,KZSM30 ¥16,200
G92D5A — Duct, EV Battery Intake, NO.5
G92D5-11010 Duct, EV Battery Intake, NO.5
2023-11 → —
AZSH32,KZSM30 ¥1,020
G92D6A — Duct, EV Battery Intake, NO.6
G92D6-11010 Duct, EV Battery Intake, NO.6
2023-11 → —
AZSH32,KZSM30 ¥1,090
G92D8A — Duct, EV Battery Intake, NO.8
G92D8-11010 Duct, EV Battery Intake, NO.8
2023-11 → —
AZSH32,KZSM30 ¥3,890
G92D9A — Duct, EV Battery Intake, NO.9
G92D9-11010 Duct, EV Battery Intake, NO.9
2023-11 → —
AZSH32,KZSM30 ¥4,600
G92F1A — Duct, EV Battery Exhaust, NO.1
G92F1-11010 Duct, EV Battery Exhaust, NO.1
2023-11 → —
AZSH32,KZSM30 ¥1,250
G92N1B — Panel, EV Battery Upper Cover
G92N1-11010 Panel, EV Battery Upper Cover
2023-11 → —
AZSH32,KZSM30 ¥3,140
G92PCA — Protector, EV Battery, NO.1
G92PC-11010 Protector, EV Battery, NO.1
2023-11 → —
AZSH32,KZSM30 ¥1,580
G92X1A — Wire, EV Battery Pack, NO.1
G92X1-11010 Wire, EV Battery Pack, NO.1
2023-11 → —
AZSH32,KZSM30 ¥5,500
G92X2A — Wire, EV Battery Pack, NO.2
G92X2-50030 Wire, EV Battery Pack, NO.2
2023-11 → —
AZSH32 ¥9,800
G92X2-62010 Wire, EV Battery Pack, NO.2
2023-11 → —
KZSM30 ¥5,500
G92Z0A — Block Assy, EV Battery Junction, NO.1
G92Z0-47110 Block Assy, EV Battery Junction, NO.1
2023-11 → —
AZSH32,KZSM30 ¥28,400
G92Z2A — Block, EV Battery Terminal
G92Z2-47070 Block, EV Battery Terminal
2023-11 → —
AZSH32,KZSM30 ¥2,510
G9508A — Stack Sub-assy, EV Supply, NO.1
G9508-50010 Stack Sub-assy, EV Supply, NO.1
2023-11 → —
AZSH32 ¥176,000
G9508-62010 Stack Sub-assy, EV Supply, NO.1
2023-11 → —
KZSM30 ¥176,000
G9509A — Stack Sub-assy, EV Supply, NO.2
G9509-50010 Stack Sub-assy, EV Supply, NO.2
2023-11 → —
AZSH32 ¥176,000
G9509-62010 Stack Sub-assy, EV Supply, NO.2
2023-11 → —
KZSM30 ¥176,000
G9510B — Battery Assy, EV Supply
G9510-50080 Battery Assy, EV Supply
2023-11 → 2024-04 ended
AZSH32 ¥452,000
G9510-50081 Battery Assy, EV Supply
2024-05 → —
AZSH32 ¥411,000
G9510-62040 Battery Assy, EV Supply
2023-11 → 2024-02 ended
KZSM30 ¥452,000
G9510-62041 Battery Assy, EV Supply
2024-03 → —
KZSM30 ¥411,000
G9569A — Label, Lithium Ion Battery Caution
G9569-48010 Label, Lithium Ion Battery Caution
2023-11 → —
AZSH32,KZSM30 ¥200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
