Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

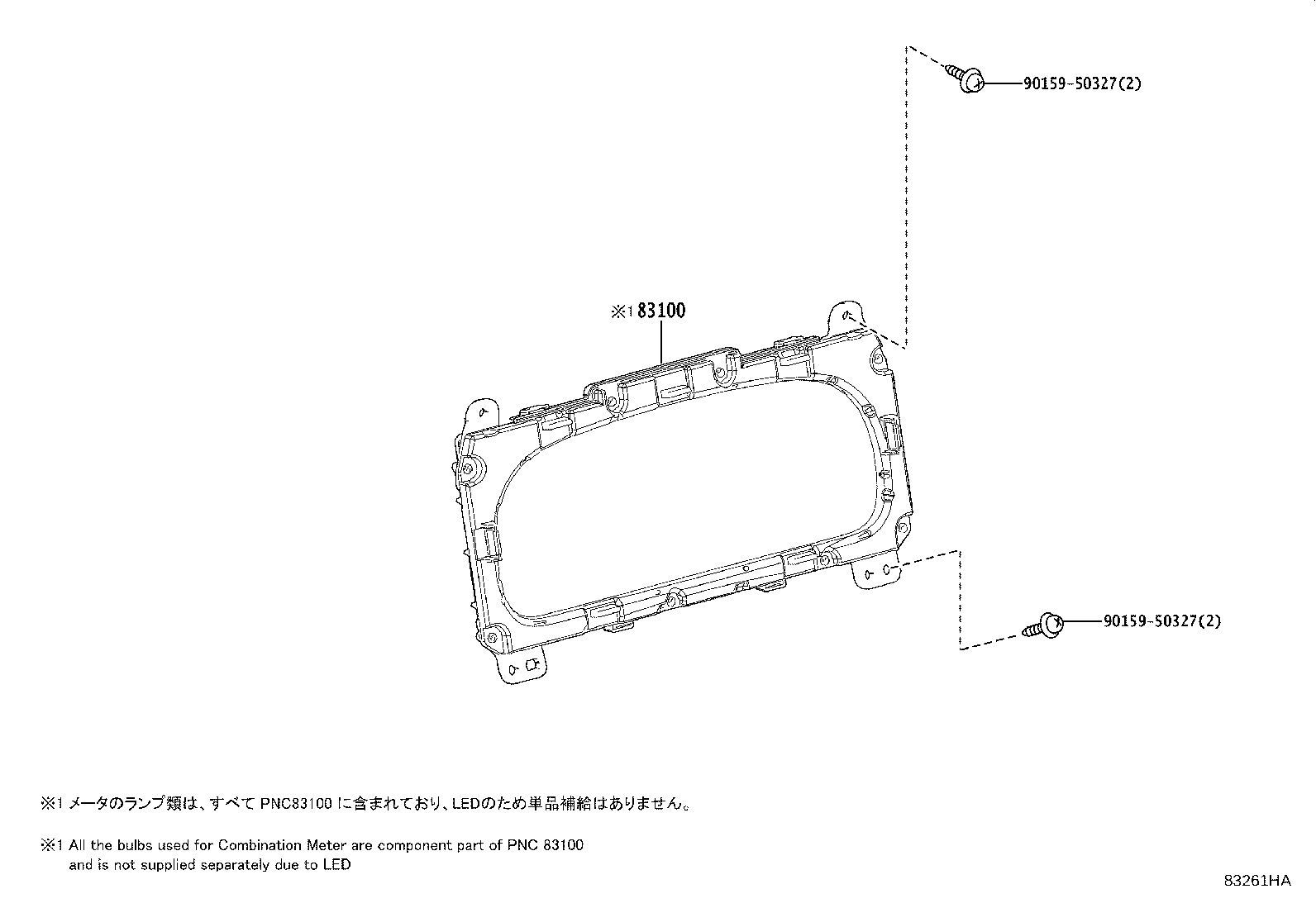

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100 — Meter Assy, Combination | ||||
| 83800-3AW00 note |
Meter Assy, Combination
2023-11 → 2023-12
ended
|
AZSH32 | ¥152,000 | |
| 83800-3AW01 note |
Meter Assy, Combination
2024-01 → —
|
AZSH32 | ¥138,000 | |
| 83800-3AW10 note |
Meter Assy, Combination
2023-11 → 2023-12
ended
|
KZSM30 | ¥165,000 | |
| 83800-3AW11 note |
Meter Assy, Combination
2024-01 → —
|
KZSM30 | ¥149,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
