Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

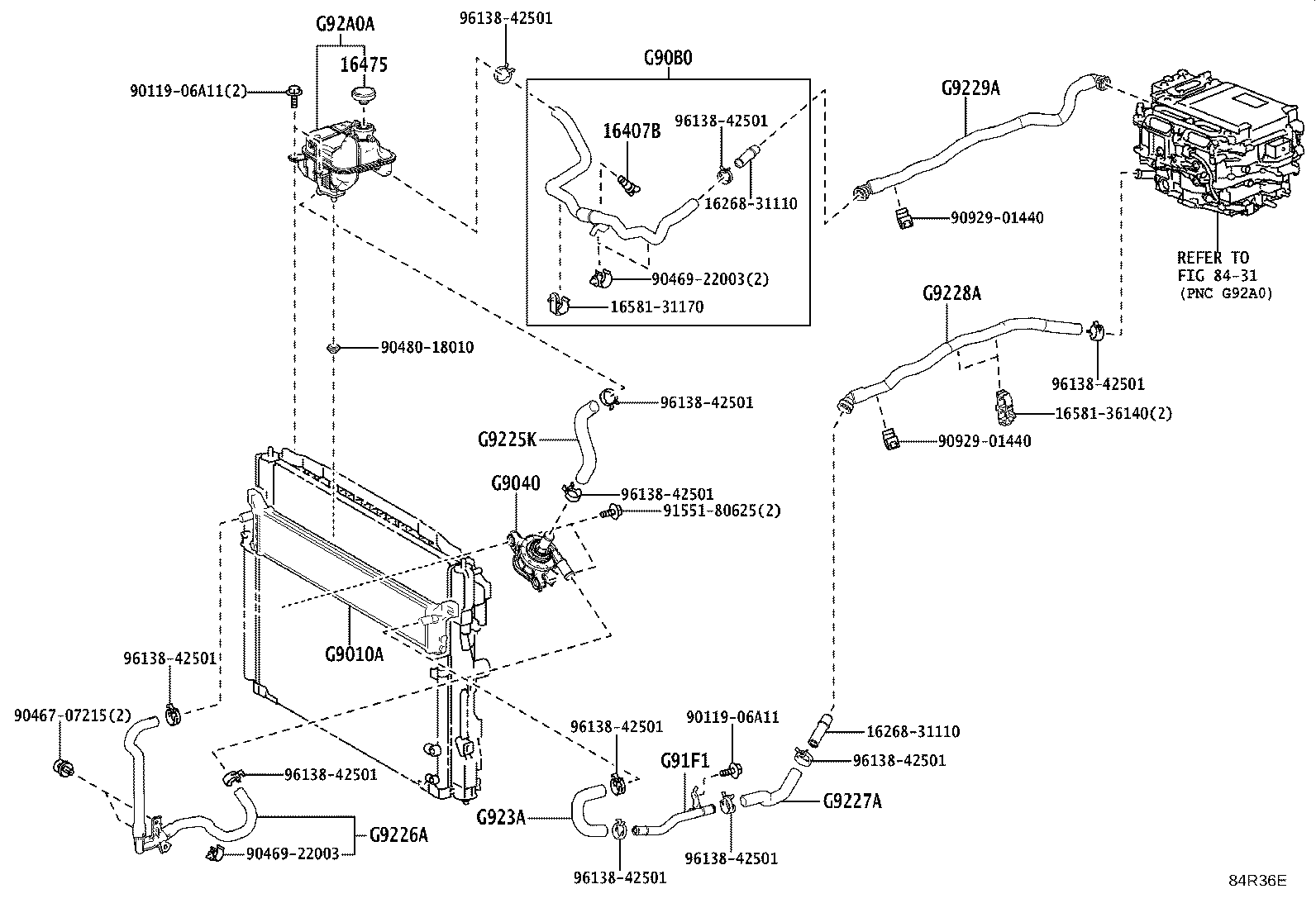

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16407B — Cock Sub-assy, Radiator Drain | ||||
| 16407-64010 |
Cock Sub-assy, Radiator Drain
2023-11 → —
|
A25 AZSH32 | ¥380 | |
| 16475 — Cap, Reserve Tank | ||||
| 16475-28140 |
Cap, Reserve Tank
2023-11 → —
|
A25 AZSH32 | ¥1,200 | |
| G9010A — Radiator Assy | ||||
| G9010-30070 |
Radiator Assy
2023-11 → —
|
AZSH32 | ¥23,400 | |
| G9040 — Inverter Water Pump Assy(W/MOTOR) | ||||
| G9040-48060 |
Inverter Water Pump Assy(W/MOTOR)
2023-11 → —
|
AZSH32 | ¥27,900 | |
| G90B0 — Hose Assy, Inverter Cooling, NO.2 | ||||
| G90B0-30100 |
Hose Assy, Inverter Cooling, NO.2
2023-11 → —
|
AZSH32 | ¥3,110 | |
| G91F1 — Pipe, HV Radiator Outlet | ||||
| G91F1-30040 |
Pipe, HV Radiator Outlet
2023-11 → —
|
AZSH32 | ¥1,990 | |
| G9225K — Hose, Inverter Cooling, NO.1 | ||||
| G9225-11010 |
Hose, Inverter Cooling, NO.1
2023-11 → —
|
AZSH32 | ¥900 | |
| G9226A — Hose, Inverter Cooling, NO.2 | ||||
| G9226-50030 |
Hose, Inverter Cooling, NO.2
2023-11 → —
|
AZSH32 | ¥3,900 | |
| G9227A — Hose, Inverter Cooling, NO.3 | ||||
| G9227-30090 |
Hose, Inverter Cooling, NO.3
2023-11 → —
|
AZSH32 | ¥900 | |
| G9228A — Hose, Inverter Cooling, NO.4 | ||||
| G9228-11041 |
Hose, Inverter Cooling, NO.4
2023-11 → —
|
AZSH32 | ¥2,190 | |
| G9229A — Hose, Inverter Cooling, NO.5 | ||||
| G9229-11041 |
Hose, Inverter Cooling, NO.5
2023-11 → —
|
AZSH32 | ¥2,490 | |
| G923A — Hose, Inverter Cooling, NO.7 | ||||
| G923A-30040 |
Hose, Inverter Cooling, NO.7
2023-11 → —
|
AZSH32 | ¥770 | |
| G92A0A — Tank Assy, Inverter Reserve | ||||
| G91H0-30020 |
Tank Assy, Inverter Reserve
2023-11 → —
|
AZSH32 | ¥6,400 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
