Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

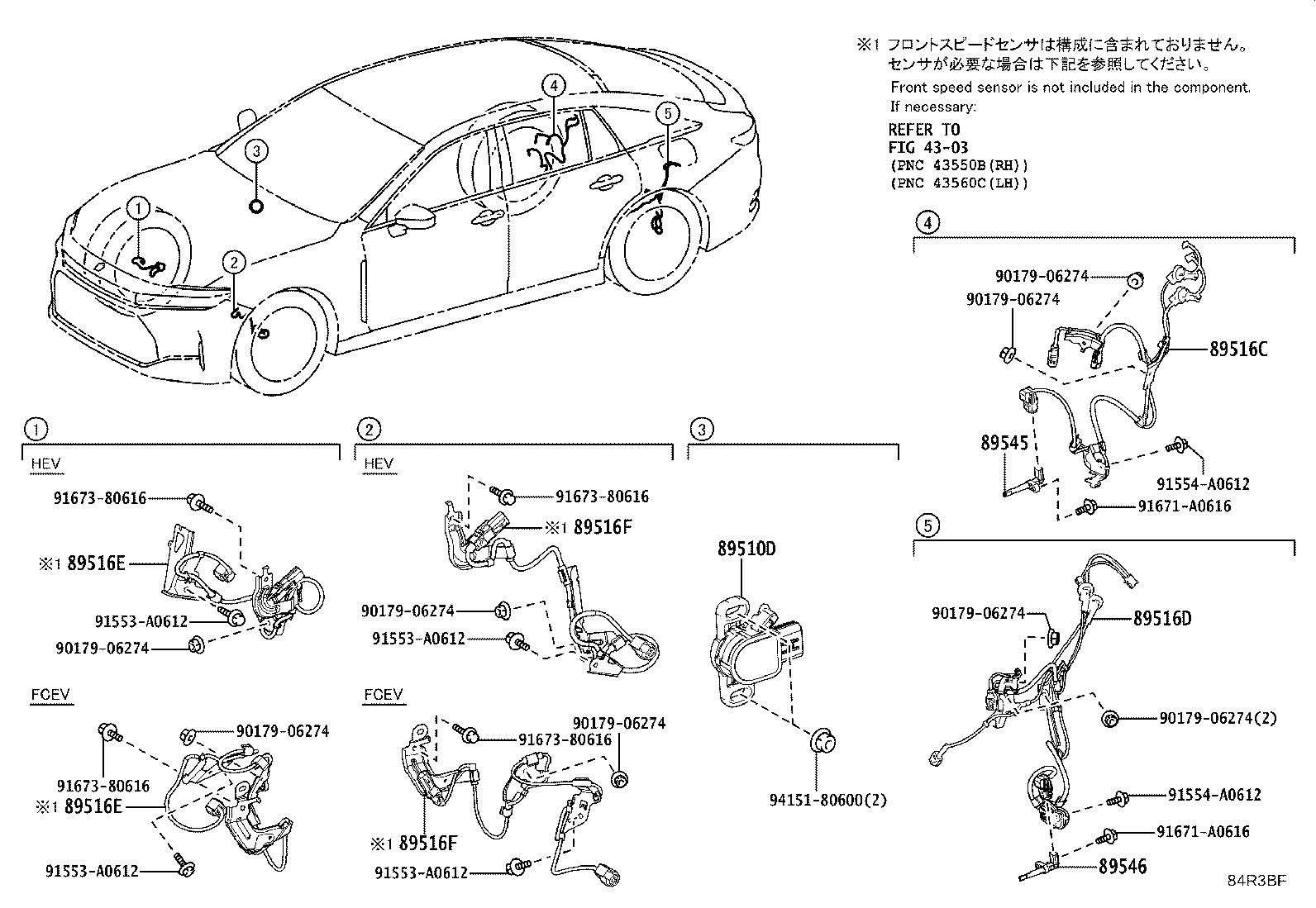

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89510D — Sensor Assy, Brake Pedal Stroke | ||||
| 89510-47040 |
Sensor Assy, Brake Pedal Stroke
2023-11 → —
|
AZSH32,KZSM30 | ¥7,900 | |
| 89516C — Wire, Skid Control Sensor, RH | ||||
| 89516-30270 |
Wire, Skid Control Sensor, RH
2023-11 → —
|
AZSH32,KZSM30 | ¥5,700 | |
| 89516D — Wire, Skid Control Sensor, LH | ||||
| 89516-50230 |
Wire, Skid Control Sensor, LH
2023-11 → —
|
AZSH32,KZSM30 | ¥6,500 | |
| 89516E — Wire, Skid Control Sensor, Front RH | ||||
| 89516-30260 |
Wire, Skid Control Sensor, Front RH
2023-11 → —
|
AZSH32 | ¥4,640 | |
| 89516-62010 |
Wire, Skid Control Sensor, Front RH
2023-11 → —
|
KZSM30 | ¥3,750 | |
| 89516F — Wire, Skid Control Sensor, Front LH | ||||
| 89516-11020 |
Wire, Skid Control Sensor, Front LH
2023-11 → —
|
AZSH32 | ¥3,210 | |
| 89516-62020 |
Wire, Skid Control Sensor, Front LH
2023-11 → —
|
KZSM30 | ¥3,750 | |
| 89545 — Sensor, Speed, Rear RH | ||||
| 89545-30070 |
Sensor, Speed, Rear RH
2023-11 → —
|
AZSH32,KZSM30 | ¥13,600 | |
| 89546 — Sensor, Speed, Rear LH | ||||
| 89546-30070 |
Sensor, Speed, Rear LH
2023-11 → —
|
AZSH32,KZSM30 | ¥13,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
