Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

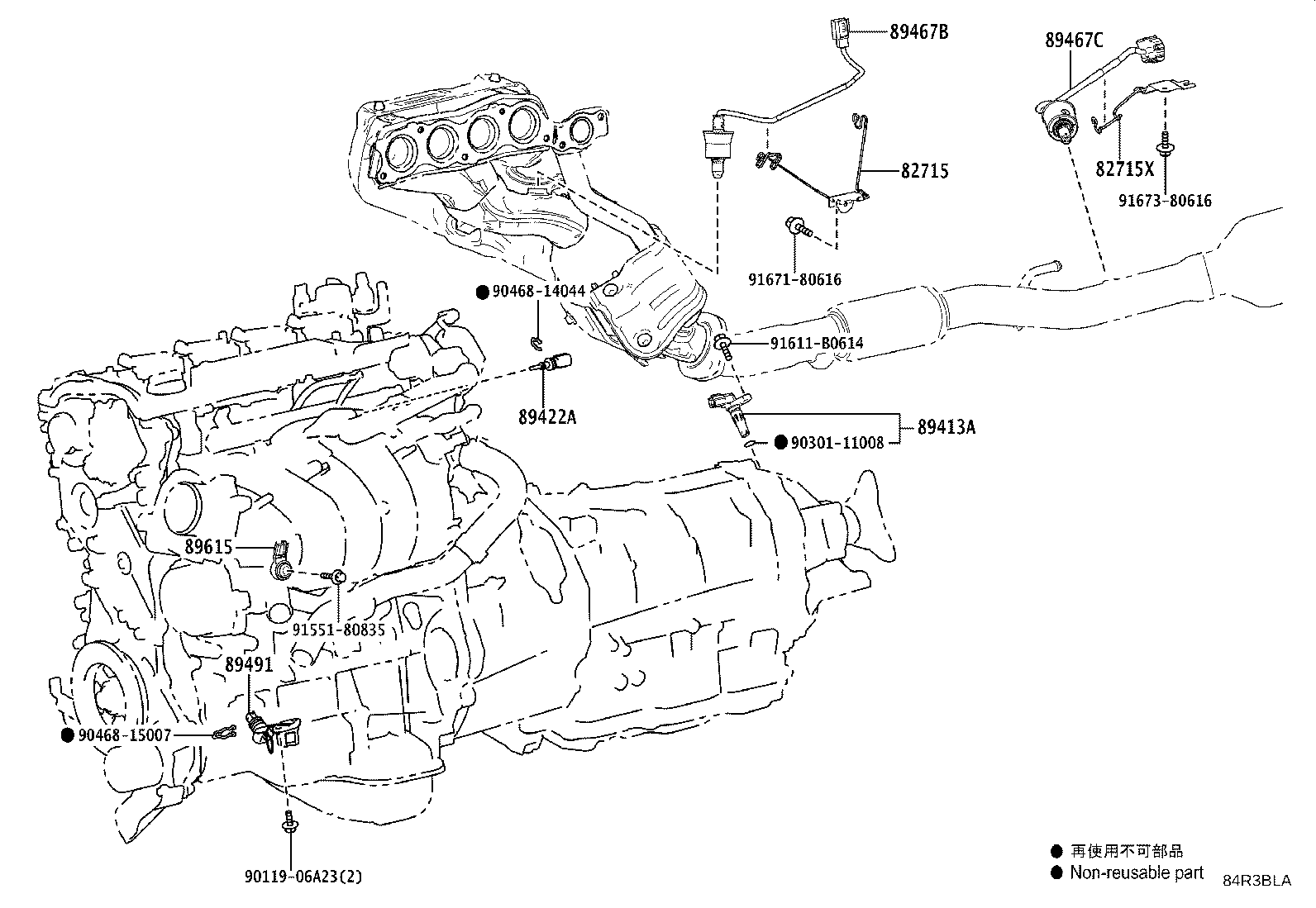

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82715 — Bracket,Wiring Harness Clamp | ||||
| 82715-3A600 |
Bracket,Wiring Harness Clamp
2023-11 → —
|
AZSH32 | ¥380 | |
| 82715X — Bracket, Wiring Harness Clamp, NO.2 | ||||
| 8946A-30060 |
Bracket, Wiring Harness Clamp, NO.2
2023-11 → —
|
AZSH32 | ¥440 | |
| 89413A — Sensor, Transmission Revolution | ||||
| 89413-11011 |
Sensor, Transmission Revolution
2023-11 → —
|
AZSH32 | ¥4,010 | |
| 89422A — Sensor, Water Temperature | ||||
| 89422-33040 |
Sensor, Water Temperature
2023-11 → —
|
AZSH32 | ¥2,410 | |
| 89422-47010 |
Sensor, Water Temperature
2023-11 → —
|
KZSM30 | ¥2,410 | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-30140 |
Sensor, Air Fuel Ratio
2023-11 → —
|
AZSH32 | ¥9,900 | |
| 89467C — Sensor, Air Fuel Ratio, NO.2 | ||||
| 89467-30150 |
Sensor, Air Fuel Ratio, NO.2
2023-11 → —
|
AZSH32 | ¥9,900 | |
| 89491 — Sensor, Engine Oil Level | ||||
| 89491-33052 |
Sensor, Engine Oil Level
2023-11 → —
|
AZSH32 | ¥3,330 | |
| 89615 — Sensor, Knock Control | ||||
| 89615-20090 |
Sensor, Knock Control
2023-11 → —
|
AZSH32 | ¥2,370 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
