Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

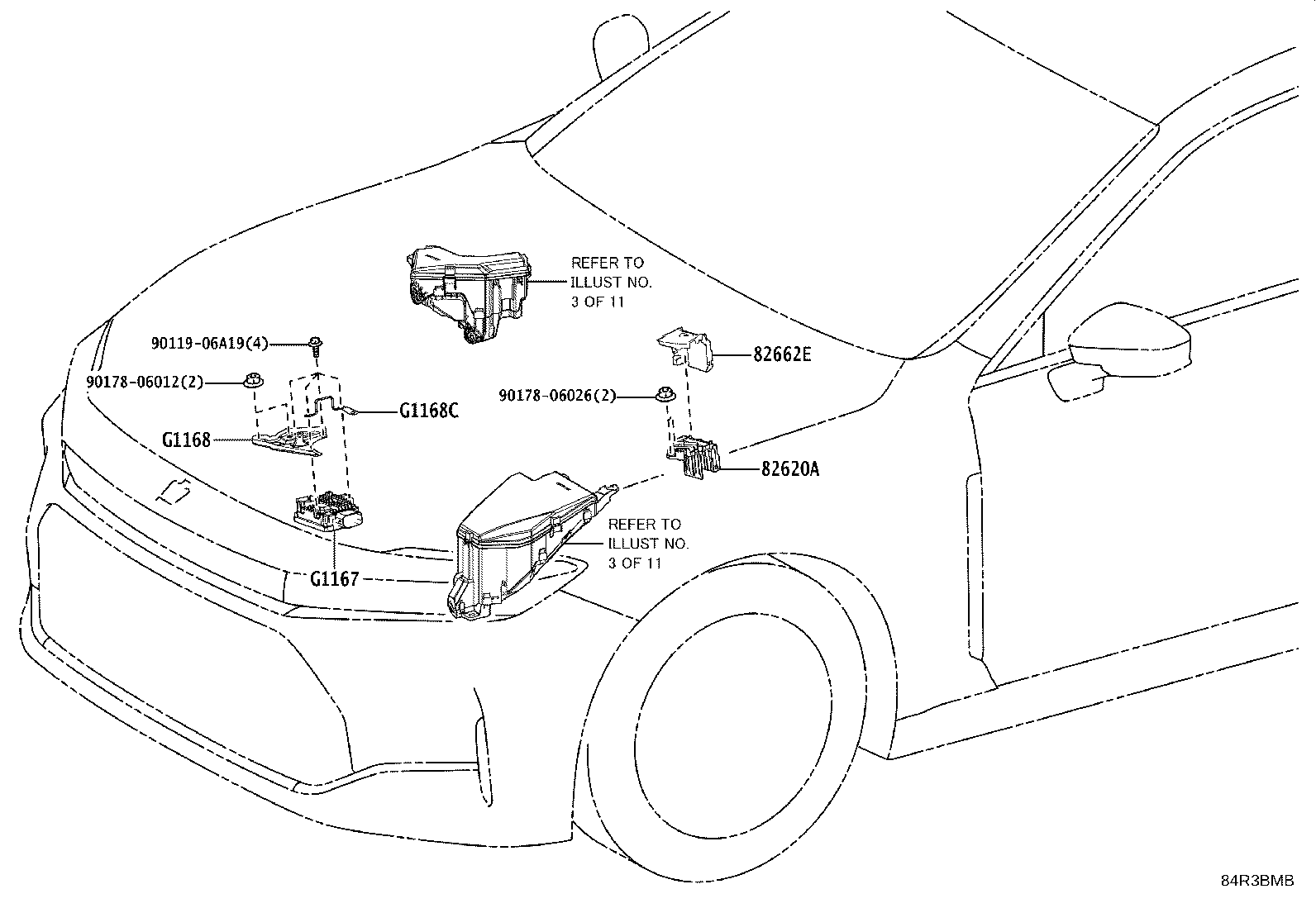

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82620A — Block Assy, Fusible Link | ||||
| 82620-50210 |
Block Assy, Fusible Link
2023-11 → —
|
AZSH32,KZSM30 | ¥2,780 | |
| 82662E — Cover, Relay Block, Upper, NO.7 | ||||
| 82662-50500 |
Cover, Relay Block, Upper, NO.7
2023-11 → —
|
AZSH32,KZSM30 | ¥650 | |
| G1167 — Controller, Oil Pump Motor | ||||
| G1167-50020 |
Controller, Oil Pump Motor
2023-11 → —
|
AZSH32 | ¥34,200 | |
| G1168 — Bracket, Oil Pump Motor Controller | ||||
| G1168-11010 |
Bracket, Oil Pump Motor Controller
2023-11 → —
|
AZSH32 | ¥990 | |
| G1168C — Bracket, Oil Pump Motor Controller, NO.2 | ||||
| G1168-11051 |
Bracket, Oil Pump Motor Controller, NO.2
2023-11 → —
|
AZSH32 | ¥210 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
