Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

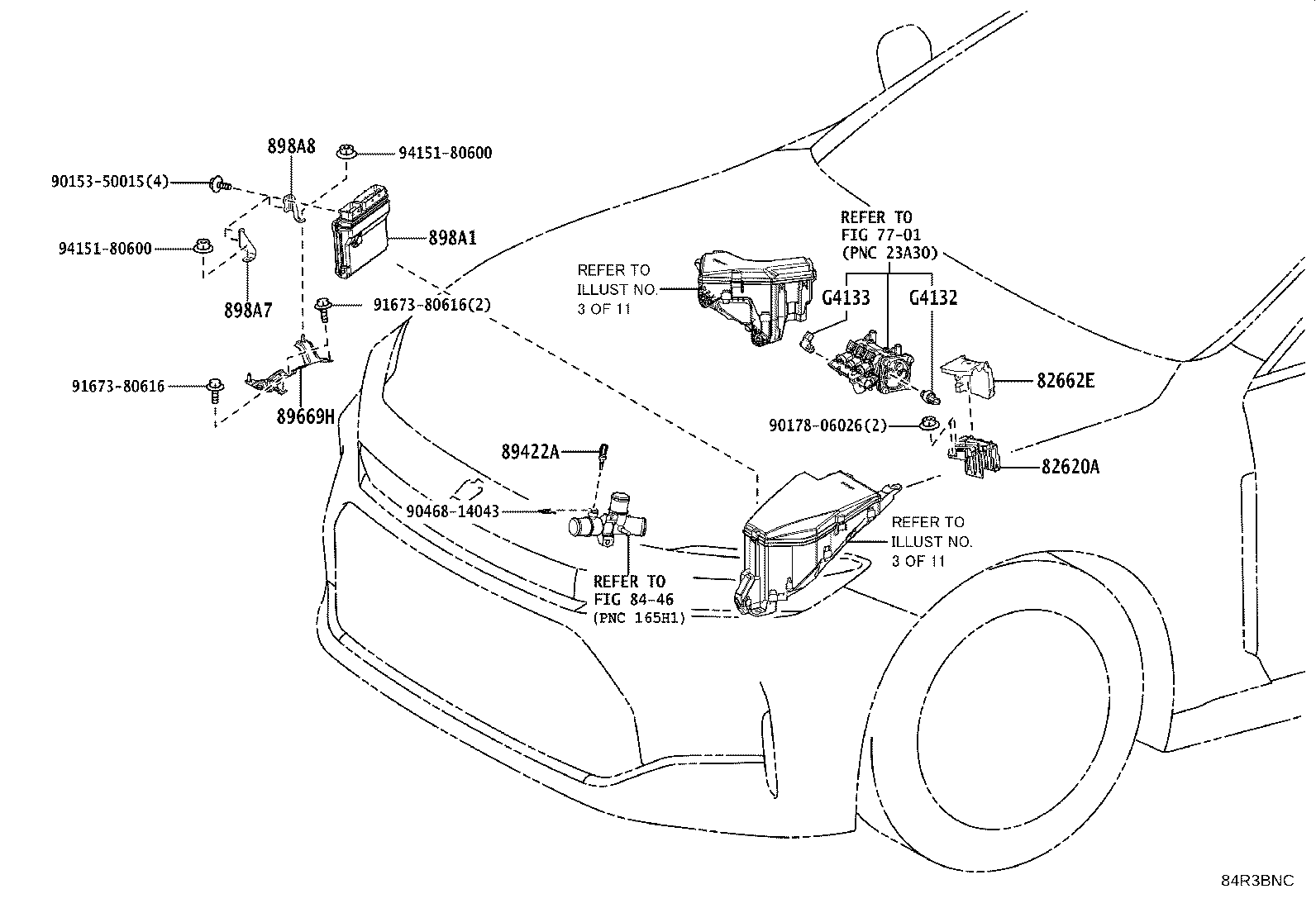

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82620A — Block Assy, Fusible Link | ||||
| 82620-50210 |
Block Assy, Fusible Link
2023-11 → —
|
AZSH32,KZSM30 | ¥2,780 | |
| 82662E — Cover, Relay Block, Upper, NO.7 | ||||
| 82662-50500 |
Cover, Relay Block, Upper, NO.7
2023-11 → —
|
AZSH32,KZSM30 | ¥650 | |
| 89422A — Sensor, Water Temperature | ||||
| 89422-33040 |
Sensor, Water Temperature
2023-11 → —
|
AZSH32 | ¥2,410 | |
| 89422-47010 |
Sensor, Water Temperature
2023-11 → —
|
KZSM30 | ¥2,410 | |
| 89669H — Bracket, FC Control Computer, NO.3 | ||||
| 89669-30180 |
Bracket, FC Control Computer, NO.3
2023-11 → —
|
KZSM30 | ¥660 | |
| 898A1 — Computer, FC Control | ||||
| 898A1-62070 |
Computer, FC Control
2023-11 → —
|
KZSM30 | ¥39,400 | |
| 898A7 — Bracket, FC Control Computer, NO.1 | ||||
| 898A7-62010 |
Bracket, FC Control Computer, NO.1
2023-11 → —
|
KZSM30 | ¥550 | |
| 898A8 — Bracket, FC Control Computer, NO.2 | ||||
| 898A8-62010 |
Bracket, FC Control Computer, NO.2
2023-11 → —
|
KZSM30 | ¥470 | |
| G4132 — Sensor, Hydrogen Primary Pressure | ||||
| G4132-62020 |
Sensor, Hydrogen Primary Pressure
2023-11 → —
|
KZSM30 | ¥13,300 | |
| G4133 — Sensor, Hydrogen Secondary Pressure | ||||
| G4133-62020 |
Sensor, Hydrogen Secondary Pressure
2023-11 → —
|
KZSM30 | ¥10,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
