Exploded illustration 84R3BQF 82600D — INSTRUMENT PANEL FUSE (7 parts) 82210N — INSTRUMENT PANEL FUSIBLE LINK (1 parts) 9167380620 — not listed in this catalogue 9167380625 — not listed in this catalogue 89100 — COMPUTER ASSY, NETWORK GATEWAY(FOR DC POWER SUPPLY) (1 parts) 89980 — COMPUTER ASSY, HYBRID VEHICLE CONTROL (1 parts) 81713 — HOLDER, FUSEE (1 parts) 83650 — FUSEE (1 parts) 28913 — COVER, INTEGRATION CONTROL (1 parts) 894C7 — BRACKET, SHIFT CONTROL COMPUTER, NO.1 (1 parts) 894C1 — COMPUTER, SHIFT CONTROL (2 parts) 89260A — COMPUTER ASSY, PLUGIN CHARGE CONTROL (1 parts) 89227 — COMPUTER, MULTIPLEX TILT & TELESCOPIC (1 parts) 8934C — CIRCUIT, SECOND POWER SUPPLY REMOTE PARKING (2 parts) 82673A — BRACKET, JUNCTION BLOCK, NO.1 (1 parts) 82716A — BRACKET, WIRING HARNESS CLAMP (1 parts) 82673B — BRACKET, JUNCTION BLOCK, NO.2 (1 parts) 89111 — COMPUTER, NETWORK GATEWAY (1 parts) 82715W — BRACKET, WIRING HARNESS CLAMP (1 parts) 82673M — BRACKET, JUNCTION BLOCK, NO.4 (1 parts) 82673L — BRACKET, JUNCTION BLOCK, NO.3 (1 parts) 869A1 — COMPUTER, INTELLIGENT TRANSPORT SYSTEMS COMMUNICATION (3 parts) 28911A — BRACKET, INTEGRATION CONTROL SUPPLY, NO.2 (1 parts) 28911 — BRACKET, INTEGRATION CONTROL SUPPLY, NO.1 (1 parts) 9018306032 — not listed in this catalogue 9017906274 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9046709232 — not listed in this catalogue 9046709232 — not listed in this catalogue 9017906274 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9167380616 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9015960383 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9017906274 — not listed in this catalogue 9015350015 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9015350015 — not listed in this catalogue 28912 — SUPPLY, INTEGRATION CONTROL (3 parts) 82730G — BOX ASSY, POWER DISTRIBUTION (1 parts) 82730D — BLOCK ASSY, PASSENGER SIDE JUNCTION (1 parts) 82672A — COVER, JUNCTION BLOCK (1 parts) 82210N — INSTRUMENT PANEL FUSIBLE LINK (1 parts) 82600D — INSTRUMENT PANEL FUSE (7 parts) 82672B — COVER, JUNCTION BLOCK (1 parts) 82600D — INSTRUMENT PANEL FUSE (7 parts) 82210N — INSTRUMENT PANEL FUSIBLE LINK (1 parts) 84340 — SWITCH ASSY, STOP LAMP (1 parts) 85965 — RELAY, ROOM LAMP CONTROL (1 parts) 84345 — ADJUSTER, STOP LAMP SWITCH MOUNTING (1 parts) 9167380616 — not listed in this catalogue 894C8 — BRACKET, SHIFT CONTROL COMPUTER, NO.2 (1 parts) 9015350015 — not listed in this catalogue 8266626350 — not listed in this catalogue 89111A — COMPUTER, NETWORK GATEWAY, NO.2 (1 parts) 89120A — SENSOR, AUTOMATIC LIGHT CONTROL (1 parts) 89221 — COMPUTER, MULTIPLEX NETWORK BODY (3 parts)

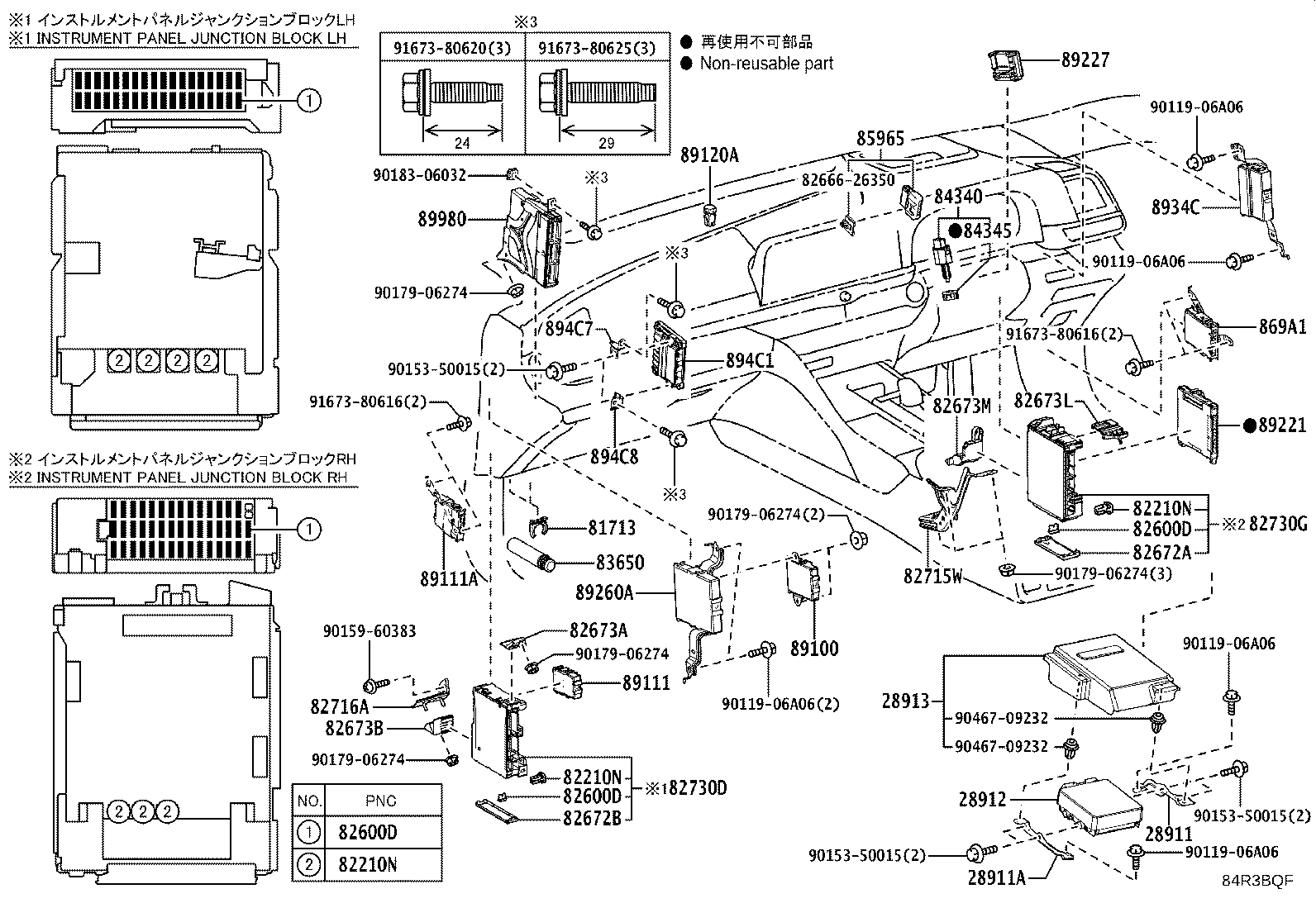

84R3BQF · 38 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
48 parts on this figure
Part number Description Fitment Price
28911 — Bracket, Integration Control Supply, NO.1
894D2-30030 Bracket, Integration Control Supply, NO.1
2023-11 → —
A25,MOTOR AZSH32,KZSM30 ¥670
28911A — Bracket, Integration Control Supply, NO.2
894D2-30040 Bracket, Integration Control Supply, NO.2
2023-11 → —
A25,MOTOR AZSH32,KZSM30 ¥600
28912 — Supply, Integration Control
28912-25010 Supply, Integration Control
2023-11 → —
A25 AZSH32 G ¥26,800
28912-25010 note Supply, Integration Control
2023-11 → 2025-06 ended
A25,MOTOR AZSH32,KZSM30 Z ¥26,800
28912-25020 Supply, Integration Control
2023-11 → —
A25,MOTOR AZSH32,KZSM30 Z ¥27,700
28913 — Cover, Integration Control
28913-76010 Cover, Integration Control
2023-11 → —
A25,MOTOR AZSH32,KZSM30 ¥1,820
81713 — Holder, Fusee
62199-48010 Holder, Fusee
2023-11 → —
AZSH32,KZSM30 ¥130
82210N — Instrument Panel Fusible Link
90982-08306 note Instrument Panel Fusible Link
2023-11 → —
AZSH32,KZSM30 ¥390
82600D — Instrument Panel Fuse
90982-09019 note Instrument Panel Fuse
2023-11 → —
AZSH32,KZSM30 ¥70
90982-09020 note Instrument Panel Fuse
2023-11 → —
AZSH32,KZSM30 ¥70
90982-09021 note Instrument Panel Fuse
2023-11 → —
AZSH32,KZSM30 ¥70
90982-09022 note Instrument Panel Fuse
2023-11 → —
AZSH32,KZSM30 ¥70
90982-09023 note Instrument Panel Fuse
2023-11 → —
AZSH32,KZSM30 ¥70
90982-09024 note Instrument Panel Fuse
2023-11 → —
AZSH32,KZSM30 ¥70
90982-09025 note Instrument Panel Fuse
2023-11 → —
AZSH32,KZSM30 ¥80
82672A — Cover, Junction Block
82672-50390 Cover, Junction Block
2023-11 → —
AZSH32,KZSM30 ¥260
82672B — Cover, Junction Block
82672-50420 Cover, Junction Block
2023-11 → —
AZSH32,KZSM30 ¥260
82673A — Bracket, Junction Block, NO.1
82673-48130 Bracket, Junction Block, NO.1
2023-11 → —
AZSH32,KZSM30 ¥400
82673B — Bracket, Junction Block, NO.2
82673-50060 Bracket, Junction Block, NO.2
2023-11 → —
AZSH32,KZSM30 ¥510
82673L — Bracket, Junction Block, NO.3
82673-50070 Bracket, Junction Block, NO.3
2023-11 → —
AZSH32,KZSM30 ¥590
82673M — Bracket, Junction Block, NO.4
82673-50080 Bracket, Junction Block, NO.4
2023-11 → —
AZSH32,KZSM30 ¥750
82715W — Bracket, Wiring Harness Clamp
82715-50M10 Bracket, Wiring Harness Clamp
2023-11 → —
AZSH32,KZSM30 ¥1,680
82716A — Bracket, Wiring Harness Clamp
82715-50M20 Bracket, Wiring Harness Clamp
2023-11 → —
AZSH32,KZSM30 ¥580
82730D — Block Assy, Passenger Side Junction
82730-5A650 Block Assy, Passenger Side Junction
2023-11 → —
AZSH32,KZSM30 ¥13,100
82730G — Box Assy, Power Distribution
82730-5A630 Box Assy, Power Distribution
2023-11 → —
AZSH32,KZSM30 ¥28,100
83650 — Fusee
90986-01005 Fusee
2023-11 → —
AZSH32,KZSM30 —
84340 — Switch Assy, Stop Lamp
84340-19095 Switch Assy, Stop Lamp
2023-11 → —
AZSH32,KZSM30 ¥1,620
84345 — Adjuster, Stop Lamp Switch Mounting
84345-51010 Adjuster, Stop Lamp Switch Mounting
2023-11 → —
AZSH32,KZSM30 ¥220
85965 — Relay, Room Lamp Control
85965-40020 Relay, Room Lamp Control
2023-11 → 2025-06 ended
AZSH32,KZSM30 ¥13,900
869A1 — Computer, Intelligent Transport Systems Communication
869A0-62030 note Computer, Intelligent Transport Systems Communication
2023-11 → 2024-09 ended
AZSH32,KZSM30 Z ¥61,900
869A0-62030 note Computer, Intelligent Transport Systems Communication
2023-11 → —
AZSH32 G ¥61,900
869A0-62030 Computer, Intelligent Transport Systems Communication
2024-09 → —
AZSH32,KZSM30 Z ¥61,900
89100 — Computer Assy, Network Gateway(FOR DC POWER SUPPLY)
89100-62130 Computer Assy, Network Gateway(FOR DC POWER SUPPLY)
2023-11 → —
KZSM30 ¥5,500
89111 — Computer, Network Gateway
89111-62070 note Computer, Network Gateway
2023-11 → —
KZSM30 ¥5,500
89111A — Computer, Network Gateway, NO.2
89100-62160 Computer, Network Gateway, NO.2
2023-11 → —
AZSH32,KZSM30 ¥5,500
89120A — Sensor, Automatic Light Control
89121-30020 Sensor, Automatic Light Control
2023-11 → —
AZSH32,KZSM30 ¥4,010
89221 — Computer, Multiplex Network Body
89220-3AA10 note Computer, Multiplex Network Body
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥31,300
89220-3AA10 note Computer, Multiplex Network Body
2023-11 → —
AZSH32 G ¥31,300
89220-3AA20 note Computer, Multiplex Network Body
2023-11 → —
AZSH32,KZSM30 Z ¥31,300
89227 — Computer, Multiplex Tilt & Telescopic
89227-48070 Computer, Multiplex Tilt & Telescopic
2023-11 → —
AZSH32,KZSM30 ¥17,500
89260A — Computer Assy, Plugin Charge Control
89260-62030 Computer Assy, Plugin Charge Control
2023-11 → —
KZSM30 ¥44,300
8934C — Circuit, Second Power Supply Remote Parking
8934C-62010 note Circuit, Second Power Supply Remote Parking
2023-11 → 2024-10 ended
AZSH32,KZSM30 Z ¥7,900
8934C-62010 Circuit, Second Power Supply Remote Parking
2023-11 → —
AZSH32,KZSM30 Z ¥7,900
894C1 — Computer, Shift Control
894C1-50160 note Computer, Shift Control
2023-11 → —
AZSH32 ¥40,500
894C1-62090 note Computer, Shift Control
2023-11 → —
KZSM30 ¥40,500
894C7 — Bracket, Shift Control Computer, NO.1
894C7-50010 Bracket, Shift Control Computer, NO.1
2023-11 → —
AZSH32,KZSM30 ¥380
894C8 — Bracket, Shift Control Computer, NO.2
894C8-11010 Bracket, Shift Control Computer, NO.2
2023-11 → —
AZSH32,KZSM30 ¥280
89980 — Computer Assy, Hybrid Vehicle Control
89980-30340 note Computer Assy, Hybrid Vehicle Control
2023-11 → —
AZSH32 ¥38,500
