Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

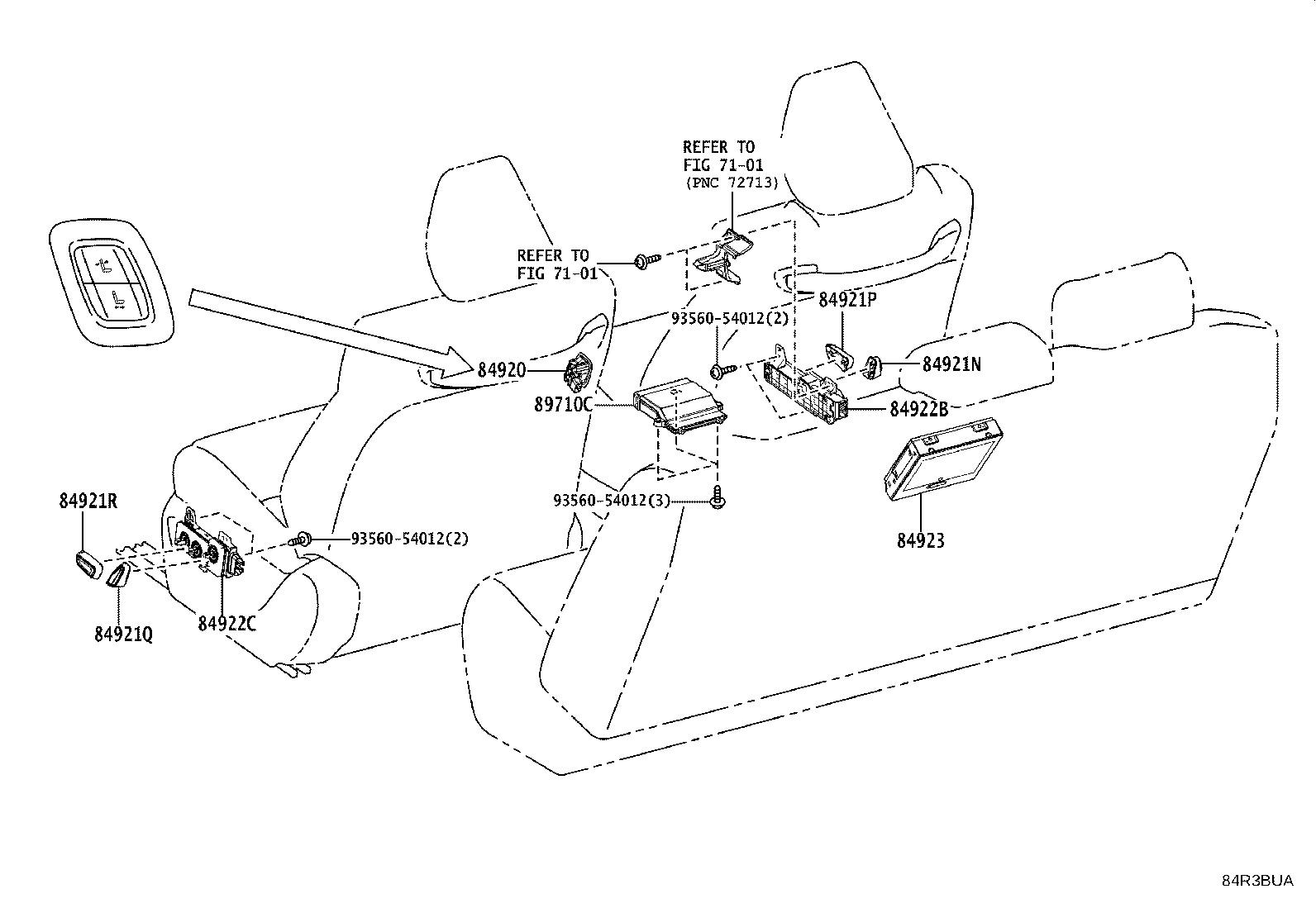

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84920 — Switch Assy, Power Seat | ||||
| 84920-33110-C0 note |
Switch Assy, Power Seat
2023-11 → —
|
AZSH32 G | ¥3,780 | |
| 84920-33110-C0 note |
Switch Assy, Power Seat
2023-11 → —
|
AZSH32,KZSM30 Z | ¥3,780 | |
| 84920-33110-E8 note |
Switch Assy, Power Seat
2023-11 → —
|
AZSH32,KZSM30 Z | ¥3,780 | |
| 84921N — Knob, Power Seat Switch, RH (FOR RECLINING) | ||||
| 84921-42020-C0 note |
Knob, Power Seat Switch, RH (FOR RECLINING)
2023-11 → —
|
AZSH32,KZSM30 Z | ¥390 | |
| 84921-42020-C0 note |
Knob, Power Seat Switch, RH (FOR RECLINING)
2023-11 → —
|
AZSH32 G | ¥390 | |
| 84921P — Knob, Power Seat Switch, RH (FOR SLIDE & VERTICAL) | ||||
| 84921-33190-C0 note |
Knob, Power Seat Switch, RH (FOR SLIDE & VERTICAL)
2023-11 → —
|
AZSH32,KZSM30 Z | ¥500 | |
| 84921-33190-C0 note |
Knob, Power Seat Switch, RH (FOR SLIDE & VERTICAL)
2023-11 → —
|
AZSH32 G | ¥500 | |
| 84921Q — Knob, Power Seat Switch, LH (FOR RECLINING) | ||||
| 84921-42010-C0 note |
Knob, Power Seat Switch, LH (FOR RECLINING)
2023-11 → —
|
AZSH32 G | ¥390 | |
| 84921-42010-C0 note |
Knob, Power Seat Switch, LH (FOR RECLINING)
2023-11 → —
|
AZSH32,KZSM30 Z | ¥390 | |
| 84921R — Knob, Power Seat Switch, LH (FOR SLIDE & VERTICAL) | ||||
| 84921-33170-C0 note |
Knob, Power Seat Switch, LH (FOR SLIDE & VERTICAL)
2023-11 → —
|
AZSH32,KZSM30 Z | ¥500 | |
| 84921-33170-C0 note |
Knob, Power Seat Switch, LH (FOR SLIDE & VERTICAL)
2023-11 → —
|
AZSH32 G | ¥500 | |
| 84922B — Switch, Front Power Seat, RH | ||||
| 84922-33190-C0 note |
Switch, Front Power Seat, RH
2023-11 → —
|
AZSH32,KZSM30 Z | ¥6,400 | |
| 84922-33190-C0 note |
Switch, Front Power Seat, RH
2023-11 → —
|
AZSH32 G | ¥6,400 | |
| 84922C — Switch, Front Power Seat, LH | ||||
| 84922-33180 |
Switch, Front Power Seat, LH
2023-11 → —
|
AZSH32 G | ¥4,720 | |
| 84922-33200 |
Switch, Front Power Seat, LH
2023-11 → —
|
AZSH32,KZSM30 Z | ¥5,500 | |
| 84923 — Switch, Rear Power Seat | ||||
| 84923-30330 |
Switch, Rear Power Seat
2023-11 → —
|
AZSH32,KZSM30 Z | ¥75,000 | |
| 89710C — Computer Assy, Position Control, RH | ||||
| 89710-62050 |
Computer Assy, Position Control, RH
2023-11 → —
|
AZSH32,KZSM30 | ¥34,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
