Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11

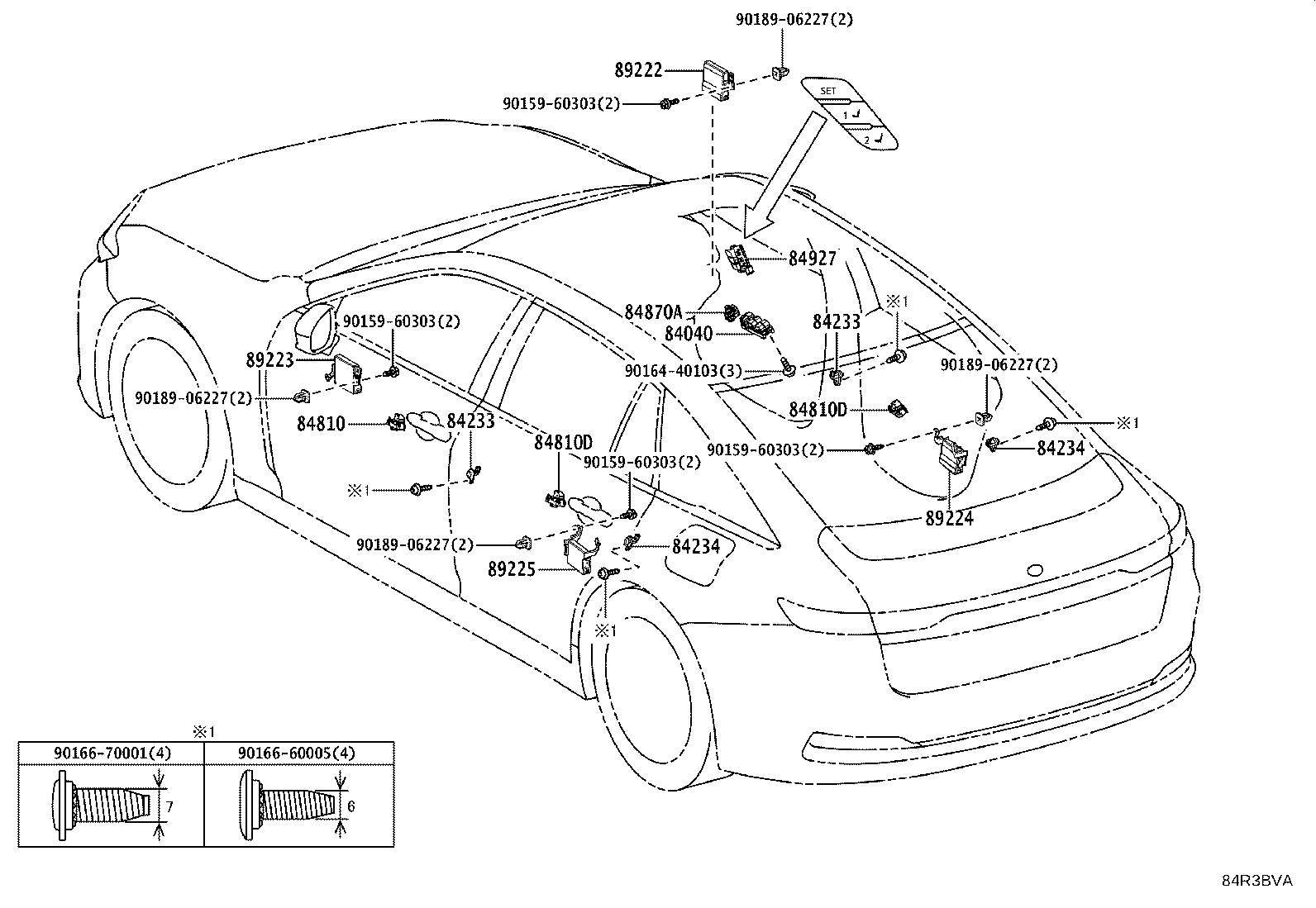

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

11 parts on this figure

Part number	Description	Fitment	Price
84040 — Master Switch Assy,Multiplex Network
84040-30330	Master Switch Assy,Multiplex Network 2023-11 → —	AZSH32,KZSM30	¥9,500
84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84231-50190	Switch Assy, Courtesy Lamp (FOR FRONT DOOR) 2023-11 → —	AZSH32,KZSM30	¥660
84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84231-50190	Switch Assy, Courtesy Lamp (FOR REAR DOOR) 2023-11 → —	AZSH32,KZSM30	¥660
84810 — Switch Assy, Power Window Regulator
84810-30230	Switch Assy, Power Window Regulator 2023-11 → —	AZSH32,KZSM30	¥1,900
84810D — Switch Assy, Power Window Regulator, Rear
84810-30230	Switch Assy, Power Window Regulator, Rear 2023-11 → —	AZSH32,KZSM30	¥1,900
84870A — Switch Assy, Outer Mirror
84872-30140	Switch Assy, Outer Mirror 2023-11 → —	AZSH32,KZSM30	¥4,220
84927 — Switch, Seat Memory
84927-30170	Switch, Seat Memory 2023-11 → —	AZSH32,KZSM30	¥3,740
89222 — Computer, Multiplex Network Door, Front RH
89222-30410	Computer, Multiplex Network Door, Front RH 2023-11 → —	AZSH32,KZSM30	¥18,000
89223 — Computer, Multiplex Network Door, Front LH
89223-30200	Computer, Multiplex Network Door, Front LH 2023-11 → —	AZSH32,KZSM30	¥18,000
89224 — Computer, Multiplex Network Door, Rear RH
89224-30160	Computer, Multiplex Network Door, Rear RH 2023-11 → —	AZSH32,KZSM30	¥16,100
89225 — Computer, Multiplex Network Door, Rear LH
89225-30100	Computer, Multiplex Network Door, Rear LH 2023-11 → —	AZSH32,KZSM30	¥16,100

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
