Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

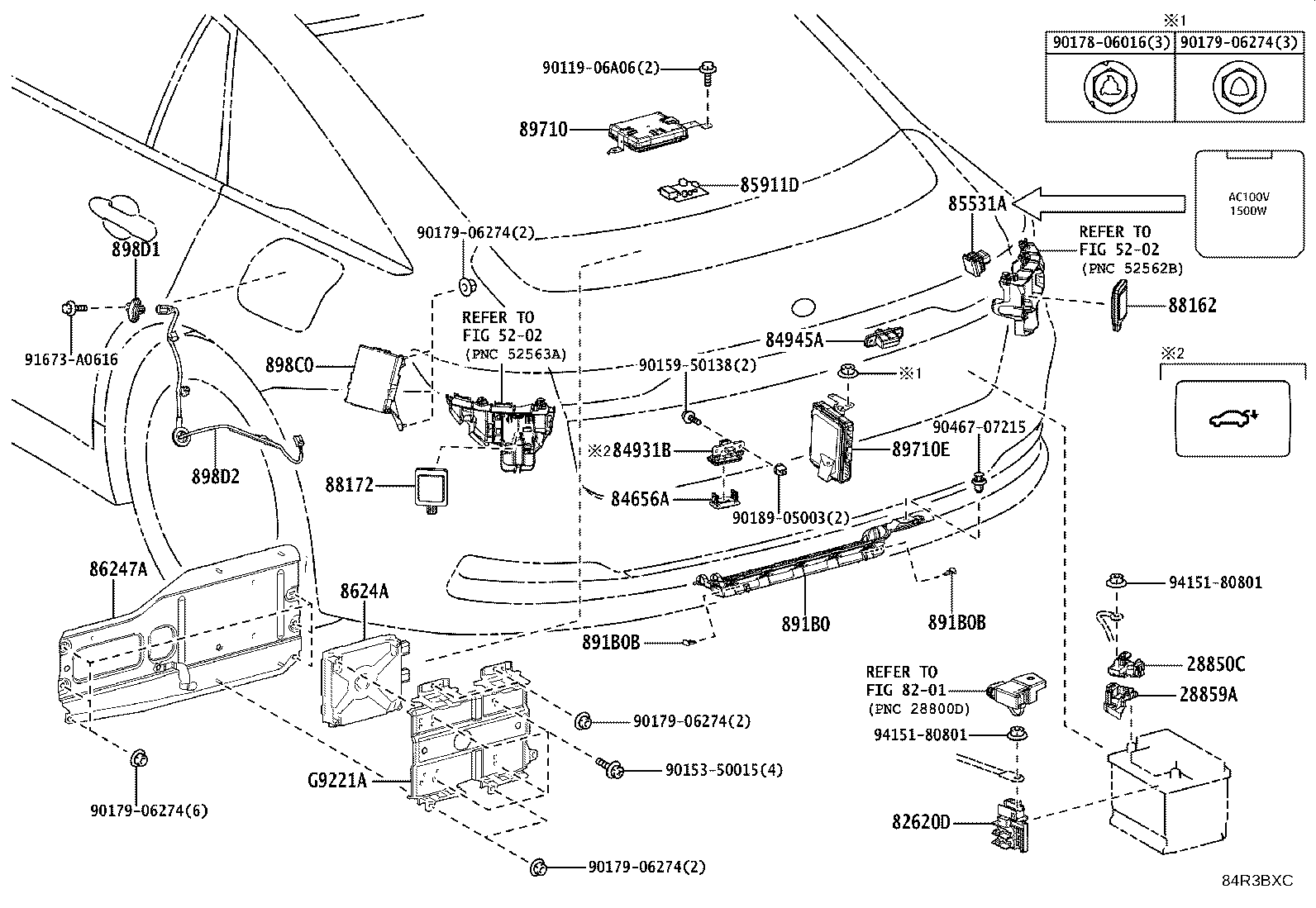

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28850C — Sensor Assy, Battery State | ||||
| 28850-K0010 |
Sensor Assy, Battery State
2023-11 → —
|
MOTOR KZSM30 | ¥7,400 | |
| 28850-K0020 |
Sensor Assy, Battery State
2023-11 → —
|
A25 AZSH32 | ¥7,400 | |
| 28859A — Holder, Battery Current Sensor | ||||
| 28859-25170 |
Holder, Battery Current Sensor
2023-11 → —
|
A25 AZSH32 | ¥370 | |
| 28859-77010 |
Holder, Battery Current Sensor
2023-11 → —
|
MOTOR KZSM30 | ¥400 | |
| 82620D — Block Assy, Fusible Link | ||||
| 82620-62040 |
Block Assy, Fusible Link
2023-11 → —
|
KZSM30 | ¥2,370 | |
| 84656A — Bezel, Switch | ||||
| 84656-50020 |
Bezel, Switch
2023-11 → —
|
AZSH32,KZSM30 | ¥440 | |
| 84931B — Switch, Door Control | ||||
| 84931-30110 |
Switch, Door Control
2023-11 → —
|
AZSH32,KZSM30 | ¥2,270 | |
| 84945A — Switch, Luggage Electrical Key | ||||
| 84945-12070 |
Switch, Luggage Electrical Key
2023-11 → —
|
AZSH32,KZSM30 | ¥2,320 | |
| 85531A — Socket, Power Outlet, NO.2 | ||||
| 85530-47040 |
Socket, Power Outlet, NO.2
2023-11 → —
|
AZSH32,KZSM30 | ¥1,750 | |
| 85911D — Relay, Rear Sunshade | ||||
| 85911-30041 |
Relay, Rear Sunshade
2023-11 → —
|
AZSH32,KZSM30 Z | ¥7,400 | |
| 86247A — Bracket, Voltage Inverter | ||||
| 86247-62030 |
Bracket, Voltage Inverter
2023-11 → —
|
KZSM30 | ¥9,100 | |
| 8624A — Inverter, Voltage | ||||
| 8624A-42010 |
Inverter, Voltage
2023-11 → —
|
KZSM30 | ¥84,900 | |
| 8624A-48070 |
Inverter, Voltage
2023-11 → —
|
AZSH32 | ¥84,900 | |
| 88162 — Sensor, Blind Spot Monitor, RH | ||||
| 88162-30060 note |
Sensor, Blind Spot Monitor, RH
2023-11 → 2024-03
ended
|
AZSH32,KZSM30 | ¥42,000 | |
| 88162-50021 note |
Sensor, Blind Spot Monitor, RH
2024-03 → —
|
AZSH32,KZSM30 | ¥38,100 | |
| 88172 — Sensor, Blind Spot Monitor, LH | ||||
| 88162-30060 note |
Sensor, Blind Spot Monitor, LH
2023-11 → 2024-03
ended
|
AZSH32,KZSM30 | ¥42,000 | |
| 88162-50021 note |
Sensor, Blind Spot Monitor, LH
2024-03 → —
|
AZSH32,KZSM30 | ¥38,100 | |
| 891B0 — Sensor Assy, Kick Door Control | ||||
| 891B0-30050 |
Sensor Assy, Kick Door Control
2023-11 → —
|
AZSH32,KZSM30 | ¥24,300 | |
| 891B0B — Retainer, Kick Door Control Sensor | ||||
| 75392-35220 |
Retainer, Kick Door Control Sensor
2023-11 → —
|
AZSH32,KZSM30 | ¥130 | |
| 89710 — Computer Assy, Position Control | ||||
| 89710-30300 |
Computer Assy, Position Control
2023-11 → 2025-05
ended
|
AZSH32,KZSM30 Z | ¥57,600 | |
| 89710E — Computer Assy, Position Control, NO.2 | ||||
| 89710-30280 |
Computer Assy, Position Control, NO.2
2023-11 → 2025-05
ended
|
KZSM30 | ¥57,600 | |
| 89710-30290 |
Computer Assy, Position Control, NO.2
2023-11 → 2025-05
ended
|
AZSH32 Z | ¥57,600 | |
| 898C0 — Computer Assy, Hydrogen Fuel Control | ||||
| 898C0-30010 |
Computer Assy, Hydrogen Fuel Control
2023-11 → —
|
KZSM30 | ¥33,700 | |
| 898D1 — Transmitter, Hydrogen Fuel Control | ||||
| 898D1-62010 |
Transmitter, Hydrogen Fuel Control
2023-11 → —
|
KZSM30 | ¥49,000 | |
| 898D2 — Wire, Hydrogen Fuel Control | ||||
| 898D2-30010 |
Wire, Hydrogen Fuel Control
2023-11 → —
|
KZSM30 | ¥1,070 | |
| G9221A — Cover, Inverter, Upper | ||||
| G9221-62011 |
Cover, Inverter, Upper
2023-11 → —
|
KZSM30 | ¥5,800 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
