Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

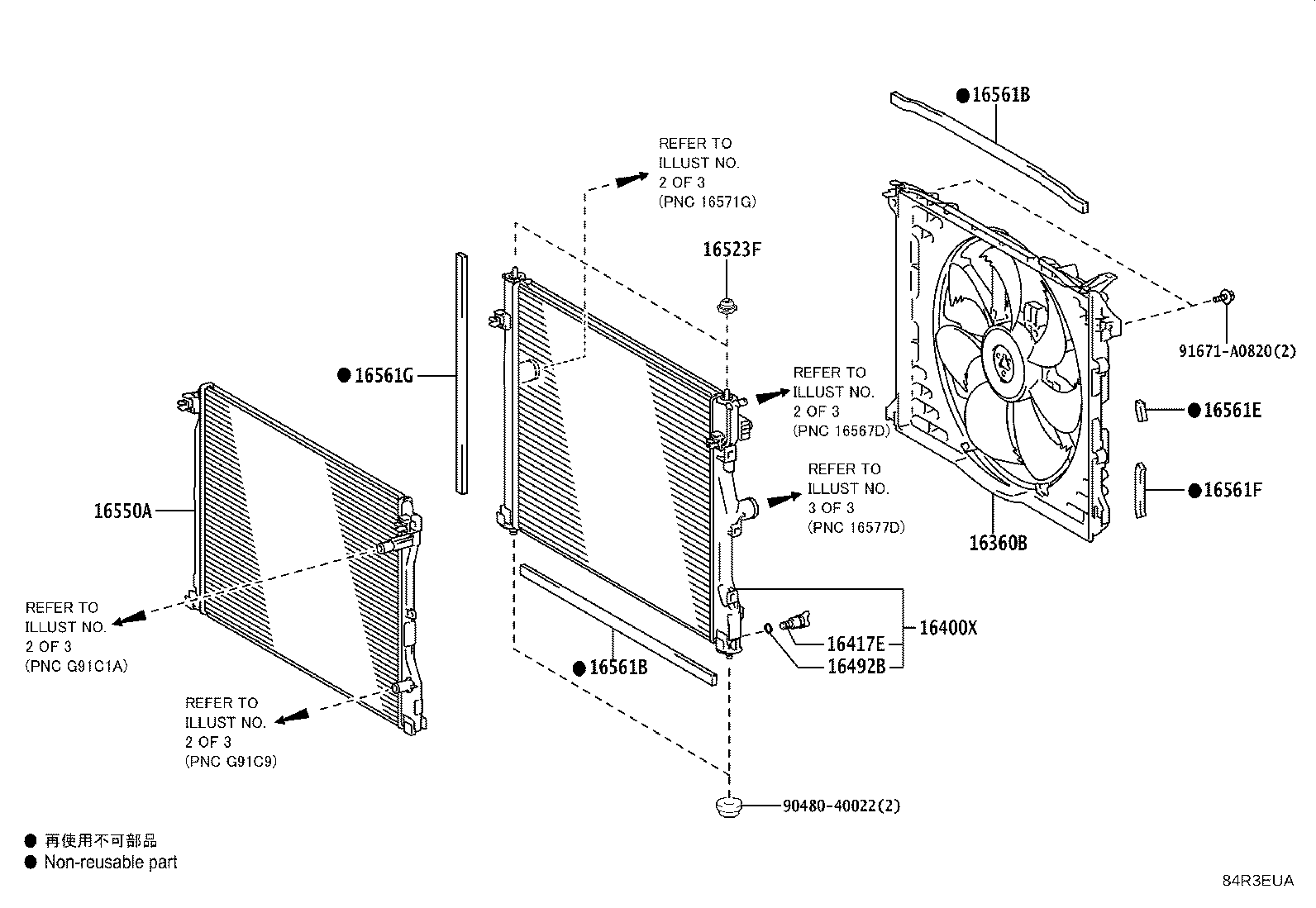

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16360B — Fan Assy, W/Motor | ||||
| 16360-77040 |
Fan Assy, W/Motor
2023-11 → —
|
MOTOR KZSM30 | ¥46,000 | |
| 16400X — Radiator Assy, FC | ||||
| 16400-77110 |
Radiator Assy, FC
2023-11 → —
|
MOTOR KZSM30 | ¥43,000 | |
| 16417E — Cock, Radiator Drain | ||||
| 16417-21280 |
Cock, Radiator Drain
2023-11 → —
|
MOTOR KZSM30 | ¥360 | |
| 16492B — Ring, O(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
Ring, O(FOR RADIATOR DRAIN COCK)
2023-11 → —
|
MOTOR KZSM30 | ¥210 | |
| 16523F — Cushion, Radiator Support | ||||
| 16523-38010 |
Cushion, Radiator Support
2023-11 → —
|
MOTOR KZSM30 | ¥590 | |
| 16550A — Radiator Assy, EV | ||||
| 16550-77010 |
Radiator Assy, EV
2023-11 → —
|
MOTOR KZSM30 | ¥19,800 | |
| 16561B — Seal, Radiator TO Support, NO.1 | ||||
| 16561-31170 |
Seal, Radiator TO Support, NO.1
2023-11 → —
|
MOTOR KZSM30 | ¥230 | |
| 16561E — Seal, Radiator TO Support, NO.2 | ||||
| 16561-31180 |
Seal, Radiator TO Support, NO.2
2023-11 → —
|
MOTOR KZSM30 | ¥80 | |
| 16561F — Seal, Radiator TO Support, NO.3 | ||||
| 16561-31190 |
Seal, Radiator TO Support, NO.3
2023-11 → —
|
MOTOR KZSM30 | ¥80 | |
| 16561G — Seal, Radiator TO Support, NO.4 | ||||
| 16561-77020 |
Seal, Radiator TO Support, NO.4
2023-11 → —
|
MOTOR KZSM30 | ¥200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
