Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

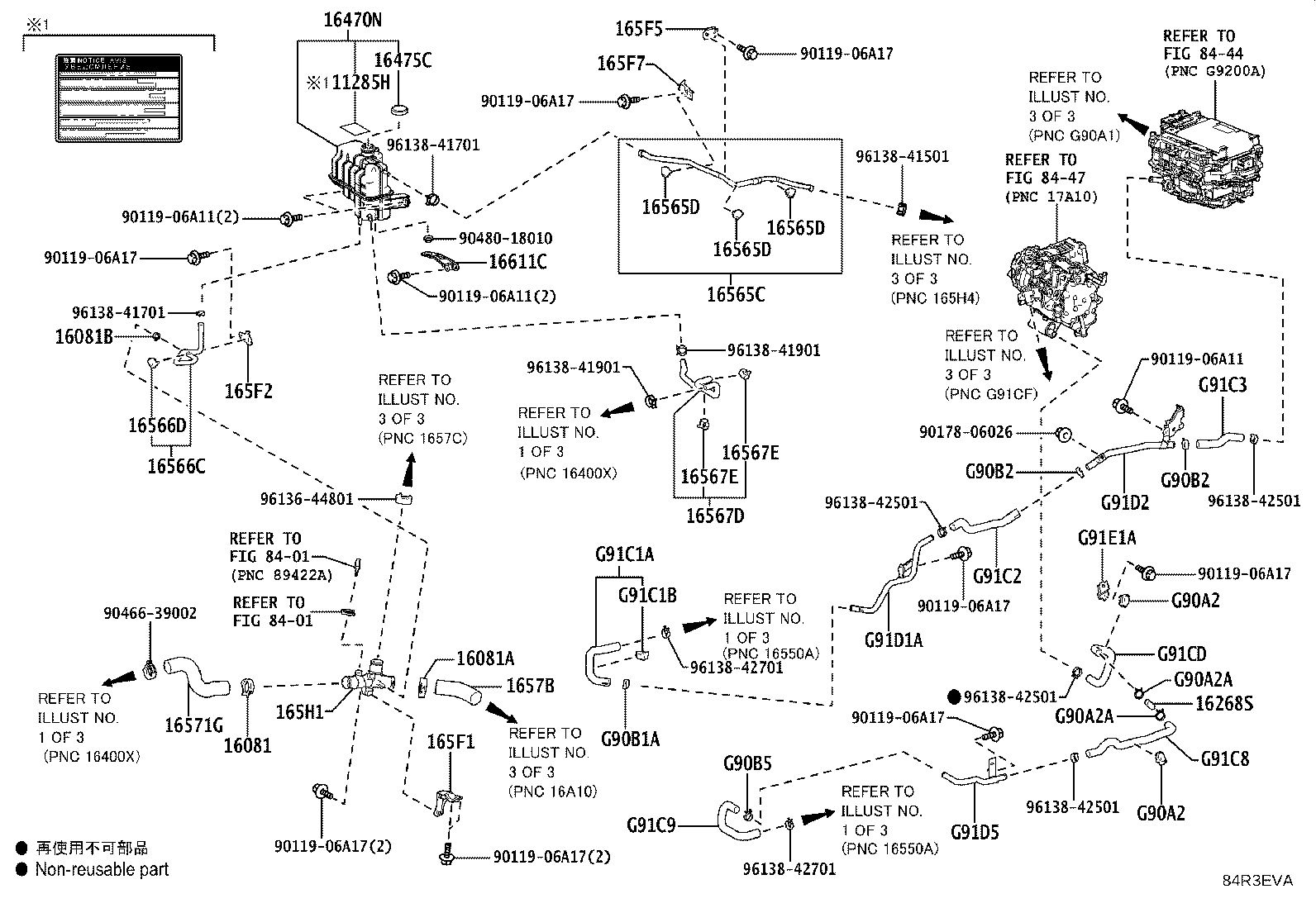

Exploded illustration 84R3EVA 11285H — LABEL, COOLANT SYSTEM NOTICE (1 parts) 16081 — CLIP, NO.1(FOR FC RADIATOR HOSE, NO.1) (1 parts) 16081B — CLIP, NO.3(FOR FC RADIATOR HOSE, NO.1) (1 parts) 16268S — PIPE, WATER BY-PASS (1 parts) 16470N — TANK ASSY, FC RADIATOR RESERVE (1 parts) 16475C — CAP, RESERVE TANK (1 parts) 16566C — HOSE, RESERVE TANK OUTLET (1 parts) 16566D — CLAMP(FOR RESERVE TANK OUTLET) (1 parts) 16567D — HOSE, RADIATOR TO RESERVE TANK (1 parts) 16567E — CLAMP(FOR RADIATOR TO RESERVE TANK HOSE) (1 parts) 16571G — HOSE, FC RADIATOR, NO.1 (1 parts) 16567E — CLAMP(FOR RADIATOR TO RESERVE TANK HOSE) (1 parts) 165F1 — BRACKET, RADIATOR HOSE, NO.1 (1 parts) 165F2 — BRACKET, RADIATOR HOSE, NO.2 (1 parts) 165H1 — PIPE, FC RADIATOR, NO.1 (1 parts) 16611C — BRACKET, RADIATOR RESERVE TANK (1 parts) G90A2 — CLAMP(FOR FC INVERTER COOLING HOSE NO.2) (1 parts) G90A2 — CLAMP(FOR FC INVERTER COOLING HOSE NO.2) (1 parts) G90A2A — CLIP(FOR FC INVERTER COOLING HOSE NO.2) (1 parts) G90A2A — CLIP(FOR FC INVERTER COOLING HOSE NO.2) (1 parts) G90B1A — CLAMP(FOR FC INVERTER COOLING HOSE NO.1) (1 parts) G90B2 — CLIP(FOR FC INVERTER COOLING PIPE NO.2) (1 parts) G90B2 — CLIP(FOR FC INVERTER COOLING PIPE NO.2) (1 parts) G90B5 — CLIP(FOR FC INVERTER COOLING PIPE NO.5) (1 parts) G91C1A — HOSE, FC INVERTER COOLING, NO.1 (1 parts) G91C1B — CLAMP(FOR FC INVERTER COOLING HOSE NO.1) (1 parts) G91C2 — HOSE, FC INVERTER COOLING, NO.2 (1 parts) G91C3 — HOSE, FC INVERTER COOLING, NO.3 (1 parts) G91C8 — HOSE, FC INVERTER COOLING, NO.8 (1 parts) G91C9 — HOSE, FC INVERTER COOLING, NO.9 (1 parts) G91CD — HOSE, FC INVERTER COOLING, NO.13 (1 parts) G91D1A — PIPE, FC INVERTER COOLING, NO.1 (1 parts) G91D2 — PIPE, FC INVERTER COOLING, NO.2 (1 parts) G91D5 — PIPE, FC INVERTER COOLING, NO.5 (1 parts) G91E1A — BRACKET, FC INVERTER COOLING, NO.1 (1 parts) 9011906A11 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9017806026 — not listed in this catalogue 9046639002 — not listed in this catalogue 9048018010 — not listed in this catalogue 9613841901 — not listed in this catalogue 9613841901 — not listed in this catalogue 9613644801 — not listed in this catalogue 9613841701 — not listed in this catalogue 9613842501 — not listed in this catalogue 9613842501 — not listed in this catalogue 9613842501 — not listed in this catalogue 9613842501 — not listed in this catalogue 9613842701 — not listed in this catalogue 9613842701 — not listed in this catalogue 9011906A11 — not listed in this catalogue 9011906A11 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8444 — not listed in this catalogue 8447 — not listed in this catalogue 16565C — HOSE, RESERVE TANK INLET (1 parts) 16565D — CLAMP(FOR RESERVE TANK INLET HOSE) (1 parts) 16565D — CLAMP(FOR RESERVE TANK INLET HOSE) (1 parts) 16565D — CLAMP(FOR RESERVE TANK INLET HOSE) (1 parts) 165F5 — BRACKET, RADIATOR HOSE, NO.5 (1 parts) 165F7 — BRACKET, RADIATOR HOSE, NO.7 (1 parts) 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9613841501 — not listed in this catalogue 9613841701 — not listed in this catalogue 16081A — CLIP, NO.2(FOR FC RADIATOR HOSE, NO.1) (1 parts) 1657B — HOSE, FC RADIATOR, NO.11 (1 parts)
84R3EVA · 43 callouts, 30 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
11285H — Label, Coolant System Notice
11285-77040 Label, Coolant System Notice
2023-11 → —
MOTOR KZSM30 ¥200
16081 — Clip, NO.1(FOR FC RADIATOR HOSE, NO.1)
90466-39002 Clip, NO.1(FOR FC RADIATOR HOSE, NO.1)
2023-11 → —
MOTOR KZSM30 ¥300
16081A — Clip, NO.2(FOR FC RADIATOR HOSE, NO.1)
96136-44801 Clip, NO.2(FOR FC RADIATOR HOSE, NO.1)
2023-11 → —
MOTOR KZSM30 ¥330
16081B — Clip, NO.3(FOR FC RADIATOR HOSE, NO.1)
96138-41501 Clip, NO.3(FOR FC RADIATOR HOSE, NO.1)
2023-11 → —
MOTOR KZSM30 ¥120
16268S — Pipe, Water By-pass
16268-47040 Pipe, Water By-pass
2023-11 → —
MOTOR KZSM30 ¥430
16470N — Tank Assy, FC Radiator Reserve
16470-77080 Tank Assy, FC Radiator Reserve
2023-11 → —
MOTOR KZSM30 ¥7,700
16475C — Cap, Reserve Tank
16475-28140 Cap, Reserve Tank
2023-11 → —
MOTOR KZSM30 ¥1,200
16565C — Hose, Reserve Tank Inlet
16565-77020 Hose, Reserve Tank Inlet
2023-11 → —
MOTOR KZSM30 ¥1,010
16565D — Clamp(FOR RESERVE TANK INLET HOSE)
16581-77050 Clamp(FOR RESERVE TANK INLET HOSE)
2023-11 → —
MOTOR KZSM30 ¥390
16566C — Hose, Reserve Tank Outlet
16566-77010 Hose, Reserve Tank Outlet
2023-11 → —
MOTOR KZSM30 ¥540
16566D — Clamp(FOR RESERVE TANK OUTLET)
16581-77050 Clamp(FOR RESERVE TANK OUTLET)
2023-11 → —
MOTOR KZSM30 ¥390
16567D — Hose, Radiator TO Reserve Tank
16567-77020 Hose, Radiator TO Reserve Tank
2023-11 → —
MOTOR KZSM30 ¥1,010
16567E — Clamp(FOR RADIATOR TO RESERVE TANK HOSE)
16581-77060 Clamp(FOR RADIATOR TO RESERVE TANK HOSE)
2023-11 → —
MOTOR KZSM30 ¥380
16571G — Hose, FC Radiator, NO.1
16571-77060 Hose, FC Radiator, NO.1
2023-11 → —
MOTOR KZSM30 ¥1,080
1657B — Hose, FC Radiator, NO.11
1657B-77010 Hose, FC Radiator, NO.11
2023-11 → —
MOTOR KZSM30 ¥1,010
165F1 — Bracket, Radiator Hose, NO.1
165F1-77010 Bracket, Radiator Hose, NO.1
2023-11 → —
MOTOR KZSM30 ¥1,090
165F2 — Bracket, Radiator Hose, NO.2
165F2-77010 Bracket, Radiator Hose, NO.2
2023-11 → —
MOTOR KZSM30 ¥410
165F5 — Bracket, Radiator Hose, NO.5
165F5-77010 Bracket, Radiator Hose, NO.5
2023-11 → —
MOTOR KZSM30 ¥350
165F7 — Bracket, Radiator Hose, NO.7
165F7-77010 Bracket, Radiator Hose, NO.7
2023-11 → —
MOTOR KZSM30 ¥570
165H1 — Pipe, FC Radiator, NO.1
165H1-77010 Pipe, FC Radiator, NO.1
2023-11 → —
MOTOR KZSM30 ¥3,590
16611C — Bracket, Radiator Reserve Tank
16611-77030 Bracket, Radiator Reserve Tank
2023-11 → —
MOTOR KZSM30 ¥1,980
G90A2 — Clamp(FOR FC INVERTER COOLING HOSE NO.2)
16581-77030 Clamp(FOR FC INVERTER COOLING HOSE NO.2)
2023-11 → —
KZSM30 ¥450
G90A2A — Clip(FOR FC INVERTER COOLING HOSE NO.2)
96138-42501 Clip(FOR FC INVERTER COOLING HOSE NO.2)
2023-11 → —
KZSM30 ¥180
G90B1A — Clamp(FOR FC INVERTER COOLING HOSE NO.1)
96138-42501 Clamp(FOR FC INVERTER COOLING HOSE NO.1)
2023-11 → —
KZSM30 ¥180
G90B2 — Clip(FOR FC INVERTER COOLING PIPE NO.2)
96138-42701 Clip(FOR FC INVERTER COOLING PIPE NO.2)
2023-11 → —
KZSM30 ¥200
G90B5 — Clip(FOR FC INVERTER COOLING PIPE NO.5)
96138-42501 Clip(FOR FC INVERTER COOLING PIPE NO.5)
2023-11 → —
KZSM30 ¥180
G91C1A — Hose, FC Inverter Cooling, NO.1
G91C1-62010 Hose, FC Inverter Cooling, NO.1
2023-11 → —
KZSM30 ¥1,260
G91C1B — Clamp(FOR FC INVERTER COOLING HOSE NO.1)
16581-77030 Clamp(FOR FC INVERTER COOLING HOSE NO.1)
2023-11 → —
KZSM30 ¥450
G91C2 — Hose, FC Inverter Cooling, NO.2
G91C2-62010 Hose, FC Inverter Cooling, NO.2
2023-11 → —
KZSM30 ¥1,150
G91C3 — Hose, FC Inverter Cooling, NO.3
G91C3-62010 Hose, FC Inverter Cooling, NO.3
2023-11 → —
KZSM30 ¥770
G91C8 — Hose, FC Inverter Cooling, NO.8
G91C8-62010 Hose, FC Inverter Cooling, NO.8
2023-11 → —
KZSM30 ¥1,560
G91C9 — Hose, FC Inverter Cooling, NO.9
G91C9-62010 Hose, FC Inverter Cooling, NO.9
2023-11 → —
KZSM30 ¥1,260
G91CD — Hose, FC Inverter Cooling, NO.13
G91CD-62010 Hose, FC Inverter Cooling, NO.13
2023-11 → —
KZSM30 ¥1,260
G91D1A — Pipe, FC Inverter Cooling, NO.1
G91D1-62010 Pipe, FC Inverter Cooling, NO.1
2023-11 → —
KZSM30 ¥3,180
G91D2 — Pipe, FC Inverter Cooling, NO.2
G91D2-62010 Pipe, FC Inverter Cooling, NO.2
2023-11 → —
KZSM30 ¥4,380
G91D5 — Pipe, FC Inverter Cooling, NO.5
G91D5-62010 Pipe, FC Inverter Cooling, NO.5
2023-11 → —
KZSM30 ¥2,590
G91E1A — Bracket, FC Inverter Cooling, NO.1
G91E1-62010 Bracket, FC Inverter Cooling, NO.1
2023-11 → —
KZSM30 ¥390
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
