Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

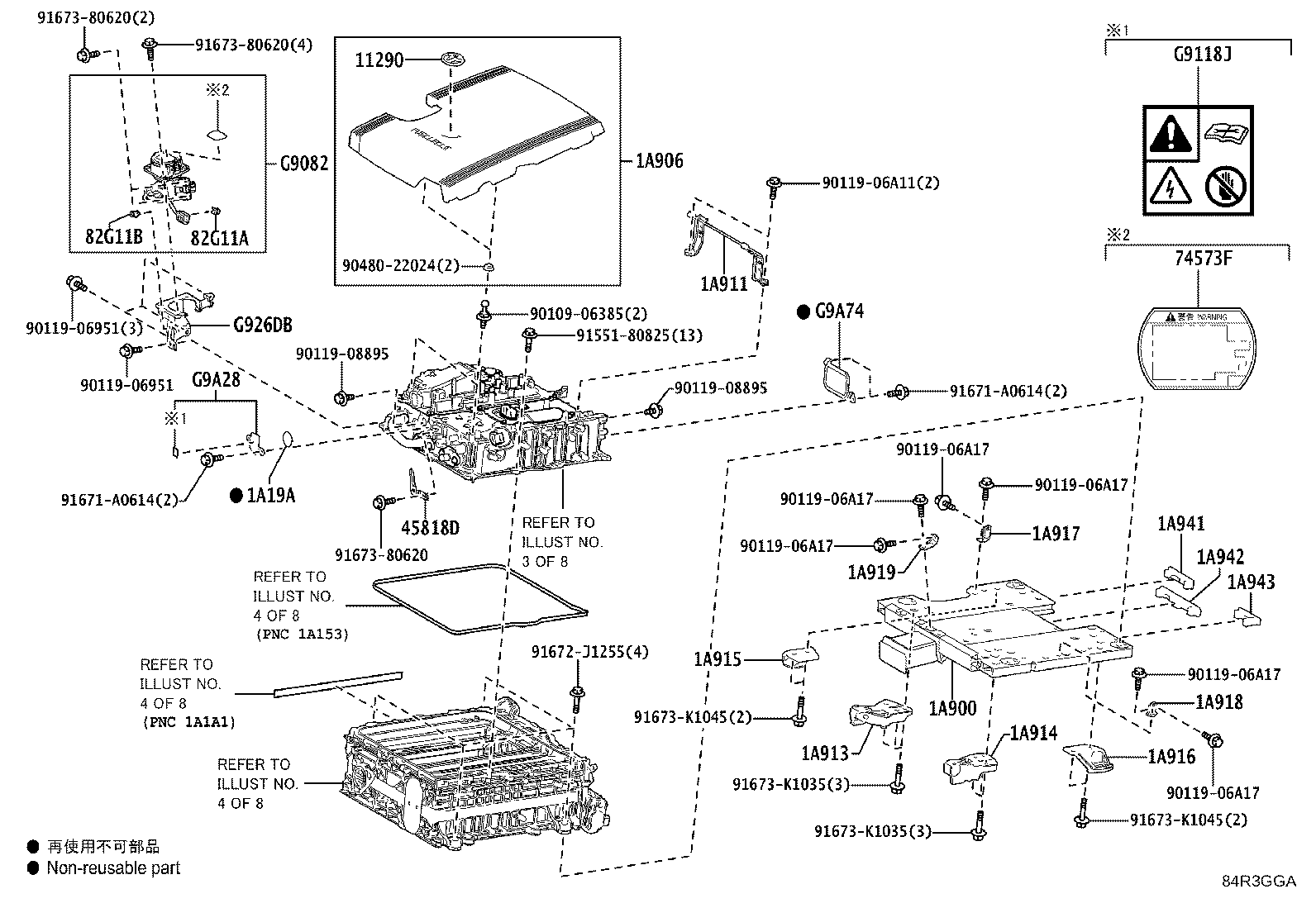

Exploded illustration 84R3GGA 11290 — PLATE ASSY, FC STACK NAME (1 parts) 1A906 — COVER SUB-ASSY, FC STACK (1 parts) 1A911 — BRACKET, FC STACK COVER (1 parts) 45818D — BRACKET, CONNECTOR (1 parts) 74573F — LABEL, EV BATTERY CAUTION (1 parts) 82G11A — CLAMP, WIRING HARNESS, NO.1 (1 parts) 82G11B — CLAMP, WIRING HARNESS, NO.2 (1 parts) G9082 — CABLE, DC EV POWER SUPPLY (1 parts) G9118J — LABEL, UNIT CONTROLLER CAUTION, NO.1 (1 parts) G926DB — BRACKET, EV CHARGE CONNECTOR (1 parts) G9A28 — COVER, FC CONVERTER SERVICE HOLE, FRONT (1 parts) 9010906385 — not listed in this catalogue 9011906951 — not listed in this catalogue 9011906951 — not listed in this catalogue 9011906A11 — not listed in this catalogue 9011908895 — not listed in this catalogue 9011908895 — not listed in this catalogue 9048022024 — not listed in this catalogue 91671A0614 — not listed in this catalogue 91671A0614 — not listed in this catalogue 91672J1255 — not listed in this catalogue 9167380620 — not listed in this catalogue 9167380620 — not listed in this catalogue 9167380620 — not listed in this catalogue 9155180825 — not listed in this catalogue 1A900 — FRAME ASSY, FC STACK (1 parts) 1A913 — BRACKET, FC MOUNTING, FRONT RH (1 parts) 1A914 — BRACKET, FC MOUNTING, FRONT LH (1 parts) 1A915 — BRACKET, FC MOUNTING, REAR RH (1 parts) 1A916 — BRACKET, FC MOUNTING, REAR LH (1 parts) 1A917 — BRACKET, FC STACK FRAME SUPPORT, RH (1 parts) 1A918 — BRACKET, FC STACK FRAME SUPPORT, LH (1 parts) 1A919 — BRACKET, FC STACK FRAME SUPPORT, FRONT (1 parts) 1A941 — COVER, FC STACK FRAME, NO.1 (1 parts) 1A942 — COVER, FC STACK FRAME, NO.2 (1 parts) 1A943 — COVER, FC STACK FRAME, NO.3 (1 parts) 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 91673K1035 — not listed in this catalogue 91673K1035 — not listed in this catalogue 91673K1045 — not listed in this catalogue 91673K1045 — not listed in this catalogue G9A74 — COVER, FC CONVERTER VENT (1 parts) 1A19A — PLUG, FC STACK CASE, NO.1 (1 parts)
84R3GGA · 24 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
24 parts on this figure
Part number Description Fitment Price
11290 — Plate Assy, FC Stack Name
1A90B-77010 Plate Assy, FC Stack Name
2023-11 → —
MOTOR KZSM30 —
1A19A — Plug, FC Stack Case, NO.1
1A19A-77020 Plug, FC Stack Case, NO.1
2023-11 → —
MOTOR KZSM30 ¥130
1A900 — Frame Assy, FC Stack
1A900-77010 Frame Assy, FC Stack
2023-11 → —
MOTOR KZSM30 ¥50,700
1A906 — Cover Sub-assy, FC Stack
1A906-77021 Cover Sub-assy, FC Stack
2023-11 → —
MOTOR KZSM30 ¥9,300
1A911 — Bracket, FC Stack Cover
1A911-77010 Bracket, FC Stack Cover
2023-11 → —
MOTOR KZSM30 ¥820
1A913 — Bracket, FC Mounting, Front RH
1A913-77010 Bracket, FC Mounting, Front RH
2023-11 → —
MOTOR KZSM30 ¥6,400
1A914 — Bracket, FC Mounting, Front LH
1A914-77010 Bracket, FC Mounting, Front LH
2023-11 → —
MOTOR KZSM30 ¥5,100
1A915 — Bracket, FC Mounting, Rear RH
1A915-77020 Bracket, FC Mounting, Rear RH
2023-11 → —
MOTOR KZSM30 ¥3,450
1A916 — Bracket, FC Mounting, Rear LH
1A916-77010 Bracket, FC Mounting, Rear LH
2023-11 → —
MOTOR KZSM30 ¥3,180
1A917 — Bracket, FC Stack Frame Support, RH
1A917-77010 Bracket, FC Stack Frame Support, RH
2023-11 → —
MOTOR KZSM30 ¥270
1A918 — Bracket, FC Stack Frame Support, LH
1A918-77010 Bracket, FC Stack Frame Support, LH
2023-11 → —
MOTOR KZSM30 ¥260
1A919 — Bracket, FC Stack Frame Support, Front
1A919-77010 Bracket, FC Stack Frame Support, Front
2023-11 → —
MOTOR KZSM30 ¥270
1A941 — Cover, FC Stack Frame, NO.1
1A941-77010 Cover, FC Stack Frame, NO.1
2023-11 → —
MOTOR KZSM30 ¥670
1A942 — Cover, FC Stack Frame, NO.2
1A942-77010 Cover, FC Stack Frame, NO.2
2023-11 → —
MOTOR KZSM30 ¥800
1A943 — Cover, FC Stack Frame, NO.3
1A943-77010 Cover, FC Stack Frame, NO.3
2023-11 → —
MOTOR KZSM30 ¥670
45818D — Bracket, Connector
45818-62010 Bracket, Connector
2023-11 → —
KZSM30 ¥230
74573F — Label, EV Battery Caution
74573-62020 Label, EV Battery Caution
2023-11 → —
KZSM30 ¥140
82G11A — Clamp, Wiring Harness, NO.1
82711-1E320 Clamp, Wiring Harness, NO.1
2023-11 → —
KZSM30 ¥70
82G11B — Clamp, Wiring Harness, NO.2
82711-60320 Clamp, Wiring Harness, NO.2
2023-11 → —
KZSM30 ¥120
G9082 — Cable, DC EV Power Supply
G9082-62010 Cable, DC EV Power Supply
2023-11 → —
KZSM30 ¥40,900
G9118J — Label, Unit Controller Caution, NO.1
G9118-62011 Label, Unit Controller Caution, NO.1
2023-11 → —
KZSM30 ¥110
G926DB — Bracket, EV Charge Connector
G926D-62020 Bracket, EV Charge Connector
2023-11 → —
KZSM30 ¥1,480
G9A28 — Cover, FC Converter Service Hole, Front
G9A28-62021 Cover, FC Converter Service Hole, Front
2023-11 → —
KZSM30 ¥300
G9A74 — Cover, FC Converter Vent
G9A74-62011 Cover, FC Converter Vent
2023-11 → —
KZSM30 ¥2,750
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
