Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

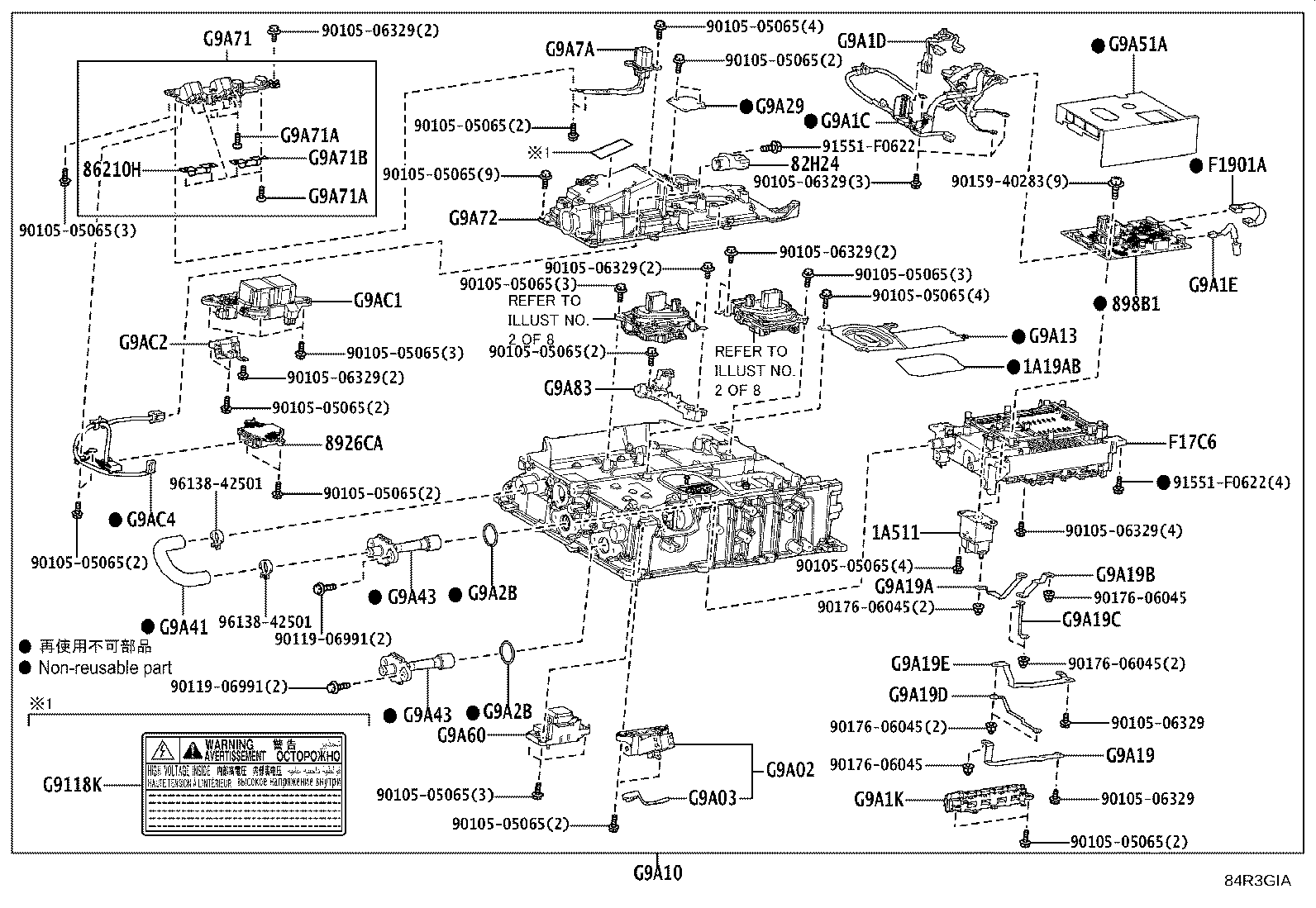

Exploded illustration 84R3GIA G9A29 — COVER, FC CONVERTER SERVICE HOLE, REAR (1 parts) G9A7A — CABLE, AIR CONDITIONER COMPRESSOR (1 parts) G9A10 — CONVERTER ASSY, FC (1 parts) G9A1K — SENSOR, FC CONVERTER CURRENT (1 parts) G9A60 — JUNCTION ASSY, FC PRECHARGE (1 parts) 1A511 — RELAY, FC STACK MAIN (1 parts) G9A19A — PLATE, FC CONVERTER BUS-BAR, NO.2 (1 parts) G9A19B — PLATE, FC CONVERTER BUS-BAR, NO.3 (1 parts) G9A19C — PLATE, FC CONVERTER BUS-BAR, NO.4 (1 parts) G9A19 — PLATE, FC CONVERTER BUS-BAR, NO.1 (1 parts) G9A72 — COVER, FC INVERTER INPUT JUNCTION (1 parts) G9A71A — TERMINAL, FEMALE (1 parts) G9A71B — FUSE, HIGH VOLTAGE (1 parts) G9118K — LABEL, UNIT CONTROLLER CAUTION, NO.2 (1 parts) 9010505065 — not listed in this catalogue 9017606045 — not listed in this catalogue G9A19D — PLATE, FC CONVERTER BUS-BAR, NO.5 (1 parts) G9A19E — PLATE, FC CONVERTER BUS-BAR, NO.6 (1 parts) 9017606045 — not listed in this catalogue 9017606045 — not listed in this catalogue 9017606045 — not listed in this catalogue 9017606045 — not listed in this catalogue 9010506329 — not listed in this catalogue 9010506329 — not listed in this catalogue 9010505065 — not listed in this catalogue 9010505065 — not listed in this catalogue 9010506329 — not listed in this catalogue 9010505065 — not listed in this catalogue 9010506329 — not listed in this catalogue 9010505065 — not listed in this catalogue 9010505065 — not listed in this catalogue 9010505065 — not listed in this catalogue 9010505065 — not listed in this catalogue 9010505065 — not listed in this catalogue G9A41 — HOSE, FC CONVERTER COOLING (1 parts) G9A43 — PIPE, FC CONVERTER COOLING (1 parts) 9011906991 — not listed in this catalogue 9011906991 — not listed in this catalogue G9A43 — PIPE, FC CONVERTER COOLING (1 parts) G9A2B — GASKET, FC CONVERTER, REAR (1 parts) 9613842501 — not listed in this catalogue 9613842501 — not listed in this catalogue G9A02 — TERMINAL SUB-ASSY, FC CONVERTER POWER OUTLET (1 parts) G9A03 — WIRE SUB-ASSY, FC CONVERTER POWER OUTLET (1 parts) 9010505065 — not listed in this catalogue 9010506329 — not listed in this catalogue G9A71A — TERMINAL, FEMALE (1 parts) 86210H — FUSE, HIGH VOLTAGE (1 parts) G9A71 — TERMINAL, FC INVERTER INPUT (1 parts) G9A2B — GASKET, FC CONVERTER, REAR (1 parts) G9A83 — TERMINAL, FC WATER & HYDROGEN PUMP INVERTER (1 parts) 9010505065 — not listed in this catalogue 898B1 — COMPUTER, FC DC CONVERTER CONTROL (1 parts) G9A1C — WIRE, FC CONVERTER, NO.1 (1 parts) G9A1D — WIRE, FC CONVERTER, NO.2 (1 parts) F17C6 — TRANSISTOR, FC CONVERTER POWER MODULE (1 parts) 8926CA — SENSOR, DC VOLTAGE (1 parts) G9AC1 — BLOCK, FC EXTERNAL POWER SUPPLY JUNCTION (1 parts) G9AC4 — WIRE, FC EXTERNAL POWER SUPPLY (1 parts) 82H24 — CONNECTOR, WIRING HARNESS (1 parts) G9A51A — SHEET, FC CONVERTER, NO.2 (1 parts) G9A1E — WIRE, FC CONVERTER, NO.3 (1 parts) F1901A — WIRE SUB-ASSY, COMPUTER (1 parts) 9010506329 — not listed in this catalogue 91551F0622 — not listed in this catalogue 9010506329 — not listed in this catalogue 91551F0622 — not listed in this catalogue 9010505065 — not listed in this catalogue 9010505065 — not listed in this catalogue 9010505065 — not listed in this catalogue 9010505065 — not listed in this catalogue 9010505065 — not listed in this catalogue 9010506329 — not listed in this catalogue 1A19AB — PLUG, FC STACK CASE, NO.3 (1 parts) G9A13 — COVER, FC CONVERTER SIGNAL CONNECTOR (1 parts) 9010505065 — not listed in this catalogue 9015940283 — not listed in this catalogue G9AC2 — TERMINAL, FC EXTERNAL POWER SUPPLY (1 parts)
84R3GIA · 41 callouts, 37 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
1A19AB — Plug, FC Stack Case, NO.3
1A19A-77030 Plug, FC Stack Case, NO.3
2023-11 → —
MOTOR KZSM30 ¥510
1A511 — Relay, FC Stack Main
1A511-77050 Relay, FC Stack Main
2023-11 → —
MOTOR KZSM30 ¥6,000
82H24 — Connector, Wiring Harness
82824-62180 Connector, Wiring Harness
2023-11 → —
KZSM30 ¥550
86210H — Fuse, High Voltage
90982-11050 Fuse, High Voltage
2023-11 → —
KZSM30 ¥1,710
8926CA — Sensor, DC Voltage
8926C-62010 Sensor, DC Voltage
2023-11 → —
KZSM30 ¥10,300
898B1 — Computer, FC DC Converter Control
898B1-30010 Computer, FC DC Converter Control
2023-11 → —
KZSM30 ¥25,600
F17C6 — Transistor, FC Converter Power Module
F17C6-62040 Transistor, FC Converter Power Module
2023-11 → —
KZSM30 ¥68,600
F1901A — Wire Sub-assy, Computer
F1901-62010 Wire Sub-assy, Computer
2023-11 → —
KZSM30 ¥930
G9118K — Label, Unit Controller Caution, NO.2
G9118-76010 Label, Unit Controller Caution, NO.2
2023-11 → —
KZSM30 ¥140
G9A02 — Terminal Sub-assy, FC Converter Power Outlet
G9A02-62020 Terminal Sub-assy, FC Converter Power Outlet
2023-11 → —
KZSM30 ¥9,400
G9A03 — Wire Sub-assy, FC Converter Power Outlet
G9A03-62020 Wire Sub-assy, FC Converter Power Outlet
2023-11 → —
KZSM30 ¥320
G9A10 — Converter Assy, FC
G9A10-62050 Converter Assy, FC
2023-11 → —
KZSM30 ¥130,000
G9A13 — Cover, FC Converter Signal Connector
G9A13-62020 Cover, FC Converter Signal Connector
2023-11 → —
KZSM30 ¥1,620
G9A19 — Plate, FC Converter Bus-bar, NO.1
G9A19-62010 Plate, FC Converter Bus-bar, NO.1
2023-11 → —
KZSM30 ¥2,620
G9A19A — Plate, FC Converter Bus-bar, NO.2
G9A19-62020 Plate, FC Converter Bus-bar, NO.2
2023-11 → —
KZSM30 ¥2,460
G9A19B — Plate, FC Converter Bus-bar, NO.3
G9A19-62030 Plate, FC Converter Bus-bar, NO.3
2023-11 → —
KZSM30 ¥2,230
G9A19C — Plate, FC Converter Bus-bar, NO.4
G9A19-62040 Plate, FC Converter Bus-bar, NO.4
2023-11 → —
KZSM30 ¥2,370
G9A19D — Plate, FC Converter Bus-bar, NO.5
G9A19-62050 Plate, FC Converter Bus-bar, NO.5
2023-11 → —
KZSM30 ¥2,280
G9A19E — Plate, FC Converter Bus-bar, NO.6
G9A19-62060 Plate, FC Converter Bus-bar, NO.6
2023-11 → —
KZSM30 ¥2,370
G9A1C — Wire, FC Converter, NO.1
G9A1C-62020 Wire, FC Converter, NO.1
2023-11 → —
KZSM30 ¥4,560
G9A1D — Wire, FC Converter, NO.2
G9A1D-62020 Wire, FC Converter, NO.2
2023-11 → —
KZSM30 ¥920
G9A1E — Wire, FC Converter, NO.3
G9A1E-62010 Wire, FC Converter, NO.3
2023-11 → —
KZSM30 ¥430
G9A1K — Sensor, FC Converter Current
G9A1K-62020 Sensor, FC Converter Current
2023-11 → —
KZSM30 ¥10,200
G9A29 — Cover, FC Converter Service Hole, Rear
G9A29-62020 Cover, FC Converter Service Hole, Rear
2023-11 → —
KZSM30 ¥510
G9A2B — Gasket, FC Converter, Rear
G9A2B-62020 Gasket, FC Converter, Rear
2023-11 → —
KZSM30 ¥340
G9A41 — Hose, FC Converter Cooling
G9A41-62020 Hose, FC Converter Cooling
2023-11 → —
KZSM30 ¥900
G9A43 — Pipe, FC Converter Cooling
G9A43-62020 Pipe, FC Converter Cooling
2023-11 → —
KZSM30 ¥3,180
G9A51A — Sheet, FC Converter, NO.2
G9A51-62010 Sheet, FC Converter, NO.2
2023-11 → —
KZSM30 ¥910
G9A60 — Junction Assy, FC Precharge
G9A60-62010 Junction Assy, FC Precharge
2023-11 → —
KZSM30 ¥11,500
G9A71 — Terminal, FC Inverter Input
G9A71-62020 Terminal, FC Inverter Input
2023-11 → —
KZSM30 ¥13,800
G9A71A — Terminal, Female
90980-09E10 Terminal, Female
2023-11 → —
KZSM30 ¥60
G9A71B — Fuse, High Voltage
90982-11050 Fuse, High Voltage
2023-11 → —
KZSM30 ¥1,710
G9A72 — Cover, FC Inverter Input Junction
G9A72-62031 Cover, FC Inverter Input Junction
2023-11 → —
KZSM30 ¥25,900
G9A7A — Cable, Air Conditioner Compressor
G9A7A-62010 Cable, Air Conditioner Compressor
2023-11 → —
KZSM30 ¥1,650
G9A83 — Terminal, FC Water & Hydrogen Pump Inverter
G9A83-62010 Terminal, FC Water & Hydrogen Pump Inverter
2023-11 → —
KZSM30 ¥10,100
G9AC1 — Block, FC External Power Supply Junction
G9AC1-62010 Block, FC External Power Supply Junction
2023-11 → —
KZSM30 ¥69,100
G9AC2 — Terminal, FC External Power Supply
G9AC2-62010 Terminal, FC External Power Supply
2023-11 → —
KZSM30 ¥10,100
G9AC4 — Wire, FC External Power Supply
G9AC4-62010 Wire, FC External Power Supply
2023-11 → —
KZSM30 ¥2,210
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
