Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

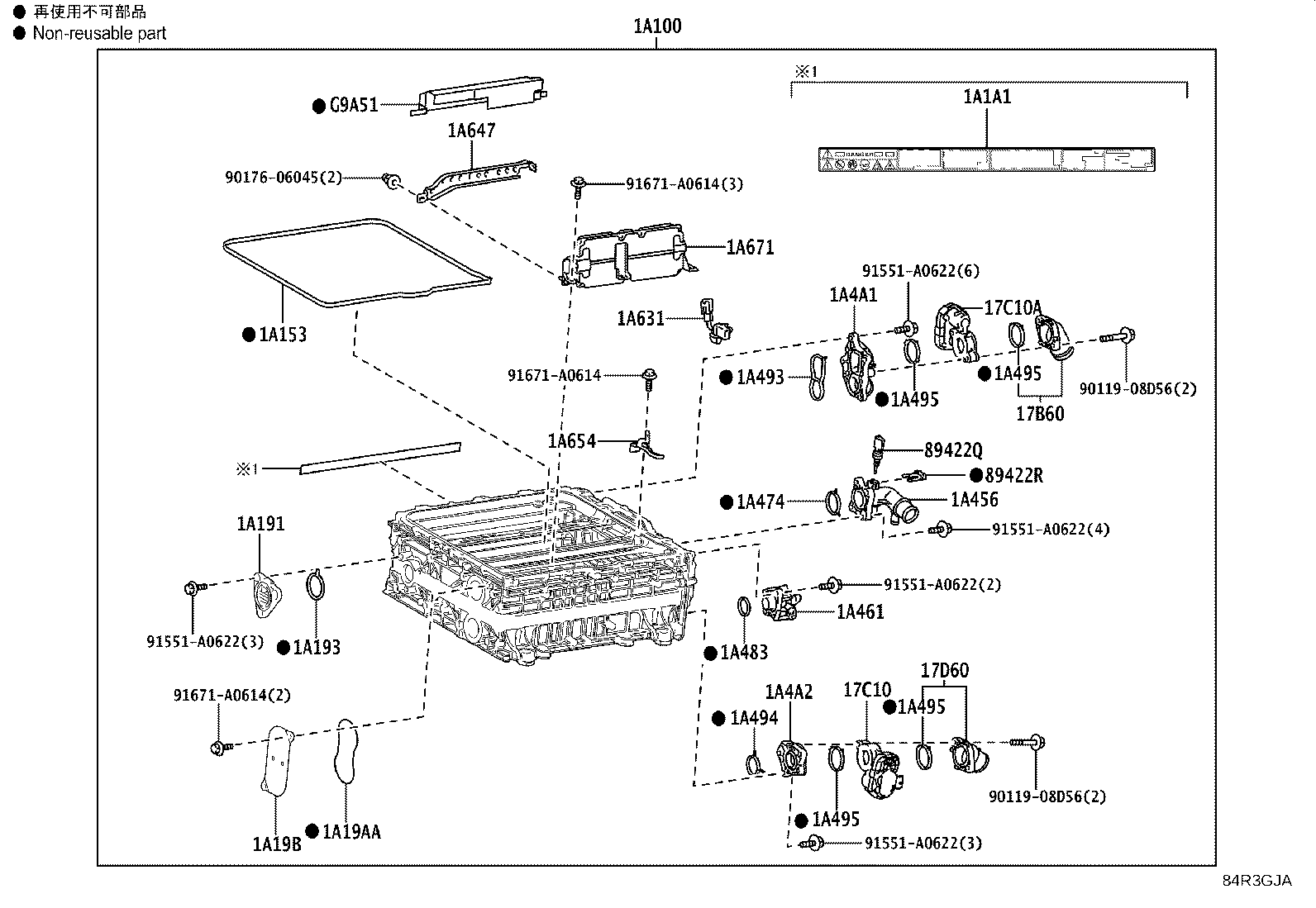

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17B60 — Pipe Assy, FC Stack Air Inlet | ||||
| 17B60-77021 |
Pipe Assy, FC Stack Air Inlet
2023-11 → —
|
MOTOR KZSM30 | ¥2,600 | |
| 17C10 — Regulator Assy, FC Air Pressure | ||||
| 17C10-77030 |
Regulator Assy, FC Air Pressure
2023-11 → —
|
MOTOR KZSM30 | ¥11,900 | |
| 17C10A — Regulator Assy, FC Air Pressure, NO.2 | ||||
| 17C10-76010 |
Regulator Assy, FC Air Pressure, NO.2
2023-11 → —
|
MOTOR KZSM30 | ¥22,400 | |
| 17D60 — Pipe Assy, FC Stack Air Outlet | ||||
| 17D60-77030 |
Pipe Assy, FC Stack Air Outlet
2023-11 → —
|
MOTOR KZSM30 | ¥2,380 | |
| 1A100 — Stack Assy, FC | ||||
| 1A1H0-77012 |
Stack Assy, FC
2023-11 → 2024-04
ended
|
MOTOR KZSM30 | ¥3,927,000 | |
| 1A1H0-77013 |
Stack Assy, FC
2024-04 → —
|
MOTOR KZSM30 | ¥3,570,000 | |
| 1A153 — Gasket, FC Stack Case, Upper | ||||
| 1A153-77010 |
Gasket, FC Stack Case, Upper
2023-11 → —
|
MOTOR KZSM30 | ¥980 | |
| 1A191 — Cover, FC Stack Ventilation | ||||
| 1A191-77040 |
Cover, FC Stack Ventilation
2023-11 → —
|
MOTOR KZSM30 | ¥1,310 | |
| 1A193 — Gasket, FC Stack Ventilation | ||||
| 1A193-77050 |
Gasket, FC Stack Ventilation
2023-11 → —
|
MOTOR KZSM30 | ¥240 | |
| 1A19AA — Plug, FC Stack Case, NO.2 | ||||
| 1A19A-77010 |
Plug, FC Stack Case, NO.2
2023-11 → —
|
MOTOR KZSM30 | ¥450 | |
| 1A19B — Cover, FC Stack Case Plug | ||||
| 1A19B-77010 |
Cover, FC Stack Case Plug
2023-11 → —
|
MOTOR KZSM30 | ¥850 | |
| 1A1A1 — Label, FC Stack Caution, NO.1 | ||||
| 1A1A1-77032 |
Label, FC Stack Caution, NO.1
2023-11 → —
|
MOTOR KZSM30 | ¥210 | |
| 1A456 — Outlet, FC Stack Water | ||||
| 1A456-77020 |
Outlet, FC Stack Water
2023-11 → —
|
MOTOR KZSM30 | ¥2,170 | |
| 1A461 — Inlet, FC Stack Hydrogen | ||||
| 1A461-77020 |
Inlet, FC Stack Hydrogen
2023-11 → —
|
MOTOR KZSM30 | ¥1,690 | |
| 1A474 — Gasket, FC Stack Water Outlet, NO.2 | ||||
| 1A474-77010 |
Gasket, FC Stack Water Outlet, NO.2
2023-11 → —
|
MOTOR KZSM30 | ¥240 | |
| 1A483 — Gasket, FC Stack Hydrogen Inlet, NO.2 | ||||
| 1A483-77040 |
Gasket, FC Stack Hydrogen Inlet, NO.2
2023-11 → —
|
MOTOR KZSM30 | ¥240 | |
| 1A493 — Gasket, FC Stack Air Inlet, NO.2 | ||||
| 1A493-77030 |
Gasket, FC Stack Air Inlet, NO.2
2023-11 → —
|
MOTOR KZSM30 | ¥240 | |
| 1A494 — Gasket, FC Stack Air Outlet, NO.2 | ||||
| 1A494-77020 |
Gasket, FC Stack Air Outlet, NO.2
2023-11 → —
|
MOTOR KZSM30 | ¥240 | |
| 1A495 — Gasket, FC Stack Air, NO.5 | ||||
| 1A495-77020 |
Gasket, FC Stack Air, NO.5
2023-11 → —
|
MOTOR KZSM30 | ¥240 | |
| 1A4A1 — Inlet, FC Stack Air And Water | ||||
| 1A4A1-77010 |
Inlet, FC Stack Air And Water
2023-11 → —
|
MOTOR KZSM30 | ¥2,690 | |
| 1A4A2 — Outlet, FC Stack Air | ||||
| 1A4A2-77011 |
Outlet, FC Stack Air
2023-11 → —
|
MOTOR KZSM30 | ¥1,690 | |
| 1A631 — Wire, FC Stack Monitor | ||||
| 1A631-77040 |
Wire, FC Stack Monitor
2023-11 → —
|
MOTOR KZSM30 | ¥360 | |
| 1A647 — Protector, FC Stack Wiring Harness | ||||
| 1A647-77020 |
Protector, FC Stack Wiring Harness
2023-11 → —
|
MOTOR KZSM30 | ¥610 | |
| 1A654 — Bracket, FC Stack Monitor Wire | ||||
| 1A654-77040 |
Bracket, FC Stack Monitor Wire
2023-11 → —
|
MOTOR KZSM30 | — | |
| 1A671 — Sensor, FC Stack Voltage | ||||
| 1A671-77020 |
Sensor, FC Stack Voltage
2023-11 → —
|
MOTOR KZSM30 | ¥58,700 | |
| 89422Q — Sensor, Water Temperature | ||||
| 89422-33040 |
Sensor, Water Temperature
2023-11 → —
|
KZSM30 | ¥2,410 | |
| 89422R — Clip, Water Temperature Sensor | ||||
| 77241-33011 |
Clip, Water Temperature Sensor
2023-11 → —
|
KZSM30 | ¥80 | |
| G9A51 — Sheet, FC Converter | ||||
| G9A51-62030 |
Sheet, FC Converter
2023-11 → —
|
KZSM30 | ¥1,930 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
