Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

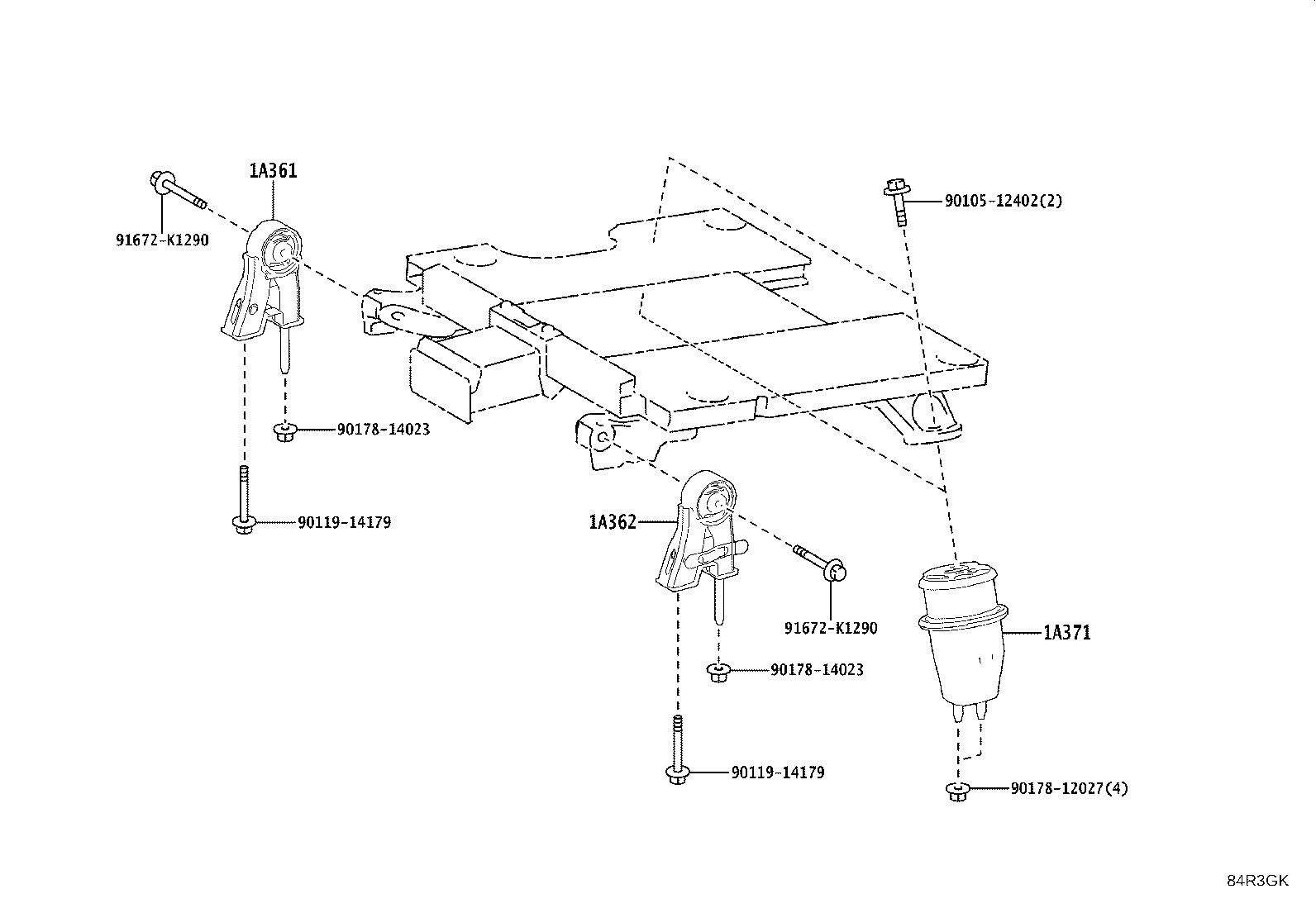

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 1A361 — Insulator, FC Mounting, Front RH | ||||
| 1A361-77010 |
Insulator, FC Mounting, Front RH
2023-11 → —
|
MOTOR KZSM30 | ¥6,100 | |
| 1A362 — Insulator, FC Mounting, Front LH | ||||
| 1A362-77010 |
Insulator, FC Mounting, Front LH
2023-11 → —
|
MOTOR KZSM30 | ¥6,100 | |
| 1A371 — Insulator, FC Mounting, Rear | ||||
| 1A371-77010 |
Insulator, FC Mounting, Rear
2023-11 → —
|
MOTOR KZSM30 | ¥5,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
