Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

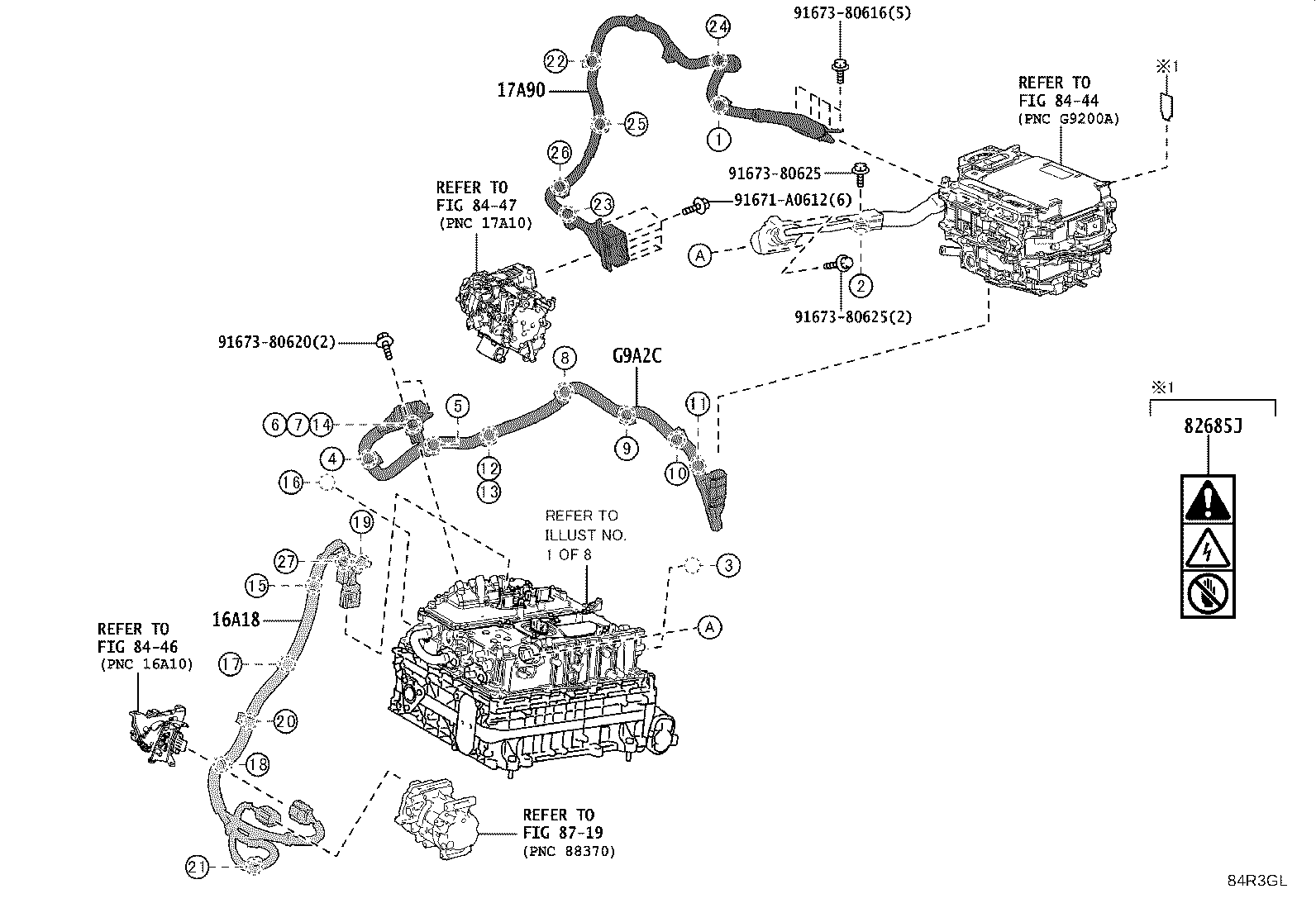

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16A18 — Cable, FC Cooling Water Pump | ||||
| 16A18-77011 |
Cable, FC Cooling Water Pump
2023-11 → —
|
MOTOR KZSM30 | ¥10,100 | |
| 17A90 — Cable Assy, FC Air Compressor Motor | ||||
| 17A90-77030 |
Cable Assy, FC Air Compressor Motor
2023-11 → —
|
MOTOR KZSM30 | ¥15,600 | |
| 82685J — Plate, Caution | ||||
| 82685-76021 |
Plate, Caution
2023-11 → —
|
KZSM30 | ¥160 | |
| G9A2C — Cable, FC Junction | ||||
| G9A2C-62010 |
Cable, FC Junction
2023-11 → —
|
KZSM30 | ¥17,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
