Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

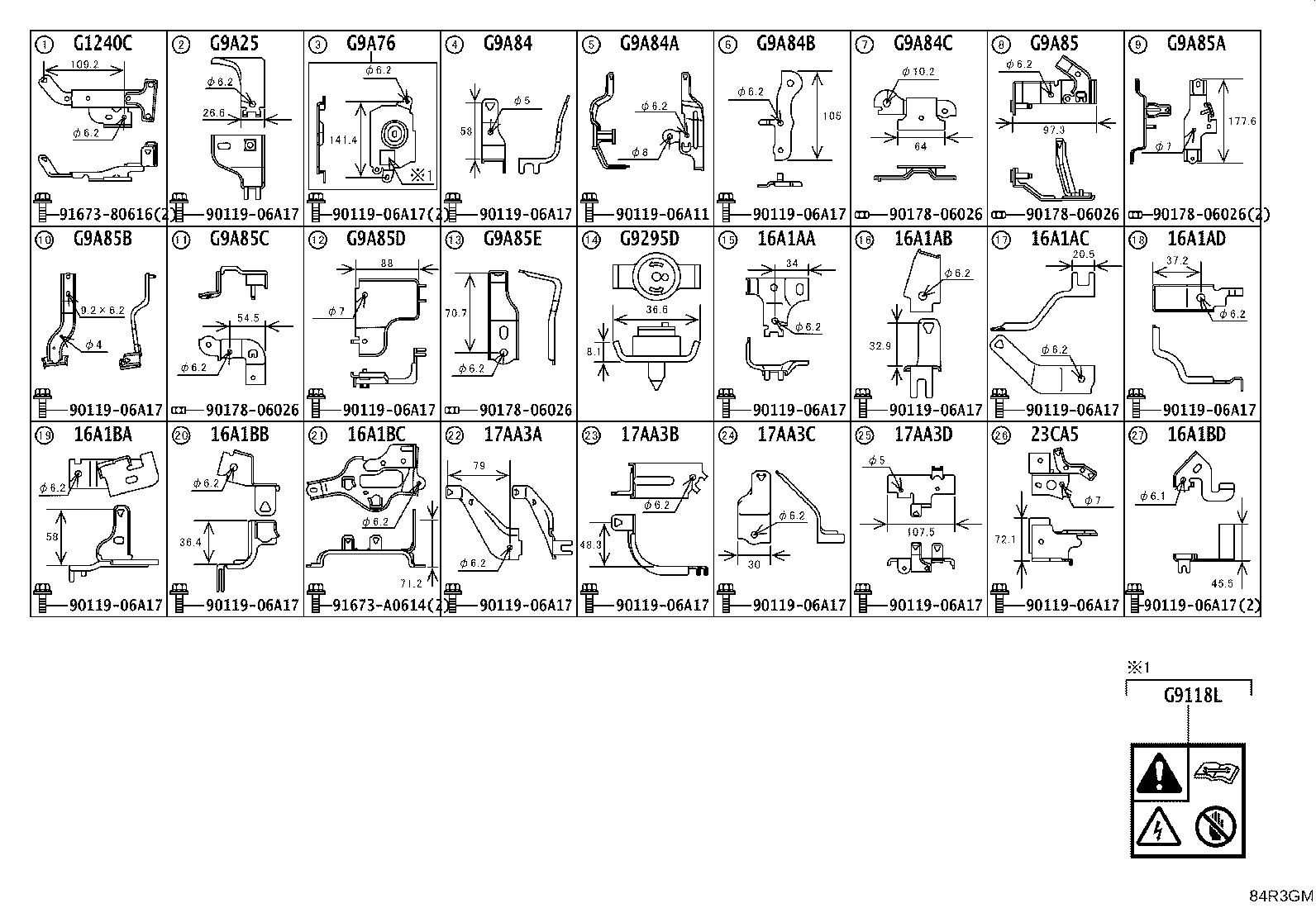

Exploded illustration 84R3GM 9017806026 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9167380616 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A11 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9017806026 — not listed in this catalogue 9017806026 — not listed in this catalogue 9017806026 — not listed in this catalogue 9017806026 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue G9118L — LABEL, UNIT CONTROLLER CAUTION, NO.3 (1 parts) G1240C — BRACKET ASSY, INVERTER MOTOR CABLE (1 parts) G9A25 — BRACKET, FC CONVERTER POWER OUTLET (1 parts) G9A76 — PLATE, FC CONVERTER SUPPORT (1 parts) G9A84 — BRACKET, FC JUNCTION CABLE, NO.1 (1 parts) G9A84A — BRACKET, FC JUNCTION CABLE, NO.2 (1 parts) G9A84B — BRACKET, FC JUNCTION CABLE, NO.3 (1 parts) G9A84C — BRACKET, FC JUNCTION CABLE, NO.4 (1 parts) G9A85 — BRACKET, FC JUNCTION CABLE RH STEERING, NO.1 (1 parts) G9A85A — BRACKET, FC JUNCTION CABLE RH STEERING, NO.2 (1 parts) G9A85B — BRACKET, FC JUNCTION CABLE RH STEERING, NO.3 (1 parts) G9A85C — BRACKET, FC JUNCTION CABLE RH STEERING, NO.4 (1 parts) G9A85D — BRACKET, FC JUNCTION CABLE RH STEERING, NO.5 (1 parts) G9A85E — BRACKET, FC JUNCTION CABLE RH STEERING, NO.6 (1 parts) G9295D — STRIKER, BATTERY COVER LOCK (1 parts) 16A1AA — BRACKET, FC WATER & HYDROGEN PUMP CABLE, NO.1 (1 parts) 16A1AB — BRACKET, FC WATER & HYDROGEN PUMP CABLE, NO.2 (1 parts) 16A1AC — BRACKET, FC WATER & HYDROGEN PUMP CABLE, NO.3 (1 parts) 16A1BA — BRACKET, FC COOLING WATER PUMP CABLE, NO.1 (1 parts) 16A1BB — BRACKET, FC COOLING WATER PUMP CABLE, NO.2 (1 parts) 17AA3A — BRACKET, FC AIR COMPRESSOR CABLE, NO.1 (1 parts) 17AA3B — BRACKET, FC AIR COMPRESSOR CABLE, NO.2 (1 parts) 17AA3C — BRACKET, FC AIR COMPRESSOR CABLE, NO.3 (1 parts) 17AA3D — BRACKET, FC AIR COMPRESSOR CABLE, NO.4 (1 parts) 23CA5 — BRACKET, HYDROGEN PUMP CABLE (1 parts) 9011906A17 — not listed in this catalogue 16A1BD — BRACKET, FC COOLING WATER PUMP CABLE, NO.4 (1 parts) 16A1AD — BRACKET, FC WATER & HYDROGEN PUMP CABLE, NO.4 (1 parts) 9011906A17 — not listed in this catalogue 91673A0614 — not listed in this catalogue 16A1BC — BRACKET, FC COOLING WATER PUMP CABLE, NO.3 (1 parts)
84R3GM · 28 callouts, 26 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
28 parts on this figure
Part number Description Fitment Price
16A1AA — Bracket, FC Water & Hydrogen Pump Cable, NO.1
16A1A-77021 Bracket, FC Water & Hydrogen Pump Cable, NO.1
2023-11 → —
MOTOR KZSM30 ¥260
16A1AB — Bracket, FC Water & Hydrogen Pump Cable, NO.2
16A1A-77030 Bracket, FC Water & Hydrogen Pump Cable, NO.2
2023-11 → —
MOTOR KZSM30 ¥230
16A1AC — Bracket, FC Water & Hydrogen Pump Cable, NO.3
16A1A-77040 Bracket, FC Water & Hydrogen Pump Cable, NO.3
2023-11 → —
MOTOR KZSM30 ¥280
16A1AD — Bracket, FC Water & Hydrogen Pump Cable, NO.4
16A1A-77050 Bracket, FC Water & Hydrogen Pump Cable, NO.4
2023-11 → —
MOTOR KZSM30 ¥250
16A1BA — Bracket, FC Cooling Water Pump Cable, NO.1
16A1B-77020 Bracket, FC Cooling Water Pump Cable, NO.1
2023-11 → —
MOTOR KZSM30 ¥480
16A1BB — Bracket, FC Cooling Water Pump Cable, NO.2
16A1B-77030 Bracket, FC Cooling Water Pump Cable, NO.2
2023-11 → —
MOTOR KZSM30 ¥260
16A1BC — Bracket, FC Cooling Water Pump Cable, NO.3
16A1B-77041 Bracket, FC Cooling Water Pump Cable, NO.3
2023-11 → —
MOTOR KZSM30 ¥970
16A1BD — Bracket, FC Cooling Water Pump Cable, NO.4
16A1B-77050 Bracket, FC Cooling Water Pump Cable, NO.4
2023-11 → —
MOTOR KZSM30 ¥310
17AA3A — Bracket, FC Air Compressor Cable, NO.1
17AA3-77020 Bracket, FC Air Compressor Cable, NO.1
2023-11 → —
MOTOR KZSM30 ¥380
17AA3B — Bracket, FC Air Compressor Cable, NO.2
17AA3-77030 Bracket, FC Air Compressor Cable, NO.2
2023-11 → —
MOTOR KZSM30 ¥730
17AA3C — Bracket, FC Air Compressor Cable, NO.3
17AA3-77050 Bracket, FC Air Compressor Cable, NO.3
2023-11 → —
MOTOR KZSM30 ¥250
17AA3D — Bracket, FC Air Compressor Cable, NO.4
17AA3-77060 Bracket, FC Air Compressor Cable, NO.4
2023-11 → —
MOTOR KZSM30 ¥650
23CA5 — Bracket, Hydrogen Pump Cable
23CA5-77050 Bracket, Hydrogen Pump Cable
2023-11 → —
MOTOR KZSM30 ¥1,000
G1240C — Bracket Assy, Inverter Motor Cable
G1240-62010 Bracket Assy, Inverter Motor Cable
2023-11 → —
KZSM30 ¥850
G9118L — Label, Unit Controller Caution, NO.3
G9118-62011 Label, Unit Controller Caution, NO.3
2023-11 → —
KZSM30 ¥110
G9295D — Striker, Battery Cover Lock
G9295-30020 Striker, Battery Cover Lock
2023-11 → —
KZSM30 ¥200
G9A25 — Bracket, FC Converter Power Outlet
G9A25-62020 Bracket, FC Converter Power Outlet
2023-11 → —
KZSM30 ¥550
G9A76 — Plate, FC Converter Support
G9A76-62021 Plate, FC Converter Support
2023-11 → —
KZSM30 ¥850
G9A84 — Bracket, FC Junction Cable, NO.1
G9A84-62010 Bracket, FC Junction Cable, NO.1
2023-11 → —
KZSM30 ¥270
G9A84A — Bracket, FC Junction Cable, NO.2
G9A84-62020 Bracket, FC Junction Cable, NO.2
2023-11 → —
KZSM30 ¥610
G9A84B — Bracket, FC Junction Cable, NO.3
G9A84-62030 Bracket, FC Junction Cable, NO.3
2023-11 → —
KZSM30 ¥260
G9A84C — Bracket, FC Junction Cable, NO.4
G9A84-62040 Bracket, FC Junction Cable, NO.4
2023-11 → —
KZSM30 ¥540
G9A85 — Bracket, FC Junction Cable RH Steering, NO.1
G9A85-62010 Bracket, FC Junction Cable RH Steering, NO.1
2023-11 → —
KZSM30 ¥660
G9A85A — Bracket, FC Junction Cable RH Steering, NO.2
G9A85-62020 Bracket, FC Junction Cable RH Steering, NO.2
2023-11 → —
KZSM30 ¥850
G9A85B — Bracket, FC Junction Cable RH Steering, NO.3
G9A85-62030 Bracket, FC Junction Cable RH Steering, NO.3
2023-11 → —
KZSM30 ¥880
G9A85C — Bracket, FC Junction Cable RH Steering, NO.4
G9A85-62040 Bracket, FC Junction Cable RH Steering, NO.4
2023-11 → —
KZSM30 ¥660
G9A85D — Bracket, FC Junction Cable RH Steering, NO.5
G9A85-62050 Bracket, FC Junction Cable RH Steering, NO.5
2023-11 → —
KZSM30 ¥900
G9A85E — Bracket, FC Junction Cable RH Steering, NO.6
G9A85-62060 Bracket, FC Junction Cable RH Steering, NO.6
2023-11 → —
KZSM30 ¥270
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
