Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

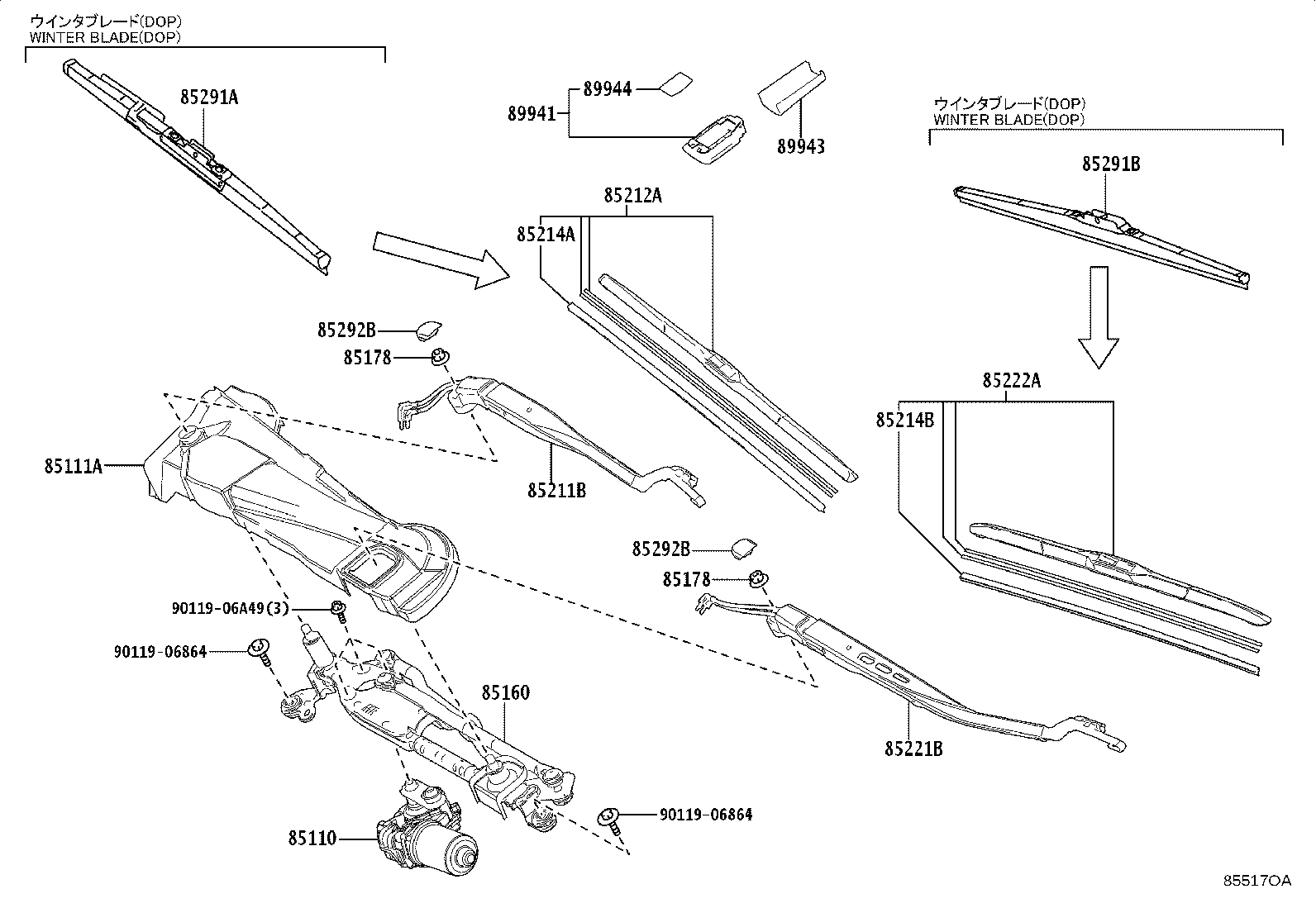

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85110 — Motor Assy, Windshield Wiper | ||||
| 85110-62100 |
Motor Assy, Windshield Wiper
2023-11 → —
|
AZSH32,KZSM30 | ¥19,200 | |
| 85111A — Cover, Front Wiper Motor | ||||
| 85111-62030 |
Cover, Front Wiper Motor
2023-11 → —
|
AZSH32,KZSM30 | ¥2,160 | |
| 85160 — Link Assy, Windshield Wiper | ||||
| 85150-62090 |
Link Assy, Windshield Wiper
2023-11 → —
|
AZSH32,KZSM30 | ¥7,100 | |
| 85178 — Nut (FOR FRONT WIPER ARM SETTING) | ||||
| 90182-10006 |
Nut (FOR FRONT WIPER ARM SETTING)
2023-11 → —
|
AZSH32,KZSM30 | ¥80 | |
| 85211B — Arm, Front Wiper, RH | ||||
| 85211-30880 |
Arm, Front Wiper, RH
2023-11 → —
|
AZSH32,KZSM30 | ¥3,060 | |
| 85212A — Blade, FR Wiper, RH | ||||
| 85212-62030 |
Blade, FR Wiper, RH
2023-11 → —
|
AZSH32,KZSM30 | ¥4,290 | |
| 85214A — Rubber, Wiper, RH | ||||
| 85214-52110 |
Rubber, Wiper, RH
2023-11 → —
|
AZSH32,KZSM30 | ¥900 | |
| 85214B — Rubber, Wiper, LH | ||||
| 85214-60120 |
Rubber, Wiper, LH
2023-11 → —
|
AZSH32,KZSM30 | ¥800 | |
| 85221B — Arm, Front Wiper, LH | ||||
| 85221-30770 |
Arm, Front Wiper, LH
2023-11 → —
|
AZSH32,KZSM30 | ¥3,600 | |
| 85222A — Blade, FR Wiper, LH | ||||
| 85222-50130 |
Blade, FR Wiper, LH
2023-11 → —
|
AZSH32,KZSM30 | ¥2,640 | |
| 85291A — Blade, Front Wiper, Winter, RH | ||||
| 85291-50170 note |
Blade, Front Wiper, Winter, RH
2023-11 → —
|
AZSH32,KZSM30 | ¥7,200 | |
| 85291B — Blade, Front Wiper, Winter, LH | ||||
| 85291-33060 note |
Blade, Front Wiper, Winter, LH
2023-11 → —
|
AZSH32,KZSM30 | ¥4,800 | |
| 85292B — Cap, Front Wiper Arm Head | ||||
| 85292-13010 |
Cap, Front Wiper Arm Head
2023-11 → —
|
AZSH32,KZSM30 | ¥250 | |
| 89941 — Sensor, Rain | ||||
| 89941-78020 |
Sensor, Rain
2023-11 → —
|
AZSH32,KZSM30 | ¥12,500 | |
| 89943 — Cover, Rain Sensor | ||||
| 89943-76020 |
Cover, Rain Sensor
2023-11 → —
|
AZSH32,KZSM30 | ¥380 | |
| 89944 — Tape, Rain Sensor | ||||
| 89944-42020 |
Tape, Rain Sensor
2023-11 → —
|
AZSH32,KZSM30 | ¥170 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
