Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

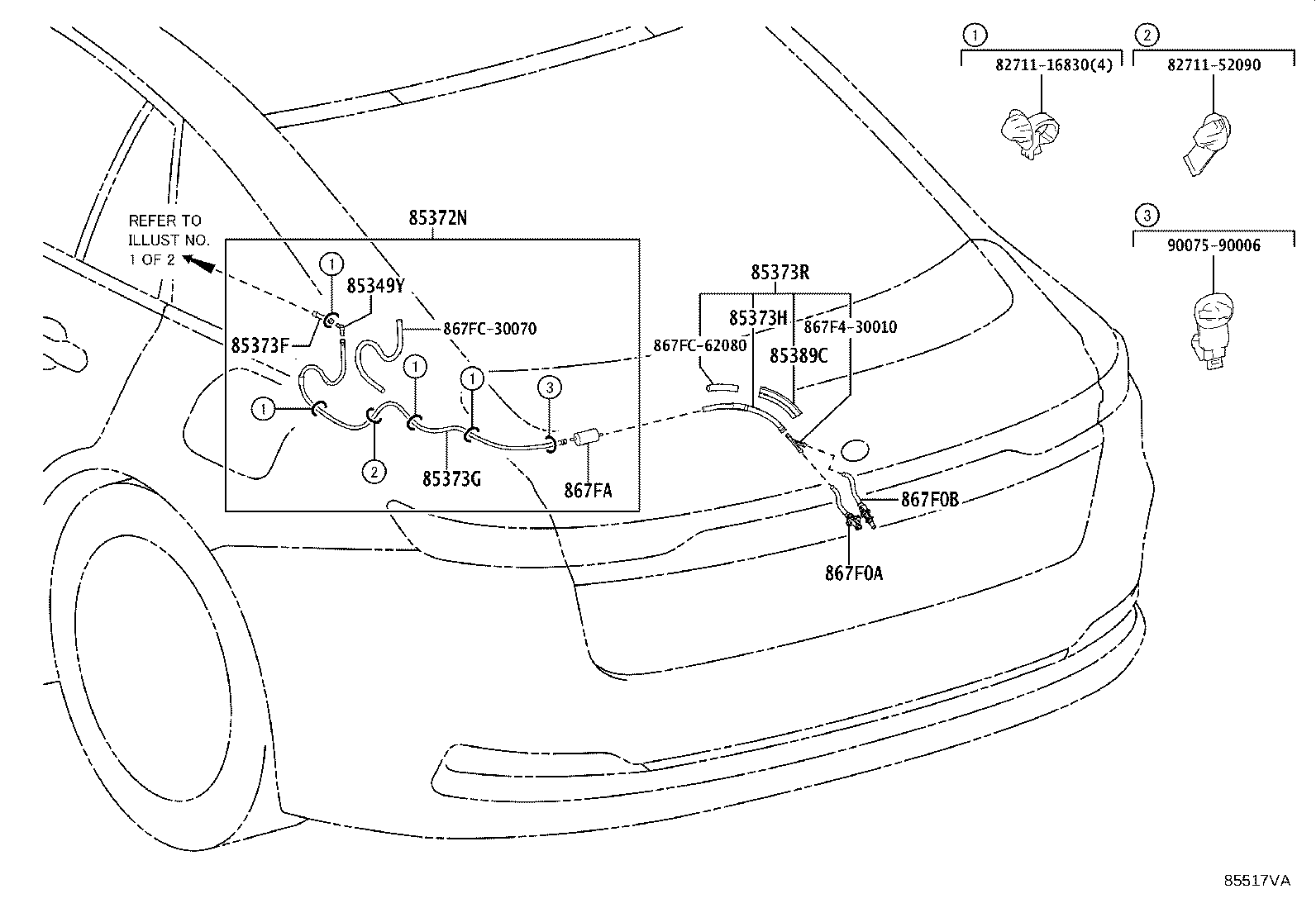

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85349Y — Joint, Rear Washer Elbow, NO.5 | ||||
| 85355-20200 |
Joint, Rear Washer Elbow, NO.5
2023-11 → —
|
AZSH32,KZSM30 | — | |
| 85372N — Hose, Rear Washer (FROM JOINT TO JOINT), NO.1 | ||||
| 867F2-30070 |
Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2023-11 → —
|
AZSH32,KZSM30 | ¥1,900 | |
| 85373F — Hose, Rear Washer(FROM JOINT TO JOINT), NO.8 | ||||
| 90075-15114 note |
Hose, Rear Washer(FROM JOINT TO JOINT), NO.8
2023-11 → —
|
AZSH32,KZSM30 | ¥140 | |
| 85373G — Hose, Rear Washer(FROM JOINT TO JOINT), NO.9 | ||||
| 90075-15147 note |
Hose, Rear Washer(FROM JOINT TO JOINT), NO.9
2023-11 → —
|
AZSH32,KZSM30 | ¥1,000 | |
| 85373H — Hose, Rear Washer(FROM JOINT TO JOINT), NO.10 | ||||
| 90075-15149 note |
Hose, Rear Washer(FROM JOINT TO JOINT), NO.10
2023-11 → —
|
AZSH32,KZSM30 | ¥200 | |
| 85373R — Hose, Rear Washer (FROM JOINT TO NOZZLE) | ||||
| 867F2-30060 |
Hose, Rear Washer (FROM JOINT TO NOZZLE)
2023-11 → —
|
AZSH32,KZSM30 | ¥590 | |
| 85389C — Protector, Washer | ||||
| 85277-50040 |
Protector, Washer
2023-11 → —
|
AZSH32,KZSM30 | ¥610 | |
| 867F0A — Nozzle Assy, Camera Cleaner, NO.1 | ||||
| 867F0-30010 |
Nozzle Assy, Camera Cleaner, NO.1
2023-11 → —
|
AZSH32,KZSM30 | ¥1,280 | |
| 867F0B — Nozzle Assy, Camera Cleaner, NO.2 | ||||
| 867F0-30020 |
Nozzle Assy, Camera Cleaner, NO.2
2023-11 → —
|
AZSH32,KZSM30 | ¥1,280 | |
| 867FA — Filter, Cleaner Hose | ||||
| 867F7-30010 |
Filter, Cleaner Hose
2023-11 → —
|
AZSH32,KZSM30 | ¥360 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
